Features
☑ 700 W continuous program power capacity
☑ 80° nominal coverage
☑ 47 - 18000 Hz response
☑ 98 dB sensitivity
☑ 50.5 mm (2”) HF unit exit diameter
☑ Single Ferrite magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure

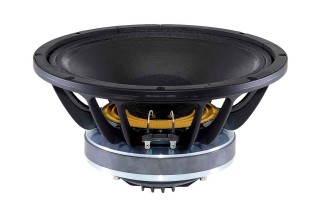

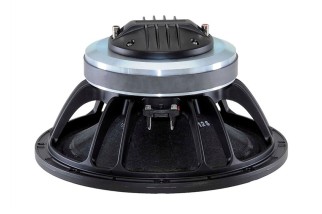

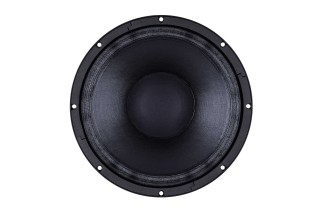

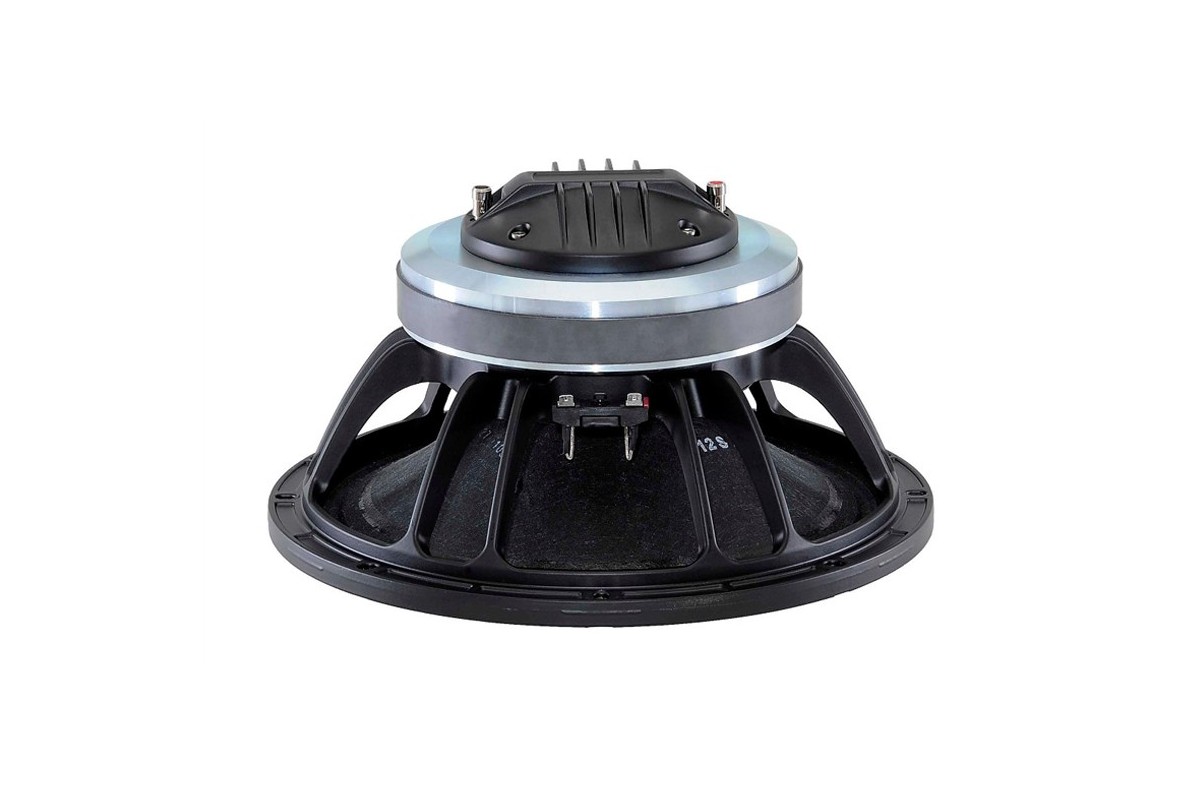

B&C 12FCX76
391,62 €
Tasse incluse
Features
☑ 700 W continuous program power capacity
☑ 80° nominal coverage
☑ 47 - 18000 Hz response
☑ 98 dB sensitivity
☑ 50.5 mm (2”) HF unit exit diameter
☑ Single Ferrite magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
close
| General Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12.0 in) |
| Nominal Impedance | 8 Ω |

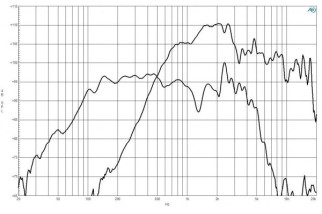

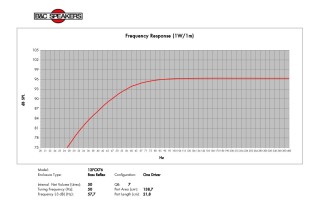

| Frequency Response | 47 – 18000 Hz |

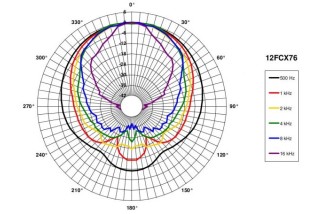

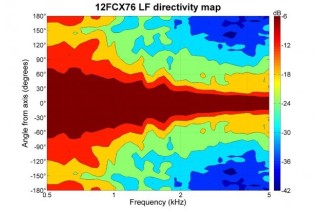

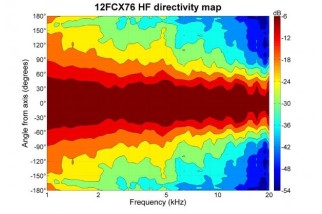

| Dispersion Angle | 80° |
| Sensitivity (1W/1m) | 98 dB |
| Magnet Material | Ferrite (Single magnet) |
| Low Frequency Unit (LF) | |
| Minimum Impedance | 6.3 Ω |
| Nominal Power Handling (AES) | 350 W |
| Continuous Power Handling (Program) | 700 W |
| Voice Coil Diameter | 76 mm (3.0 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1.0 T |
| Cone Treatment | WP (Waterproof - Front side) |
| High Frequency Unit (HF) | |
| Minimum Impedance | 7.8 Ω |
| Nominal Power Handling (AES) | 80 W |
| Continuous Power Handling (Program) | 160 W |
| Sensitivity | 106 dB |
| Voice Coil Diameter | 75 mm (3.0 in) |
| Winding Material | Aluminium |
| Diaphragm Material | Titanium |
| Flux Density | 1.6 T |
| Recommended Crossover | 1.2 kHz (min. 12 dB/oct slope) |
| Thiele-Small Parameters | |
| Fs | 47 Hz |
| Re | 5.3 Ω |
| Qes | 0.35 |
| Qms | 11.0 |
| Qts | 0.34 |
| Vas | 82.0 dm³ (2.89 ft³) |
| Sd | 522.0 cm² (80.9 in²) |
| η₀ | 2.3 % |
| Xvar | ± 5.0 mm |
| Mms | 54.0 g |
| Bl | 15.6 Txm |
| Le | 1.3 mH |
| EBP | 134 Hz |

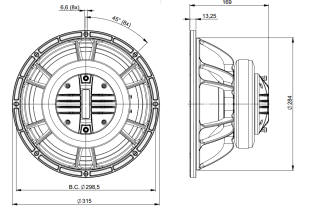

| Mounting and Shipping Info | |
| Parameter | Value |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 298 mm (11.7 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 169 mm (6.65 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 8.25 kg (18.19 lb) |
| Shipping Units | 1 |
| Shipping Weight | 9.55 kg (21.05 lb) |
| Shipping Box | 380x380x240 mm (15.0x15.0x9.4 in) |
ALT12FCX768
Scheda dati
- Pollici
- 12
Nuovo
