Features
700 W continuous program power capacity
80° nominal coverage
47 - 18000 Hz response
98 dB sensitivity
50.5 mm (2”) HF unit exit diameter
Single Ferrite magnet assembly
Aluminium demodulating ring allows a very low distortion figure

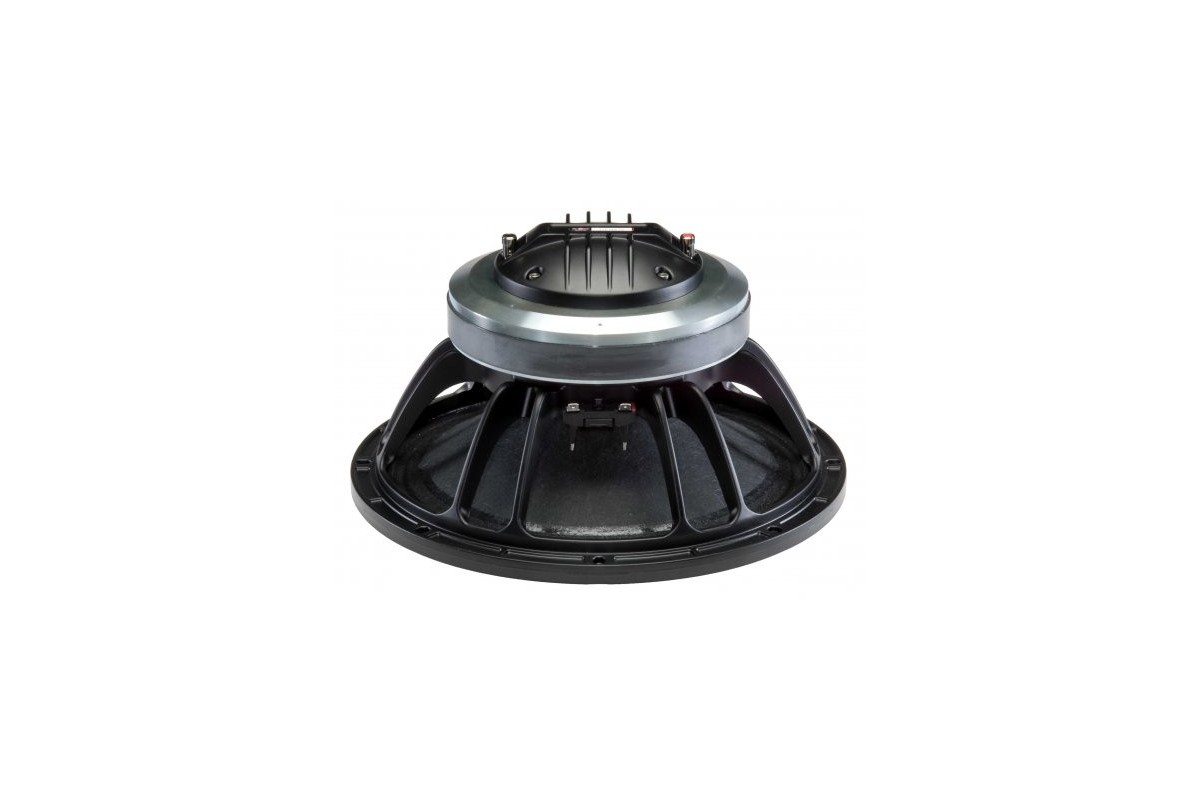

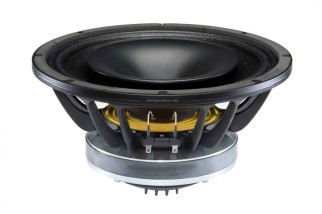

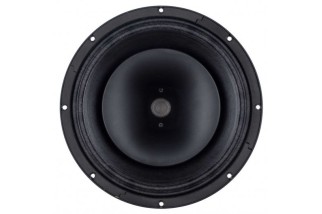

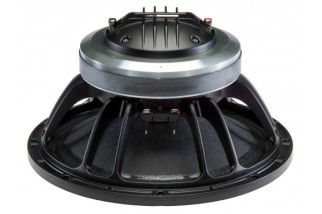

B&C 12FHX76
398,94 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
700 W continuous program power capacity
80° nominal coverage
47 - 18000 Hz response
98 dB sensitivity
50.5 mm (2”) HF unit exit diameter
Single Ferrite magnet assembly
Aluminium demodulating ring allows a very low distortion figure
close
| General | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Frequency Range | 47 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 700 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 98 dB |
| Winding Material | Copper |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1 T |
| Specifications HF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.6 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 106 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Ferrite |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 47 Hz |
| Qes | 0.35 |
| Qts | 0.34 |
| Sd | 522 cm² (80.9 in²) |
| Xvar | 5 mm |
| Bl | 15.6 Tm |
| EBP | 134 Hz |
| Re | 5.3 Ω |
| Qms | 11 |
| Vas | 82 dm³ (2.98 ft³) |
| η0 | 2.3 % |
| Mms | 54 g |
| Le | 1.3 mH |
| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.5 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 298 mm (11.7 in) |
| Depth | 169 mm (6.65 in) |
| Net Weight | 8.25 kg (18.19 lb) |
| Shipping Weight | 9.55 kg (21.05 lb) |
ALT12FHX768
Scheda dati
- Pollici
- 12
Nuovo
