Features
500 W continuous program power capacity
60° nominal coverage
54 - 18000 Hz response
96 dB sensitivity
Single Neodymium magnet assembly
Aluminum demodulating ring for very low distortion

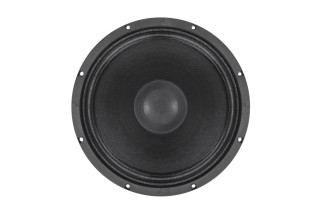

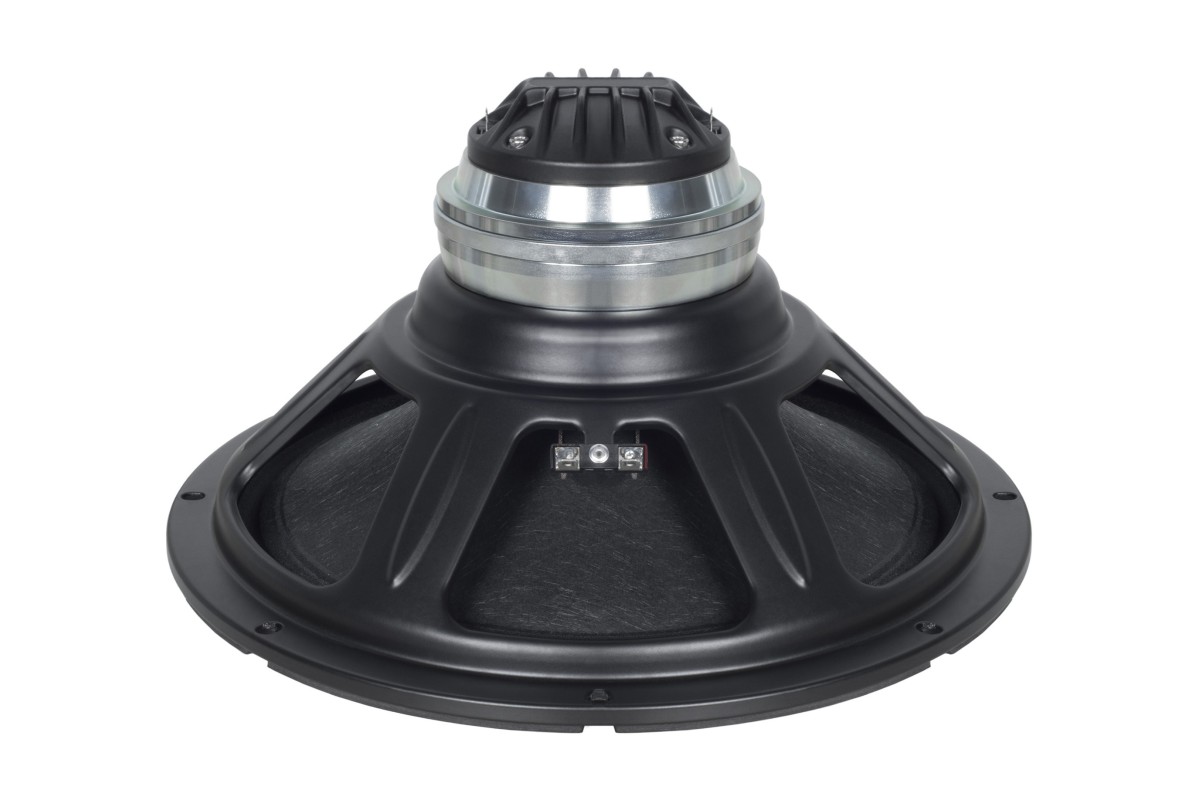

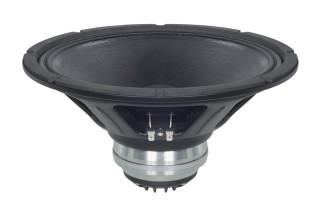

B&C 12CLX64
296,46 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
500 W continuous program power capacity
60° nominal coverage
54 - 18000 Hz response
96 dB sensitivity
Single Neodymium magnet assembly
Aluminum demodulating ring for very low distortion
close
| General | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Frequency Range | 54 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

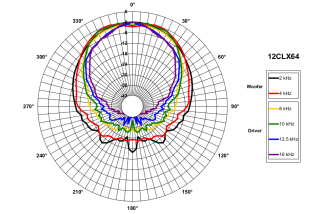

| Dispersion Angle | 60 ° |
| Specifications LF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.6 Ω |
| Continuous Power Handling | 500 W |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 96 dB |
| Winding Material | Copper |
| Winding Depth | 14.5 mm (0.57 in) |
| Flux Density | 0.9 T |
| Specifications HF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 140 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminum |
| Flux Density | 1.6 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 70 W |
| Sensitivity | 106 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | HT Polymer |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 54 Hz |
| Qes | 0.61 |
| Qts | 0.57 |
| Sd | 522 cm² (80.91 in²) |
| Xvar | 5.5 mm |
| Bl | 11.86 Tm |
| EBP | 89 Hz |
| Re | 5.6 Ω |
| Qms | 10.1 |
| Vas | 74 dm³ (2.61 ft³) |
| η0 | 1.82 % |
| Mms | 45.3 g |
| Le | 0.54 mH |

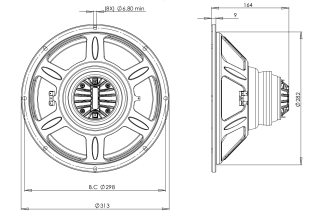

| Mounting and Shipping Info | |
| Overall Diameter | 313 mm (12.32 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 298 mm (11.73 in) |
| Depth | 164 mm (6.46 in) |
| Net Weight | 3.2 kg (7.05 lb) |
| Shipping Weight | 4.5 kg (9.92 lb) |
ALT12CLX648
Scheda dati
- Pollici
- 12
Nuovo
