Features
☑ 700 W continuous program power capacity

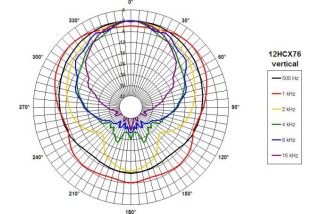

☑ 60°x40° nominal coverage

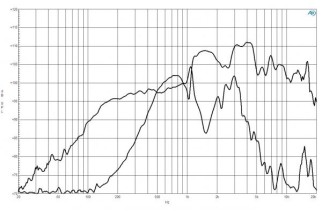

☑ 45 - 18000 Hz response
☑ 99 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Modified exponential horn flare for improved acoustic loading and controlled coverage
☑ 33 mm (1.3”) HF unit exit diameter

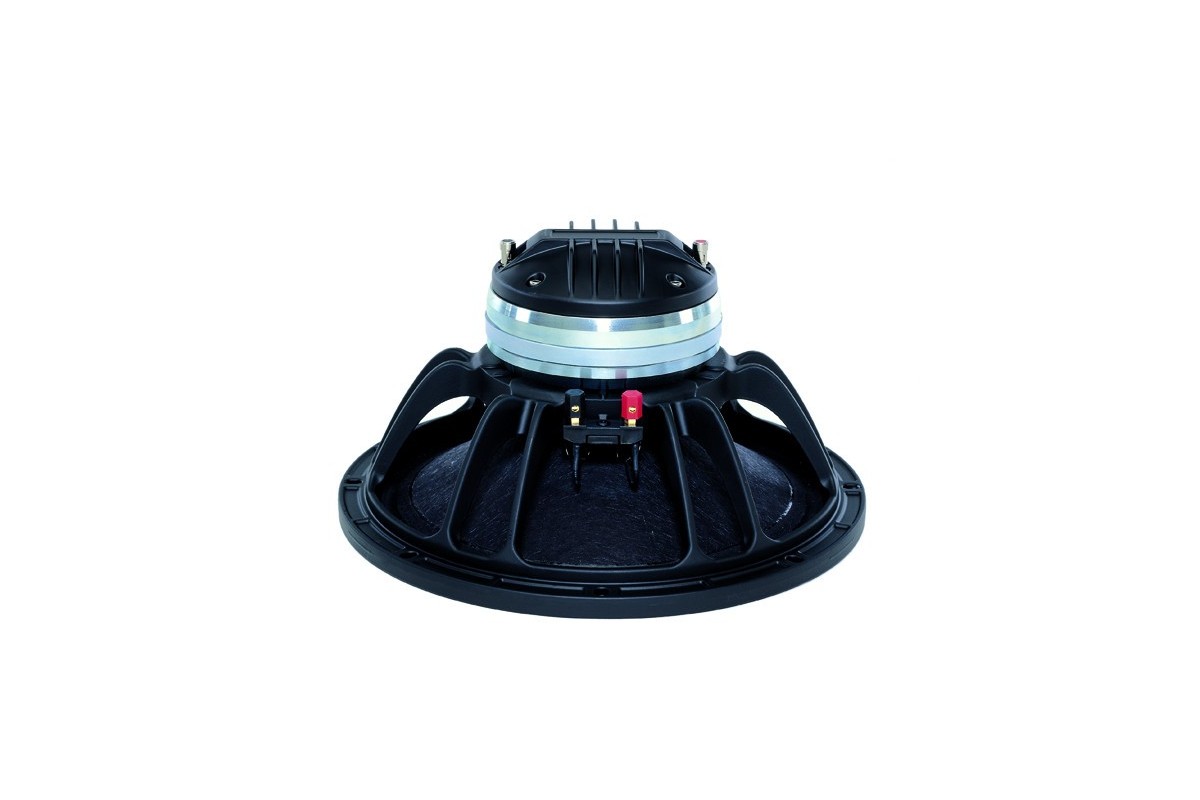

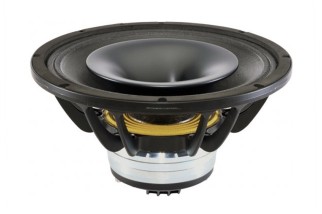

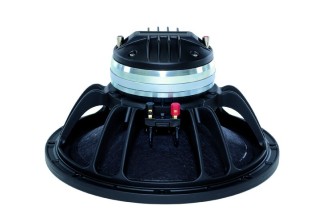

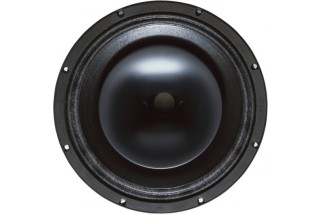

B&C 12HCX76
505,08 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 700 W continuous program power capacity
☑ 60°x40° nominal coverage
☑ 45 - 18000 Hz response
☑ 99 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Modified exponential horn flare for improved acoustic loading and controlled coverage
☑ 33 mm (1.3”) HF unit exit diameter
close
| General | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Frequency Range | 45 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 60 ° |
| Specifications LF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.7 Ω |
| Continuous Power Handling | 700 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 99 dB |
| Winding Material | Copper |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1.15 T |
| Specifications HF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 8 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.9 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 107 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 42 Hz |
| Qes | 0.2 |
| Qts | 0.19 |
| Sd | 522 cm² (80.9 in²) |
| Xvar | 6 mm |
| Bl | 17.6 Tm |
| EBP | 210 Hz |
| Re | 5 Ω |
| Qms | 8 |
| Vas | 120 dm³ (4.2 ft³) |
| η0 | 4.1 % |
| Mms | 47 g |
| Le | 0.8 mH |

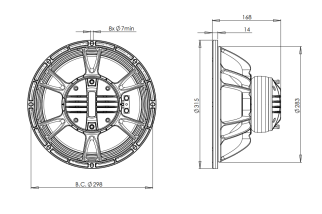

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Baffle Cutout Diameter | 283 mm (11.14 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 298 mm (11.7 in) |
| Depth | 168 mm (6.6 in) |
| Net Weight | 5.3 kg (11.68 lb) |
| Shipping Weight | 6.6 kg (14.55 lb) |
ALT12HCX768
Scheda dati
- Pollici
- 12
