Features
☑ 1000 W continuous program power capacity
☑ 80° nominal coverage
☑ 50 - 18000 Hz response
☑ 100 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance

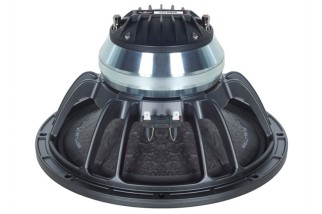

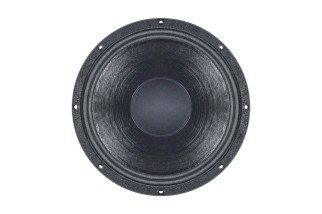

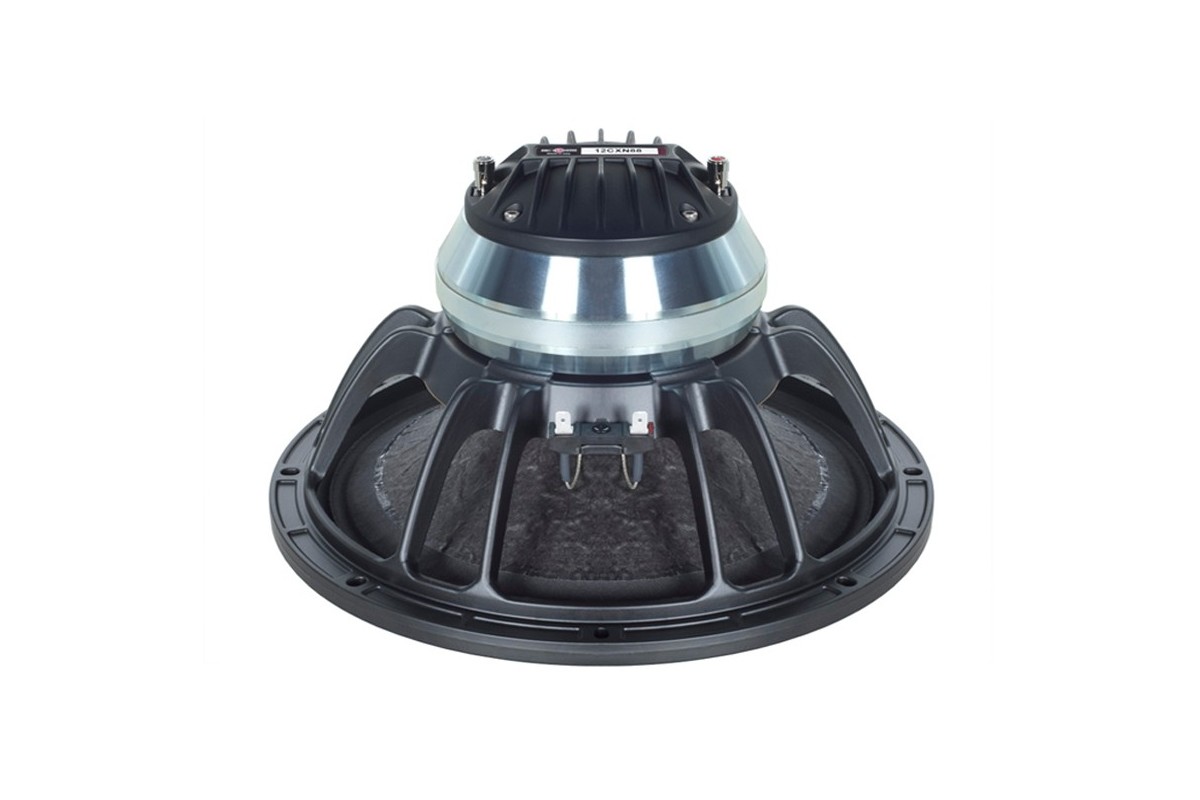

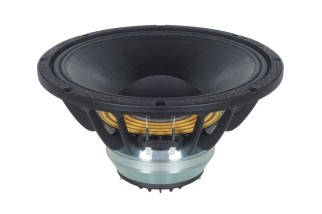

B&C 12CXN88
600,24 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1000 W continuous program power capacity
☑ 80° nominal coverage
☑ 50 - 18000 Hz response
☑ 100 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
close
| General | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |

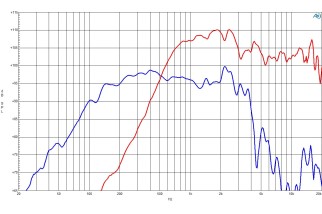

| Frequency Range | 50 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

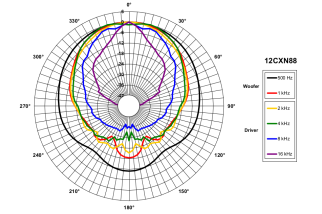

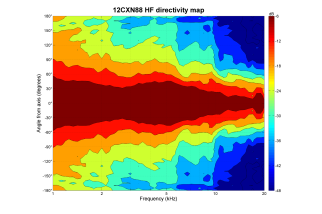

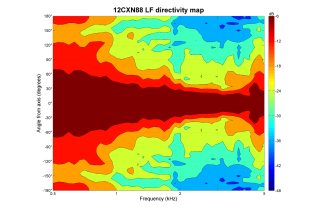

| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.6 Ω |
| Continuous Power Handling | 1000 W |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 500 W |
| Sensitivity | 100 dB |
| Winding Material | Aluminium |
| Winding Depth | 21.5 mm (0.85 in) |
| Flux Density | 1.05 T |
| Specifications HF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 8.5 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.75 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 106 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 50 Hz |
| Qes | 0.23 |
| Qts | 0.22 |
| Sd | 522 cm² (80.91 in²) |
| Xvar | 10.5 mm |
| Bl | 20.9 Tm |
| EBP | 217 Hz |
| Re | 5 Ω |
| Qms | 8.3 |
| Vas | 59 dm³ (2.08 ft³) |
| η0 | 3.6 % |
| Mms | 60 g |
| Le | 1.05 mH |
| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Baffle Cutout Diameter | 284 mm (11.18 in) |
| Flange and Gasket Thickness | 13 mm (0.51 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 298 mm (11.7 in) |
| Depth | 178 mm (7.01 in) |
| Net Weight | 6.85 kg (15.1 lb) |
| Shipping Weight | 8.15 kg (17.97 lb) |
ALT12CXN888
Scheda dati
- Pollici
- 12
Nuovo
