Features
☑ 800 W continuous program power capacity
☑ 80° nominal coverage
☑ 45 - 18000 Hz response
☑ 100 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring for very low distortion

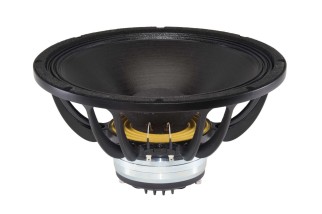

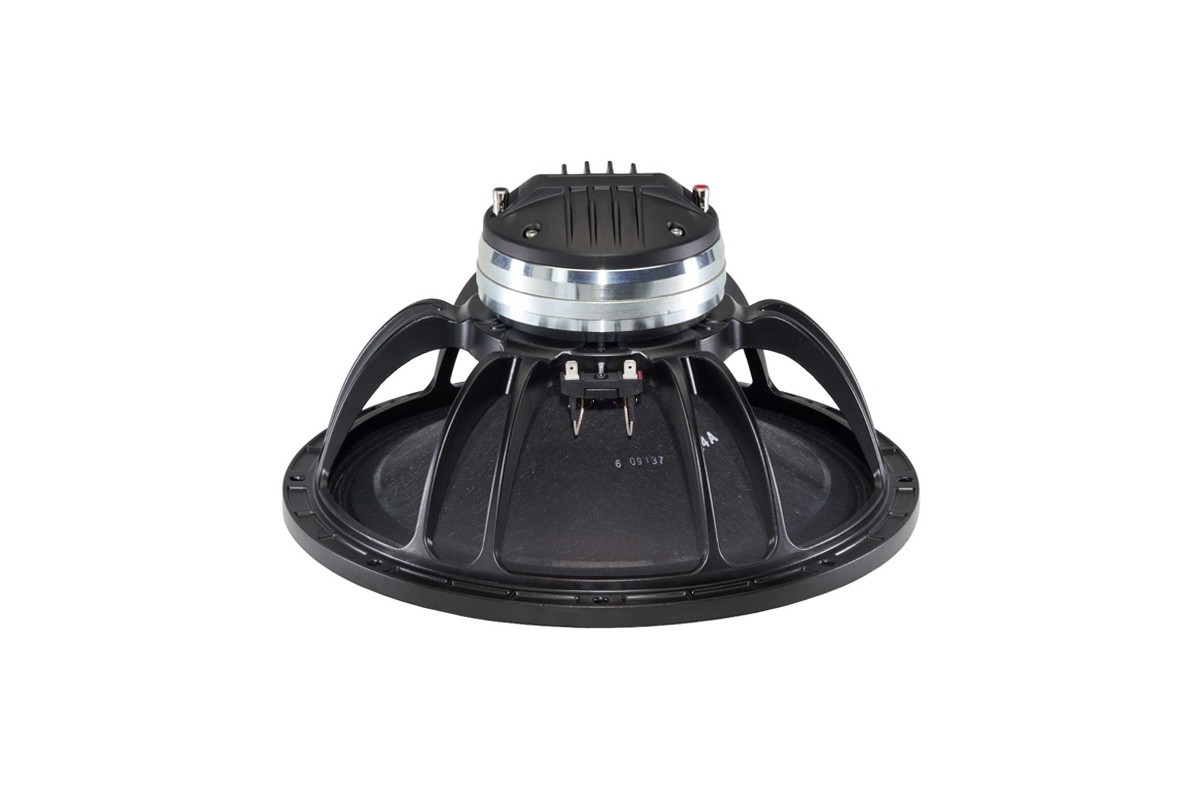

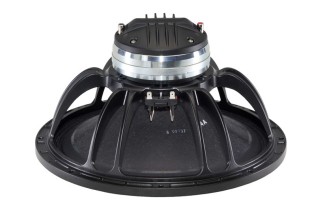

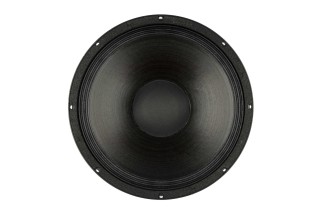

B&C 14CXN76
124,44 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 800 W continuous program power capacity
☑ 80° nominal coverage
☑ 45 - 18000 Hz response
☑ 100 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring for very low distortion
close
| General | |
|---|---|
| Nominal Diameter | 343 mm (13.5 in) |

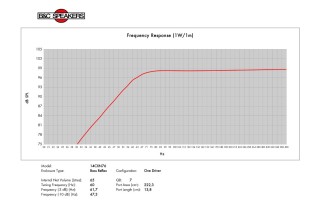

| Frequency Range | 45 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

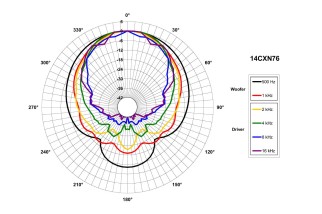

| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 343 mm (13.5 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 800 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 100 dB |
| Winding Material | Copper |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1.05 T |

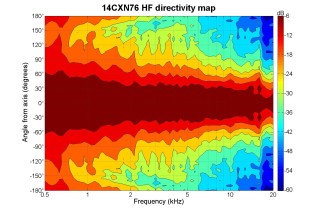

| Specifications HF unit | |
| Nominal Diameter | 343 mm (13.5 in) |
| Minimum Impedance | 8.2 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 105 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Polyester/Titanium |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 45 Hz |
| Qes | 0.29 |
| Qts | 0.28 |
| Sd | 707 cm² (109.59 in²) |
| Xvar | 8 mm |
| Bl | 18.4 Tm |
| EBP | 155 Hz |

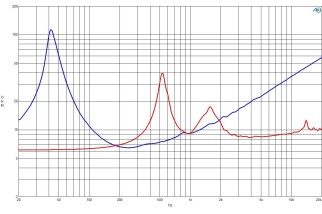

| Re | 5.2 Ω |
| Qms | 8.5 |
| Vas | 131 dm³ (4.63 ft³) |
| η0 | 4% |
| Mms | 67 g |
| Le | 1 mH |

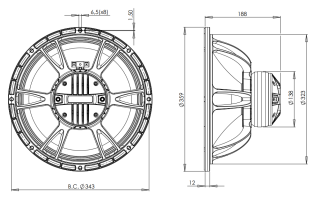

| Mounting and Shipping Info | |
| Overall Diameter | 359 mm (14.13 in) |
| Baffle Cutout Diameter | 323 mm (12.72 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 343 mm (13.5 in) |
| Depth | 188 mm (7.4 in) |
| Net Weight | 5.6 kg (12.35 lb) |
| Shipping Weight | 6.9 kg (15.21 lb) |
ALT14CXN768
Scheda dati
- Pollici
- 14
Nuovo
