Features
☑ 1000 W continuous program power capacity

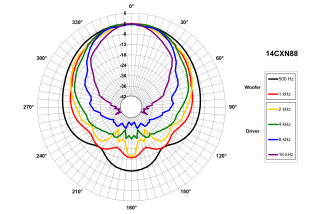

☑ 80° nominal coverage

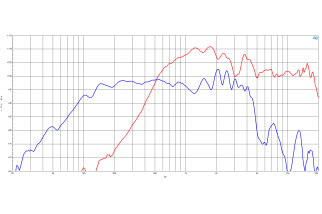

☑ 45 - 18000 Hz response
☑ 99 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance

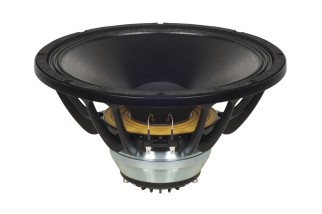

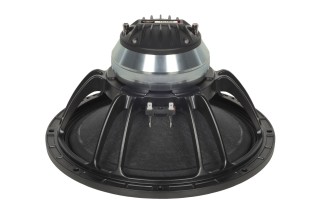

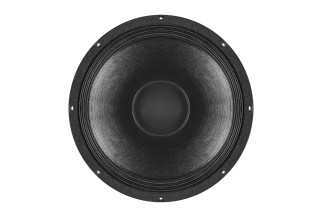

B&C 14CXN88
625,86 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1000 W continuous program power capacity
☑ 80° nominal coverage
☑ 45 - 18000 Hz response
☑ 99 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
close
| General | |
|---|---|
| Nominal Diameter | 343 mm (13.5 in) |
| Frequency Range | 45 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 343 mm (13.5 in) |
| Minimum Impedance | 6.8 Ω |
| Continuous Power Handling | 1000 W |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 500 W |
| Sensitivity | 99 dB |
| Winding Material | Aluminium |
| Winding Depth | 22 mm (0.87 in) |
| Flux Density | 1.05 T |
| Specifications HF unit | |
| Nominal Diameter | 343 mm (13.5 in) |
| Minimum Impedance | 8.8 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.75 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 106 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 46 Hz |
| Qes | 0.27 |
| Qts | 0.26 |
| Sd | 707 cm² (109.59 in²) |
| Xvar | 9 mm |
| Bl | 20.7 Tm |
| EBP | 170 Hz |
| Re | 4.7 Ω |
| Qms | 13 |
| Vas | 100 dm³ (3.53 ft³) |
| η0 | 3.6 % |
| Mms | 83 g |
| Le | 0.95 mH |

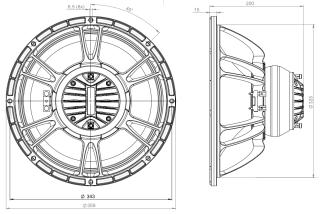

| Mounting and Shipping Info | |
| Overall Diameter | 359 mm (14.13 in) |
| Baffle Cutout Diameter | 326 mm (12.83 in) |
| Flange and Gasket Thickness | 15 mm (0.59 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Bolt Circle Diameter | 343 mm (323 in) |
| Depth | 200 mm (7.87 in) |
| Net Weight | 7.4 kg (16.31 lb) |
| Shipping Weight | 9 kg (19.84 lb) |
ALT14CXN888/16
Scheda dati
- Pollici
- 14
Nuovo
