Features
☑ 200 W continuous program power capacity

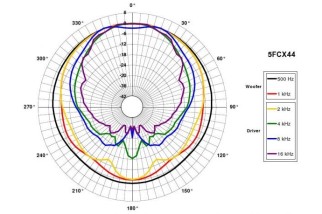

☑ 70° nominal coverage

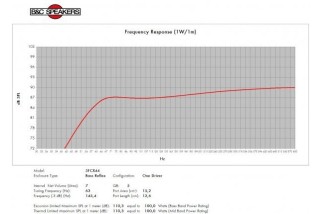

☑ 60 - 18000 Hz response
☑ 91 dB sensitivity
☑ 19 mm (3/4”) HF unit exit diameter

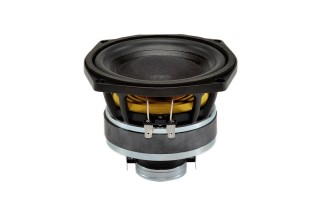

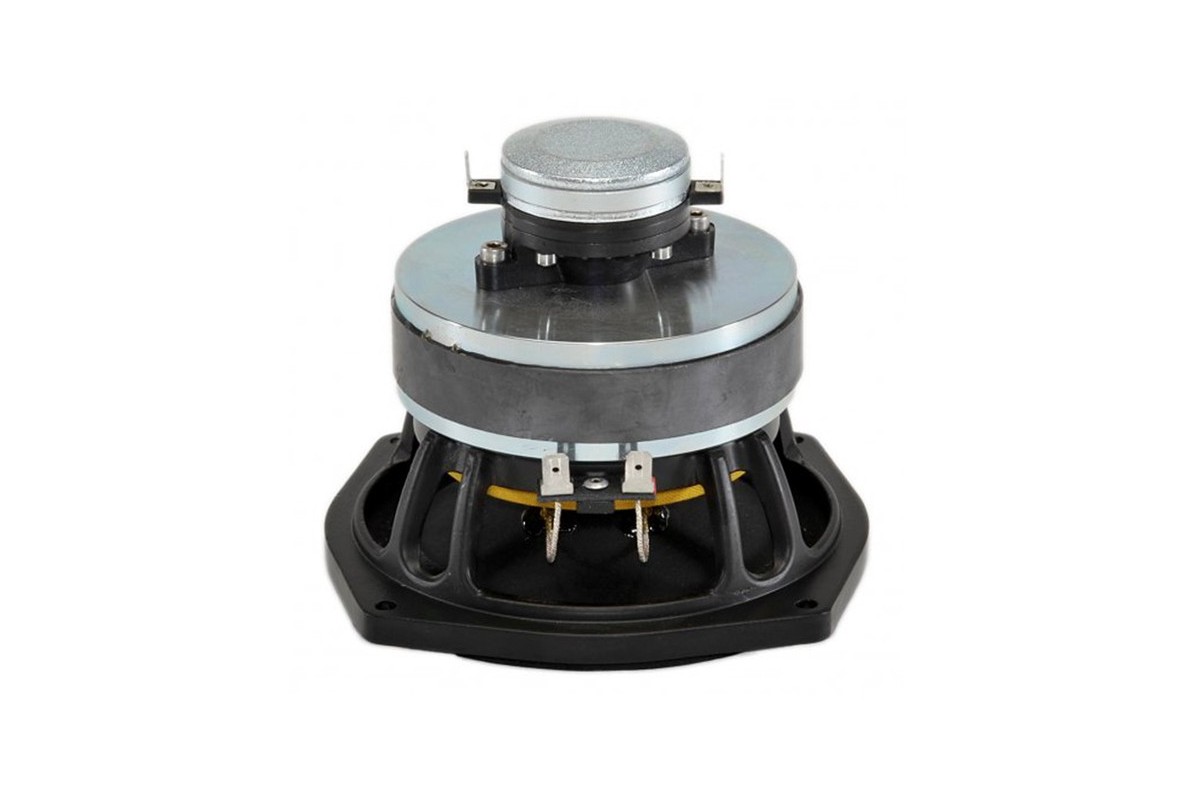

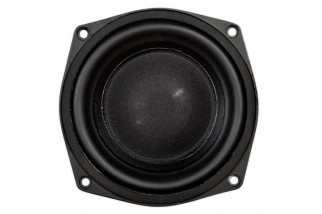

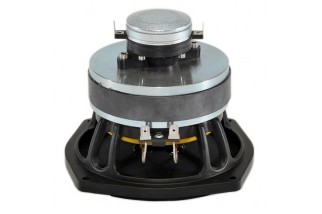

B&C 5FCX44
164,70 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 200 W continuous program power capacity
☑ 70° nominal coverage
☑ 60 - 18000 Hz response
☑ 91 dB sensitivity
☑ 19 mm (3/4”) HF unit exit diameter
close
| General | |
|---|---|
| Nominal Diameter | 127 mm (5 in) |
| Frequency Range | 60 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 70 ° |
| Specifications LF unit | |
| Nominal Diameter | 127 mm (5 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 200 W |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 100 W |
| Sensitivity | 91 dB |
| Winding Material | Copper |
| Winding Depth | 9 mm (0.35 in) |
| Flux Density | 1.07 T |
| Specifications HF unit | |
| Nominal Diameter | 127 mm (5 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 20 W |
| Recommended Crossover | 2.5 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.65 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 10 W |
| Sensitivity | 107.5 dB |
| Voice Coil Diameter | 25 mm (1 in) |
| Inductance | 0.1 mH |
| Diaphragm Material | Polyester |
| Design | |
| Magnet Material | Ferrite (LF) - Neodym. Ring (HF) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 61 Hz |
| Qes | 0.25 |
| Qts | 0.25 |
| Sd | 95 cm² (14.7 in²) |
| Xvar | 5 mm |
| Bl | 10.5 Tm |
| EBP | 244 Hz |
| Re | 5.6 Ω |
| Qms | 7.8 |
| Vas | 7 dm³ (0.25 ft³) |
| η0 | 0.6 % |
| Mms | 12 g |
| Le | 0.8 mH |

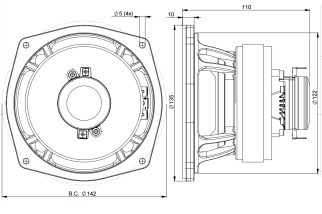

| Mounting and Shipping Info | |
| Overall Diameter | 136 mm (5.35 in) |
| Baffle Cutout Diameter | 122 mm (4.8 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
| Bolt Circle Diameter | 142 mm (5.6 in) |
| Depth | 110 mm (4.33 in) |
| Net Weight | 1.85 kg (4.1 lb) |
| Shipping Weight | 2.3 kg (5.07 lb) |
ALT005FCX448
Scheda dati
- Pollici
- 5
Nuovo
