Features
☑ 98 dB sensitivity
☑ 800 W continuous program power capacity

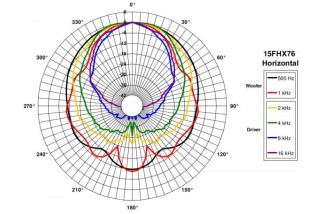

☑ 60°x40° nominal coverage
☑ 40 - 18000 Hz response
☑ Modified exponential horn flare for improved acoustic loading and controlled coverage
☑ 33 mm (1.3”) HF unit exit diameter
☑ Single Ferrite magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure

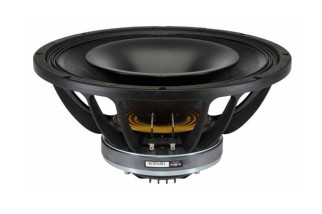

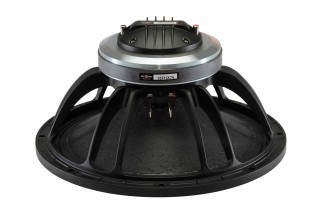

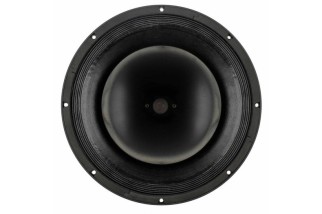

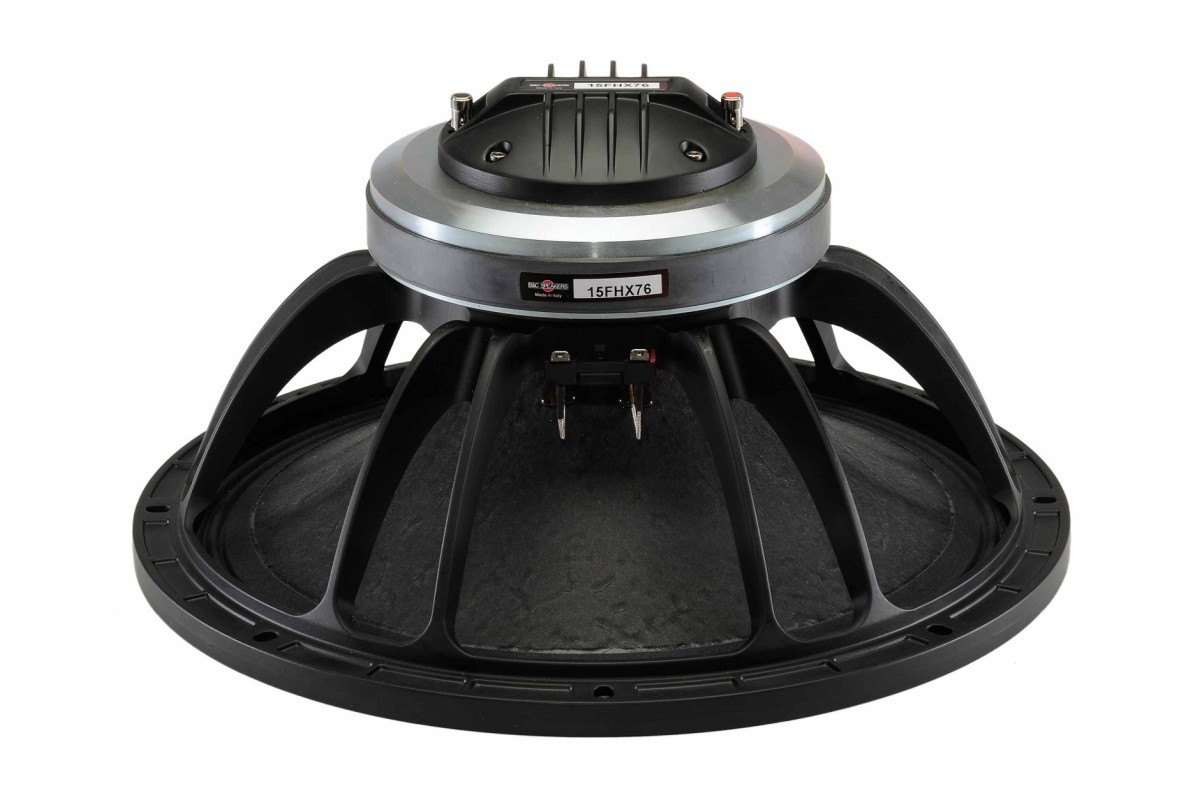

B&C 15FHX76
424,56 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 98 dB sensitivity
☑ 800 W continuous program power capacity
☑ 60°x40° nominal coverage
☑ 40 - 18000 Hz response
☑ Modified exponential horn flare for improved acoustic loading and controlled coverage
☑ 33 mm (1.3”) HF unit exit diameter
☑ Single Ferrite magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
close
| General | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Frequency Range | 40 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 60 ° |
| Specifications LF unit | |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 800 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 98 dB |
| Winding Material | Copper |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1.15 T |
| Specifications HF unit | |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 7.5 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.6 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 107 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Ferrite |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 40 Hz |
| Qes | 0.47 |
| Qts | 0.43 |
| Sd | 855 cm² (132.5 in²) |
| Xvar | 7 mm |
| Bl | 15.5 Tm |
| EBP | 85 Hz |
| Re | 5.2 Ω |
| Qms | 5.2 |
| Vas | 186 dm³ (6.56 ft³) |
| η0 | 2.4 % |
| Mms | 88 g |
| Le | 1.5 mH |

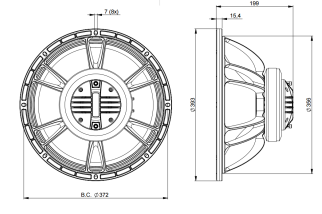

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Depth | 199 mm (7.83 in) |
| Net Weight | 9.2 kg (20.28 lb) |
| Shipping Weight | 10.8 kg (23.81 lb) |
ALT15FHX768
Scheda dati
- Pollici
- 15
Nuovo
