Features
☑100 dB (LF), 110 dB (MF/HF) Sensitivity
☑ 1600 W continuous program power capacity
☑ 60°x40° nominal coverage
☑ 44 - 18000 Hz response
☑ FEA optimized horn flare for improved acoustic loading and controlled coverage
☑ Double silicone spider with optimized compliance
☑ Aluminium demodulating ring for very low distortion

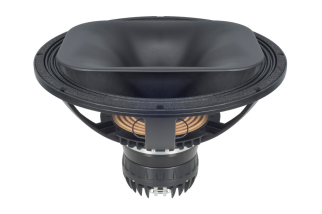

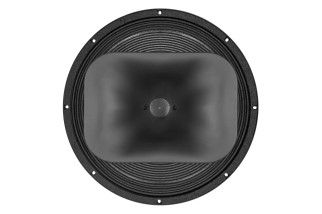

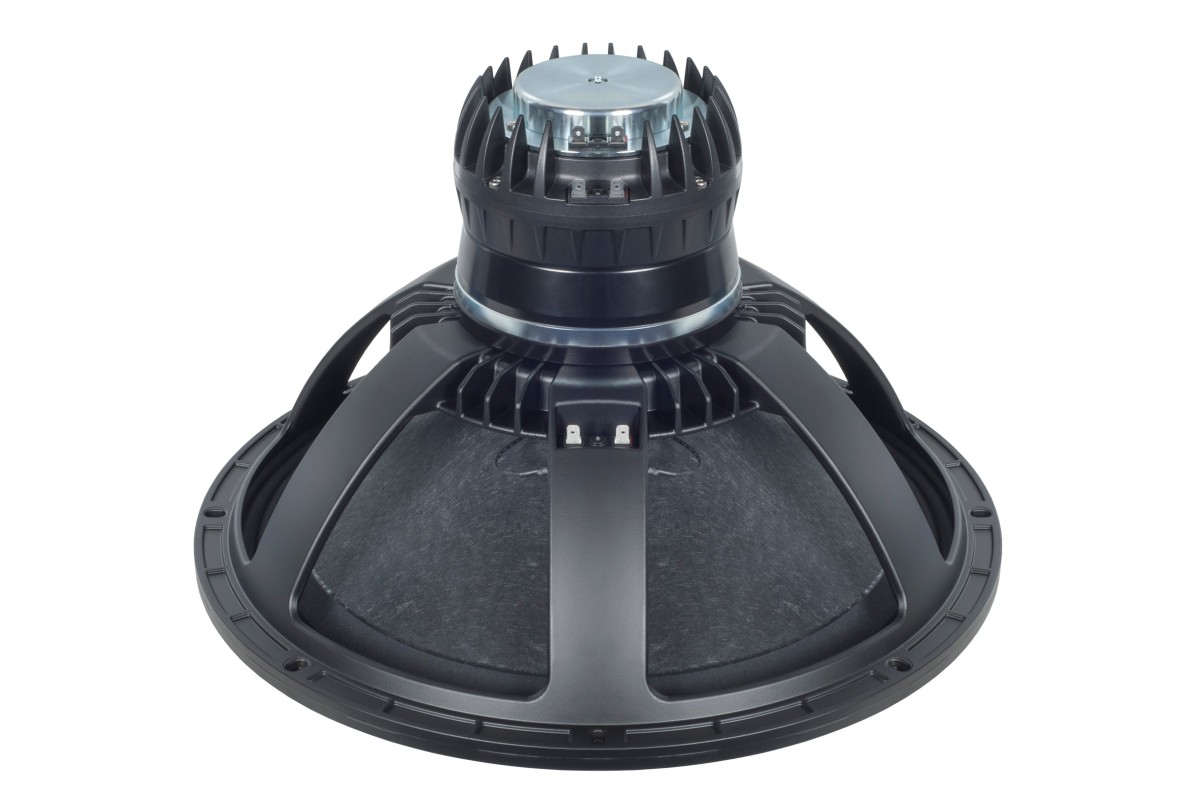

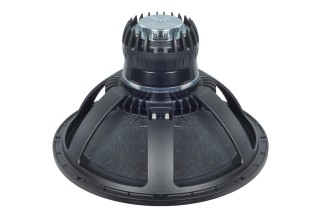

B&C 18HTX100 Triaxial 18" 8 Ohm - Terminali Faston
1.043,10 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑100 dB (LF), 110 dB (MF/HF) Sensitivity
☑ 1600 W continuous program power capacity
☑ 60°x40° nominal coverage
☑ 44 - 18000 Hz response
☑ FEA optimized horn flare for improved acoustic loading and controlled coverage
☑ Double silicone spider with optimized compliance
☑ Aluminium demodulating ring for very low distortion
close
| General | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Dispersion Angle | 60 ° |
| Frequency Range | 44 Hz - 18000 Hz |
| Specifications LF unit (Woofer) | |
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.6 Ω |
| Nominal Power Handling | 800 W |
| Continuous Power Handling | 1600 W |
| Frequency Range (LF) | 44 Hz - 800 Hz |
| Sensitivity | 100 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Winding Material | Aluminium |
| Winding Depth | 25.1 mm (1 in) |
| Magnetic Gap Depth | 10.2 mm (0.4 in) |
| Flux Density | 1.5 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Specifications MF unit (Midrange) | |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Nominal Power Handling | 110 W |
| Continuous Power Handling | 220 W |
| Frequency Range (MF) | 0.5 kHz - 5.5 kHz |
| Sensitivity | 110 dB |
| Recommended Crossover | 0.6 kHz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Aluminium |
| Diaphragm Material | HT Polymer Ring |
| Inductance | 0.21 mH |
| Flux Density | 1.9 T |
| Specifications HF unit (Tweeter) | |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 9 Ω |
| Nominal Power Handling | 80 W |
| Continuous Power Handling | 160 W |
| Frequency Range (HF) | 3.5 kHz - 18 kHz |
| Sensitivity | 110 dB |
| Recommended Crossover | 4 kHz |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Winding Material | Aluminium |
| Diaphragm Material | HT Polymer Ring |
| Inductance | 0.1 mH |
| Flux Density | 2.14 T |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters (T/S) | |
| Fs | 44 Hz |
| Re | 5.4 Ω |
| Qes | 0.34 |
| Qms | 6.3 |
| Qts | 0.32 |
| Vas | 173 dm³ (6.11 ft³) |
| Sd | 1210 cm² (187.55 in²) |
| Xvar | 13 mm |
| Bl | 26.3 Tm |
| EBP | 129 Hz |
| η0 | 4.3 % |
| Mms | 158.5 g |
| Le | 1.16 mH |

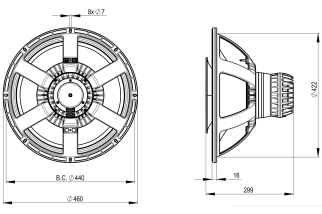

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18.11 in) |
| Baffle Cutout Diameter | 423 mm (16.65 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Depth | 299 mm (11.77 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 12.65 kg (27.89 lb) |
| Shipping Weight | 14.55 kg (32.08 lb) |
| Shipping Box | 570x570x340 mm (22.44x22.44x13.39 in) |
ALT18HTX1008
Scheda dati
- Pollici
- 18
