Features
☑ 500 W continuous program power capacity
☑ 70° nominal coverage
☑ 70 - 18000 Hz response
☑ 94 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminum demodulating ring for very low distortion

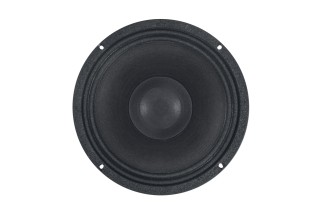

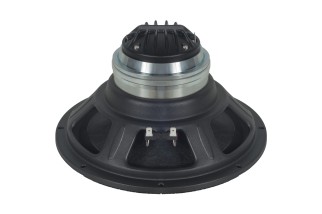

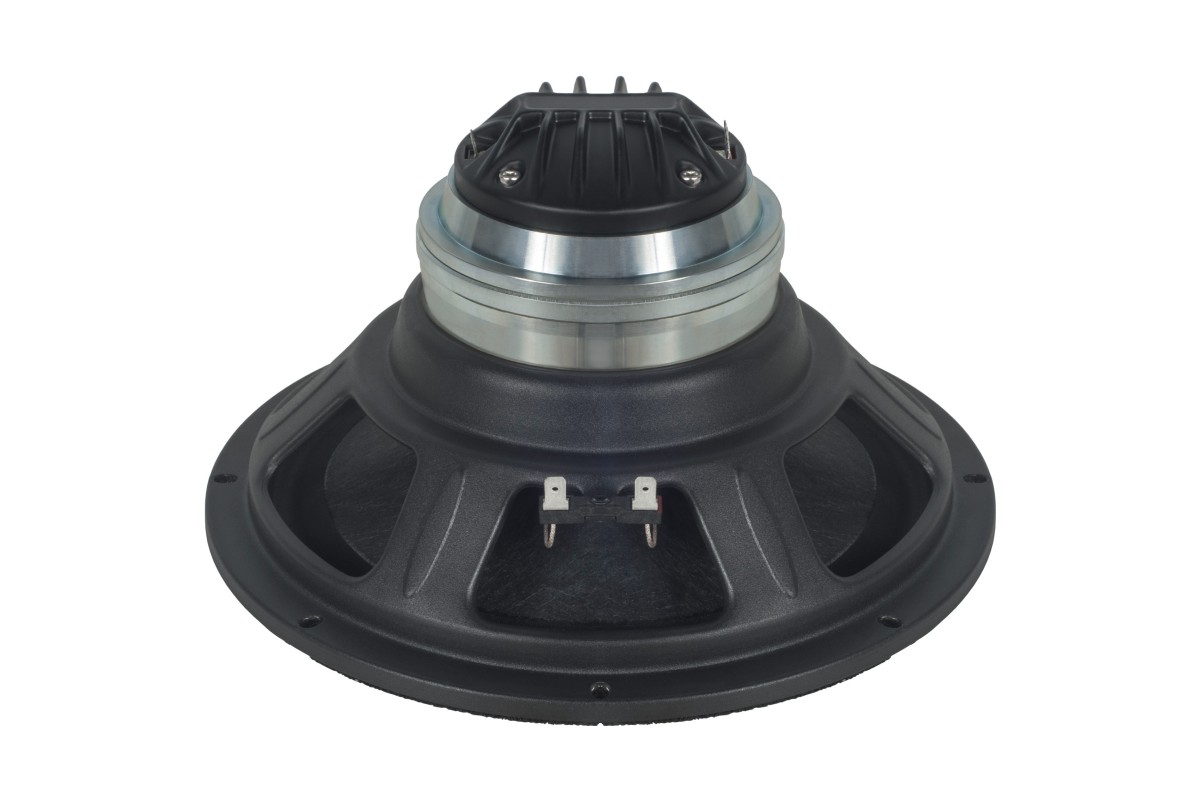

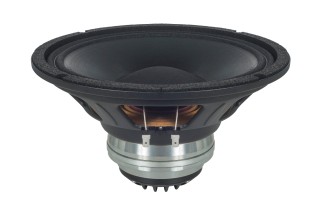

B&C 10CLX64
285,48 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 70° nominal coverage
☑ 70 - 18000 Hz response
☑ 94 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminum demodulating ring for very low distortion
close
| General | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Frequency Range | 70 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 70 ° |
| Specifications LF unit | |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 500 W |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 94 dB |
| Winding Material | Copper |
| Winding Depth | 14.5 mm (0.57 in) |
| Flux Density | 0.9 T |
| Specifications HF unit | |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 8.2 Ω |
| Continuous Power Handling | 140 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.6 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 70 W |
| Sensitivity | 105 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | HT Polymer |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 70 Hz |
| Qes | 0.67 |
| Qts | 0.63 |
| Sd | 320 cm² (49.6 in²) |
| Xvar | 5.5 mm |
| Bl | 11.4 Tm |
| EBP | 104 Hz |
| Re | 5.6 Ω |
| Qms | 9.8 |
| Vas | 21 dm³ (0.74 ft³) |
| η0 | 1.1 % |
| Mms | 36 g |
| Le | 0.91 mH |

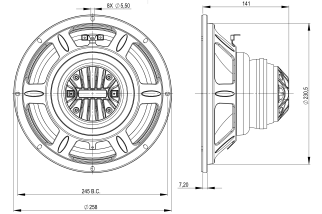

| Mounting and Shipping Info | |
| Overall Diameter | 258 mm (10.16 in) |
| Baffle Cutout Diameter | 231 mm (9.09 in) |
| Flange and Gasket Thickness | 9 mm (0.37 in) |
| Shipping Box | NaN in |
| Bolt Circle Diameter | 245 mm (9.65 in) |
| Depth | 141 mm (5.55 in) |
| Net Weight | 3.1 kg (6.83 lb) |
ALT10CLX648
Scheda dati
- Pollici
- 10
