Features
☑ 300 W continuous program power capacity
☑ 70° nominal coverage
☑ 90 - 18000 Hz response
☑ 92 dB sensitivity
☑ Single Neodymium magnet assembly
☑ 20.1 mm (0.79”) HF unit exit diameter

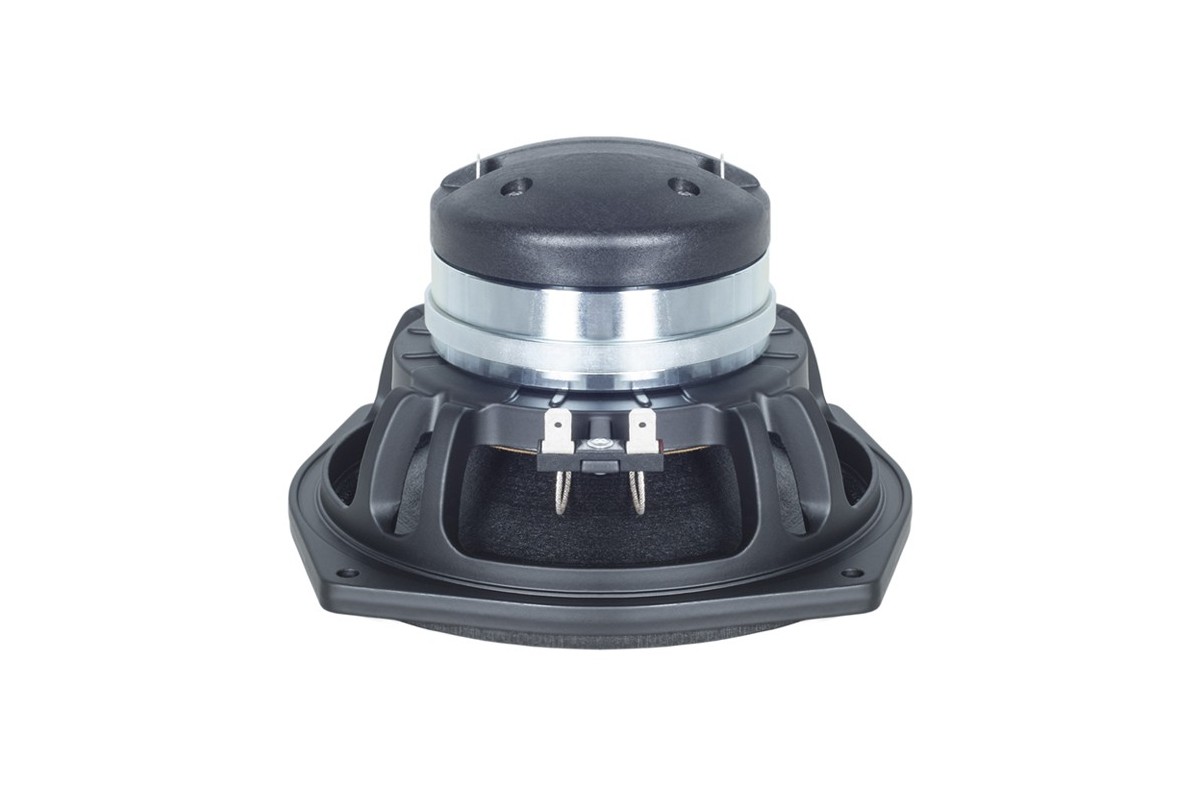

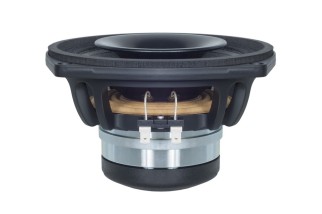

B&C 6HCX51
226,19 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 300 W continuous program power capacity
☑ 70° nominal coverage
☑ 90 - 18000 Hz response
☑ 92 dB sensitivity
☑ Single Neodymium magnet assembly
☑ 20.1 mm (0.79”) HF unit exit diameter
close
| General | |
|---|---|
| Nominal Diameter | 170 mm (6.5 in) |
| Frequency Range | 90 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

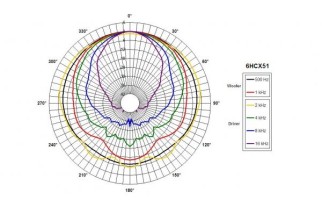

| Dispersion Angle | 70 ° |
| Specifications LF unit | |
| Nominal Diameter | 170 mm (6.5 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 300 W |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 150 W |
| Sensitivity | 92 dB |
| Winding Material | Copper |
| Winding Depth | 13 mm (0.51 in) |
| Flux Density | 1.1 T |
| Specifications HF unit | |
| Nominal Diameter | 170 mm (6.5 in) |
| Minimum Impedance | 7.5 Ω |
| Continuous Power Handling | 50 W |
| Recommended Crossover | 2.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 25 W |
| Sensitivity | 105 dB |
| Voice Coil Diameter | 36 mm (1.4 in) |
| Inductance | 0.06 mH |
| Diaphragm Material | Polyester |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 89 Hz |
| Qes | 0.4 |
| Qts | 0.38 |
| Sd | 132 cm² (20.5 in²) |
| Xvar | 5.5 mm |
| Bl | 10.9 Tm |
| EBP | 223 Hz |
| Re | 5.2 Ω |
| Qms | 7.5 |
| Vas | 5 dm³ (0.18 ft³) |
| η0 | 0.8 % |
| Mms | 16 g |
| Le | 0.8 mH |

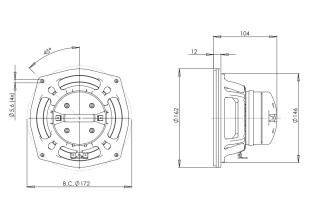

| Mounting and Shipping Info | |
| Overall Diameter | 187 mm (7.4 in) |
| Baffle Cutout Diameter | 146 mm (5.75 in) |
| Flange and Gasket Thickness | 11 mm (0.4 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
| Bolt Circle Diameter | 172 mm (6.7 in) |
| Depth | 104 mm (4.1 in) |
| Net Weight | 1.6 kg (3.53 lb) |
| Shipping Weight | 2.05 kg (4.52 lb) |
ALT006HCX518
Scheda dati
- Pollici
- 6.5
Nuovo
