Caratteristiche
☑ 3.5-inch , fibreglass outside aluminum voice coil
☑ 900 Watt continuous program power handling
☑ 98.5 dB Sensitivity
☑50 Hz - 3.0 kHz Frequency range
☑ Dual-forced air ventilation for minimum power compression
☑ M-roll surround and exponential cone geometry
☑ Demodulation ring
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat/pure titanium compression driver
☑ 180 Watt Continuous program power handling
☑ Frequency range: 700Hz – 20kHz
The CX12N351 is a top class coaxial design that provides an excellent frequency response linearity withvery low distortion. The CX12N351 is powered from an integrated high power neodymium magnetic structure that guarantee high dynamic and sensitivity for both components. The mid-bass section features a 3,5" inside-outside voice coil design that provides a very high power handling, especially in comparison to a standard 3" voice coil. Thanks to an integrated demodulation ring the mid-bass section gets a fastest time response and lower distortion. The compression driver use a 2.5" diaphragm with a 1.4" throat featuring several state of the art technologies. The diaphragm and suspension are formed from 0.05 mm thick pure titanium

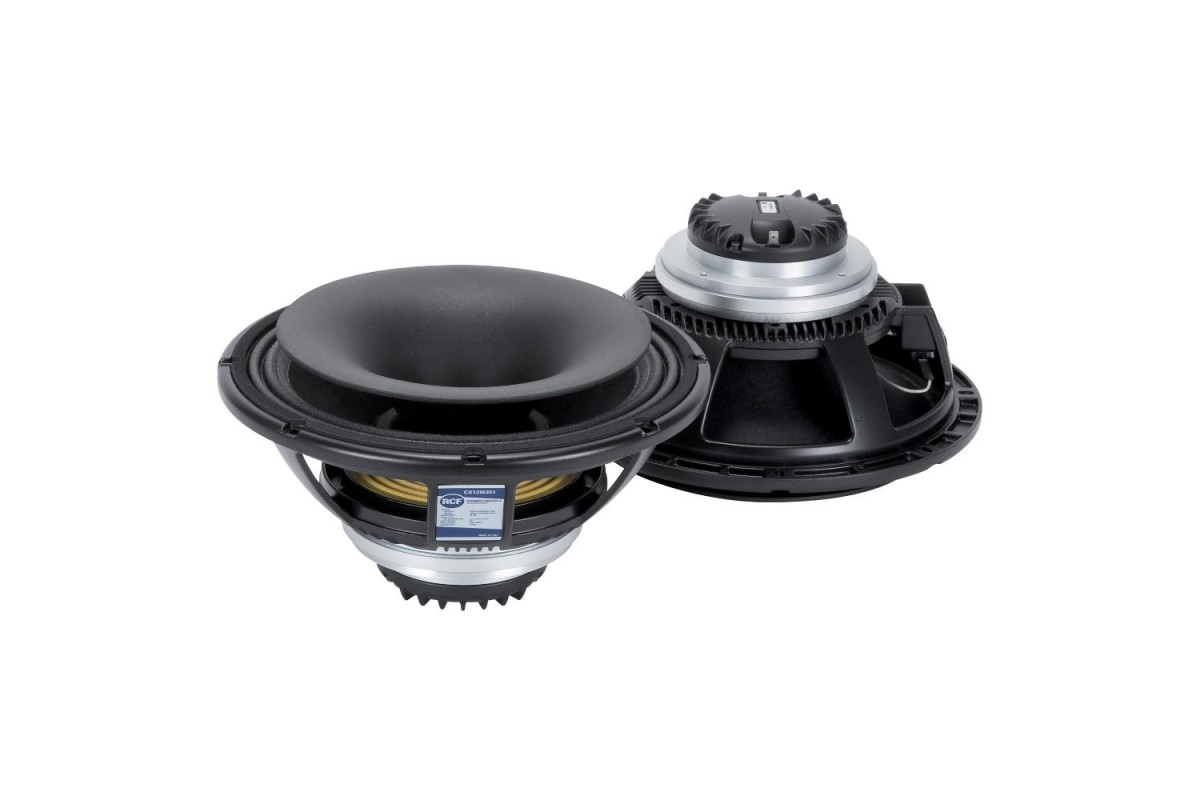

RCF CX12N351
580,72 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 3.5-inch , fibreglass outside aluminum voice coil
☑ 900 Watt continuous program power handling
☑ 98.5 dB Sensitivity
☑50 Hz - 3.0 kHz Frequency range
☑ Dual-forced air ventilation for minimum power compression
☑ M-roll surround and exponential cone geometry
☑ Demodulation ring
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat/pure titanium compression driver
☑ 180 Watt Continuous program power handling
☑ Frequency range: 700Hz – 20kHz
The CX12N351 is a top class coaxial design that provides an excellent frequency response linearity withvery low distortion. The CX12N351 is powered from an integrated high power neodymium magnetic structure that guarantee high dynamic and sensitivity for both components. The mid-bass section features a 3,5" inside-outside voice coil design that provides a very high power handling, especially in comparison to a standard 3" voice coil. Thanks to an integrated demodulation ring the mid-bass section gets a fastest time response and lower distortion. The compression driver use a 2.5" diaphragm with a 1.4" throat featuring several state of the art technologies. The diaphragm and suspension are formed from 0.05 mm thick pure titanium
close
| Specifiche generali | |
|---|---|
| Diametro Nominale | 12 inch / 305 mm |
| Impedenza nominale (ohm) | 8.00 ohm |
| Potenza musicale (watt) | 900 W |
| Potenza | 450 W |
| Sensibilità (dB) | 100.4 dB |
| Gamma di frequenza | 50 - 3000 Hz |
| Diametro effettivo del pistone | 260 mm / 10.24 inch |
| Escursione max prima della rottura | 39 mm / 1.54 inch |
| Impedenza Minima (ohm) | 6.8 ohm |
| Diametro Bobina | 3.5 inch / 89 mm |
| Materiale di avvolgimento della bobina | Copper |
| Lunghezza della bobina | 0.67 inch / 17 mm |
| Numero di strati | 2 |
| Strati bobina (tipologia) | inside/outside |
| Spessore piastra superiore | 11 mm / 0.43 inch |
| Design del cono | Curved |
| Materiale del surround | Polycotton |
| Design del surround | M-roll |
| Magnete | Neodymium |
| Aerazione Dual-Force | Yes |
| Spider | Single |
| Parametri di Thiele & Small | |
| Frequenza di Risonanza (Fs) | 58 Hz |
| Resistenza (Re) (ohm) | 5.80 ohm |
| Fattore di merito meccanico (Qms) | 5.40 Qms |
| Fattore di merito elettrico (Qes) | 0.21 Qes |
| Fattore di qualità totale (Qts) | 0.20 Qts |
| Fattore Bl (Bl) (T x m) | 25.00 T x m |
| Massa mobile effettiva (Mms) | 62.0 g |
| Volume equivalente (Vas) | 47.0 liters |
| Area del pistone effettiva (Sd) | 0.050 m² |
| Massima escursione lineare (Xmax) | 6 mm |
| Induttanza bobina @1kHz (Le1k) | 1.50 mH |
| Efficienza Half-Space (Eff) | 4.40% |
| Specifiche generali driver | |
| Diametro gola | 1.4 inch / 36 mm |
| Impedenza nominale (ohm) | 8.00 ohm |
| Potenza musicale (watt) | 180 W |
| Potenza (watt) | 90 W |
| Sensibilità (dB) | 110 dB |
| Gamma di frequenza | 700 - 20000 Hz |
| Materiale Diaframma | Pure Titanium |
| Materiale della sospensione | Pure Titanium |
| Design della sospensione | Progressive |
| Impedenza Minima (ohm) | 7.90 ohm |
| Diametro Bobina | 2.5 inch / 63 mm |
| Materiale della bobina | Aluminum |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico | 2.0 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | Aluminum |
| Magnete | Neodymium |
| Anelli demodulanti bobina | Copper |
| Specifiche generali tromba | |
| Diametro della gola | 36 mm / 1.4 inch |
| Angolo di copertura orizzontale | 60° |
| Angolo di copertura verticale | 60° |
| Frequenza di taglio | 900 Hz |
| Materiale | Structural Polyurethane |
| Informazioni di montaggio | |
| Diametro complessivo | 320 mm / 12.6 inches |
| Diametro esterno vite | 293-304 mm / 11.54-11.97 inch |
| Diametro foro vite | 7 mm / 0.28 inch |
| Foro montaggio anteriore | 284 mm / 11.18 inch |
| Alloggiamento posteriore | 284 mm / 11.18 inch |
| Volume occupato dal driver | 2.2 liters / 0.09 ft³ |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Altezza | 157 mm / 6.18 inches |
| Diametro | 320 mm / 12.6 inches |
| Peso | 6.29 kg / 13.87 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 240 mm / 9.45 inches |
| Larghezza imballaggio | 360 mm / 14.17 inches |
| Profondità imballaggio | 360 mm / 14.17 inches |
| Peso imballaggio | 7.47 kg / 16.47 lbs |
11100058
Scheda dati
- Pollici
- 12
