Features
☑ 500 W continuous program power capacity
☑ 100° nominal coverage
☑ 70 - 18000 Hz response
☑ 97 dB sensitivity
☑ Single Neodymium magnet assembly

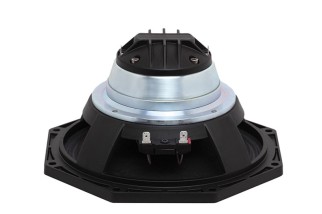

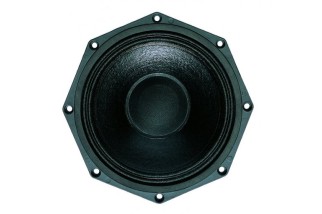

B&C 8CXN51
289,14 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 100° nominal coverage
☑ 70 - 18000 Hz response
☑ 97 dB sensitivity
☑ Single Neodymium magnet assembly
close
| General | |
|---|---|
| Nominal Diameter | 210 mm (8 in) |
| Frequency Range | 70 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

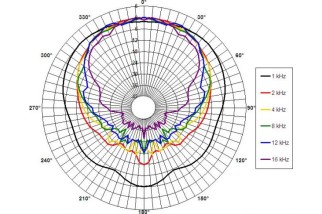

| Dispersion Angle | 100 ° |
| Specifications LF unit | |
| Nominal Diameter | 210 mm (8 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 500 W |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 97 dB |
| Winding Material | Aluminium |
| Winding Depth | 17 mm (0.67 in) |
| Flux Density | 1.15 T |
| Specifications HF unit | |
| Nominal Diameter | 210 mm (8 in) |
| Minimum Impedance | 7.4 Ω |
| Continuous Power Handling | 100 W |
| Recommended Crossover | 1.8 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 50 W |
| Sensitivity | 104 dB |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Inductance | 0.11 mH |
| Diaphragm Material | Polyimide |
| Design | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 68 Hz |
| Qes | 0.29 |
| Qts | 0.27 |
| Sd | 220 cm² (34.1 in²) |
| Xvar | 6 mm |
| Bl | 12.6 Tm |
| EBP | 234 Hz |
| Re | 4.9 Ω |
| Qms | 4.7 |
| Vas | 17 dm³ (0.6 ft³) |
| η0 | 1.8 % |
| Mms | 22 g |
| Le | 0.9 mH |

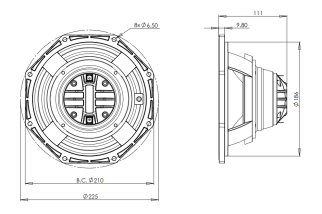

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Flange and Gasket Thickness | 10 mm (0.4 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Depth | 111 mm (4.4 in) |
| Net Weight | 2.6 kg (5.73 lb) |
| Shipping Weight | 3.2 kg (7.05 lb) |
ALT008CXN518
Scheda dati
- Pollici
- 8
Nuovo
