Features
☑ 400 W continuous program power capacity
☑ 100° nominal coverage
☑ 75 - 20000 Hz response
☑ 94 dB sensitivity
☑ 34.5 mm (1.35”) HF unit exit diameter

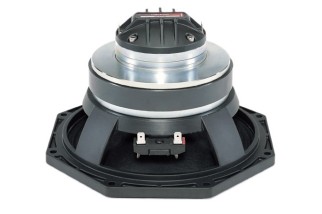

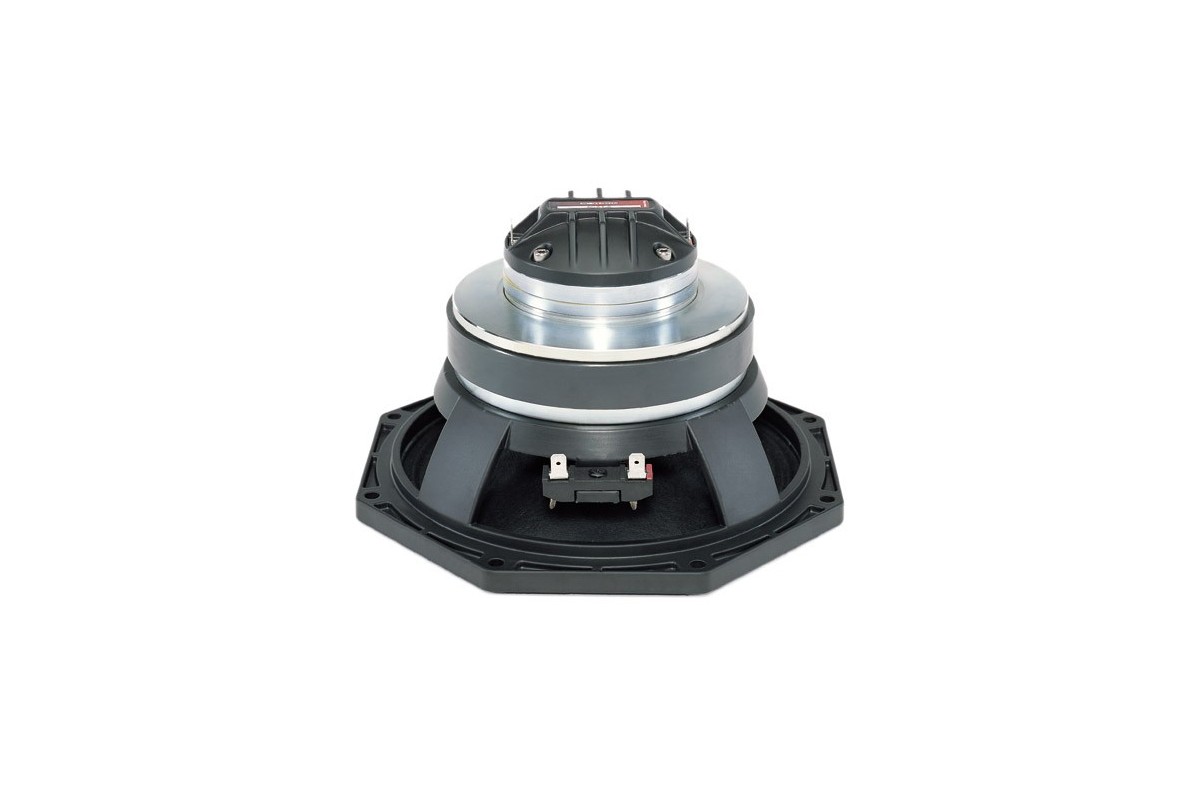

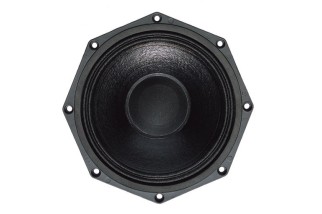

B&C 8CXT
260,59 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 400 W continuous program power capacity
☑ 100° nominal coverage
☑ 75 - 20000 Hz response
☑ 94 dB sensitivity
☑ 34.5 mm (1.35”) HF unit exit diameter
close
| General | |
|---|---|
| Nominal Diameter | 210 mm (8 in) |
| Frequency Range | 75 Hz - 20000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 100 ° |
| Specifications LF unit | |
| Nominal Diameter | 210 mm (8 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 400 W |
| Voice Coil Diameter | 52 mm (2 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 94 dB |
| Winding Material | Copper |
| Winding Depth | 16.5 mm (0.65 in) |
| Flux Density | 1.05 T |
| Specifications HF unit | |
| Nominal Diameter | 210 mm (8 in) |
| Minimum Impedance | 7.7 Ω |
| Continuous Power Handling | 100 W |
| Recommended Crossover | 2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 50 W |
| Sensitivity | 103 dB |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Inductance | 0.11 mH |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Ferrite (LF) - Neodym. Ring (HF) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 76 Hz |
| Qes | 0.36 |
| Qts | 0.34 |
| Sd | 220 cm² (34.1 in²) |
| Xvar | 6 mm |
| Bl | 13 Tm |
| EBP | 211 Hz |
| Re | 5.1 Ω |
| Qms | 5 |
| Vas | 11.5 dm³ (0.4 ft³) |
| η0 | 1.4 % |
| Mms | 25 g |
| Le | 1 mH |
| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Flange and Gasket Thickness | 11 mm (0.4 in) |
| Shipping Weight | 4.6 kg (10.14 lb) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Depth | 129 mm (5.1 in) |
| Net Weight | 4 kg (8.82 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT008CXT8
Scheda dati
- Pollici
- 8
Nuovo
