Features
☑ 500 W continuous program power capacity
☑ 70° nominal coverage
☑ 70 - 18000 Hz response
☑ 97 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure

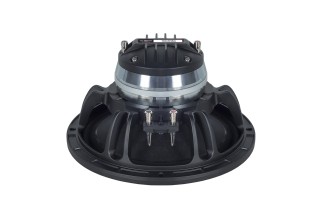

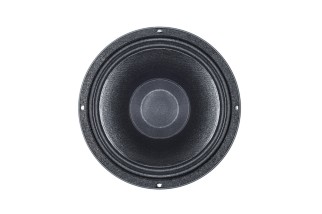

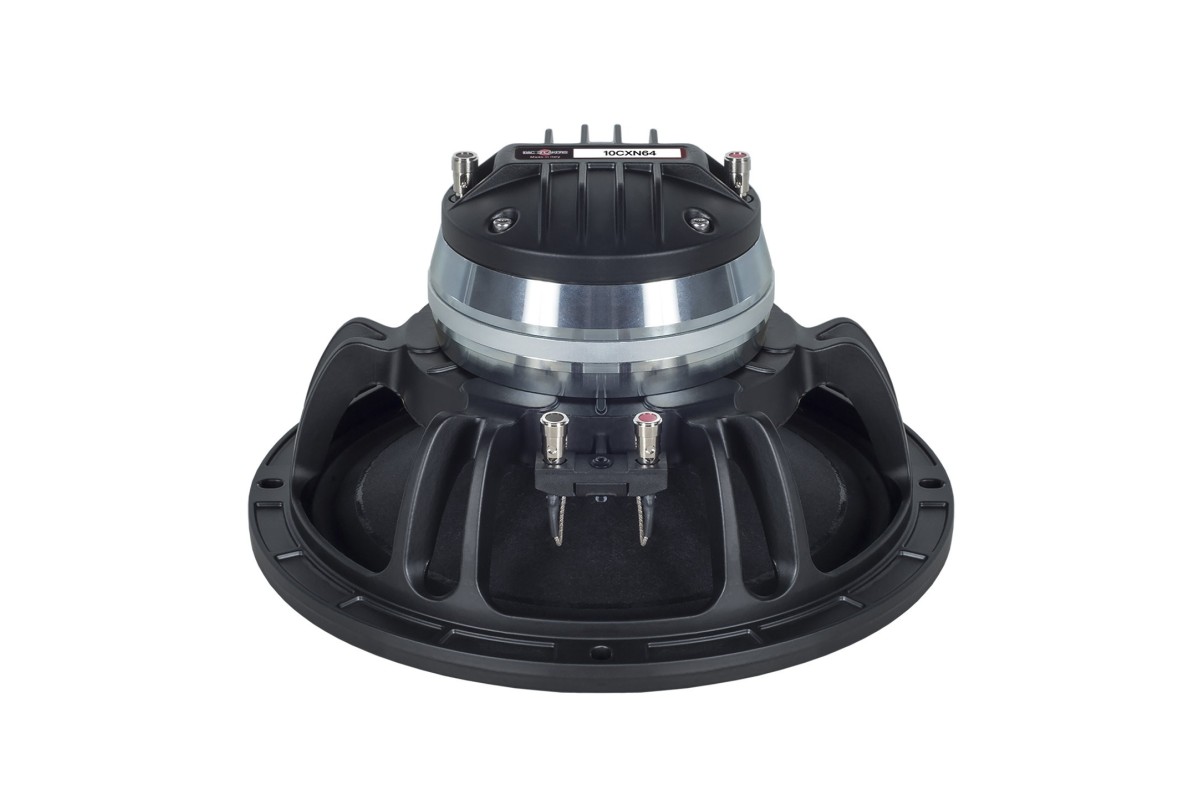

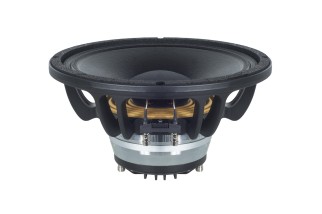

B&C 10CXN64
365,27 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 70° nominal coverage
☑ 70 - 18000 Hz response
☑ 97 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
close
| General Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |

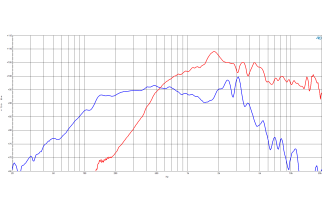

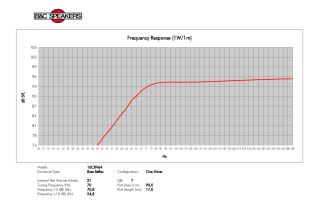

| Frequency Range | 70 Hz - 18000 Hz |

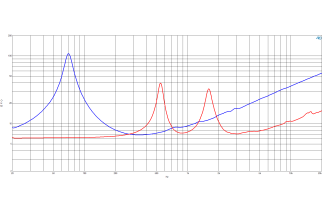

| Nominal Impedance | 8 Ω |

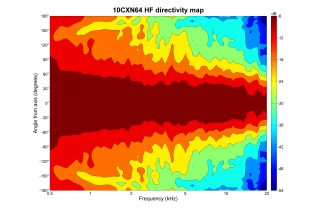

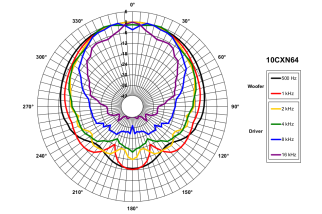

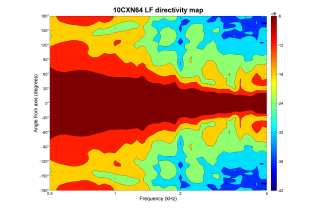

| Dispersion Angle | 70 ° |
| Specifications LF Unit | |
| Minimum Impedance | 6,7 Ω |
| Continuous Power Handling | 500 W |
| Nominal Power Handling | 250 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 64 mm (2,5 in) |
| Winding Material | Copper |
| Winding Depth | 15 mm (0,59 in) |
| Magnetic Gap Depth | 9 mm (0,35 in) |
| Flux Density | 1,1 T |
| Former Material | Kapton |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Specifications HF Unit | |
| Minimum Impedance | 7 Ω |
| Continuous Power Handling | 160 W |
| Nominal Power Handling | 80 W |
| Sensitivity | 103 dB |
| Recommended Crossover | 1,2 kHz |
| Voice Coil Diameter | 65 mm (2,5 in) |
| Winding Material | CCAW |
| Inductance | 0,15 mH |
| Diaphragm Material | Titanium |
| Flux Density | 1,75 T |
| Design & Materials | |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Thiele-Small Parameters | |
| Fs (Resonance Frequency) | 68 Hz |
| Re (DC Resistance) | 5,6 Ω |
| Qes / Qms / Qts | 0,33 / 5,6 / 0,31 |
| Vas (Equivalent Volume) | 23 dm³ (0,81 ft³) |
| Sd (Effective Cone Area) | 320 cm² (49,6 in²) |
| Xvar (Max Excursion) | 5 mm |
| Bl (Force Factor) | 15,8 Tm |
| Mms (Moving Mass) | 33,5 g |
| Le (Voice Coil Inductance) | 1,1 mH |
| EBP | 206 Hz |
| η0 (Efficiency) | 2,20% |

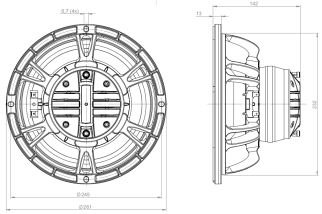

| Mounting & Shipping Info | |
| Overall Diameter | 261 mm (10,28 in) |
| Baffle Cutout Diameter | 233 mm (9,17 in) |
| Bolt Circle Diameter | 245 mm (9,65 in) |
| Flange & Gasket Thickness | 13 mm (0,51 in) |
| Depth | 142 mm (5,59 in) |
| Net Weight | 3,95 kg (8,71 lb) |
| Shipping Weight | 4,85 kg (10,69 lb) |
| Shipping Box | 360x360x200 mm |
ALT10CXN648
Scheda dati
- Pollici
- 10
Nuovo
