Features
☑ 700 W continuous program power capacity
☑ 80° nominal coverage
☑ 55 - 20000 Hz response
☑ 99 dB sensitivity
☑ 59.3 mm (2.33”) HF unit exit diameter
☑ FB12CX32 dedicated crossover network

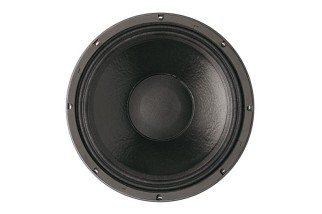

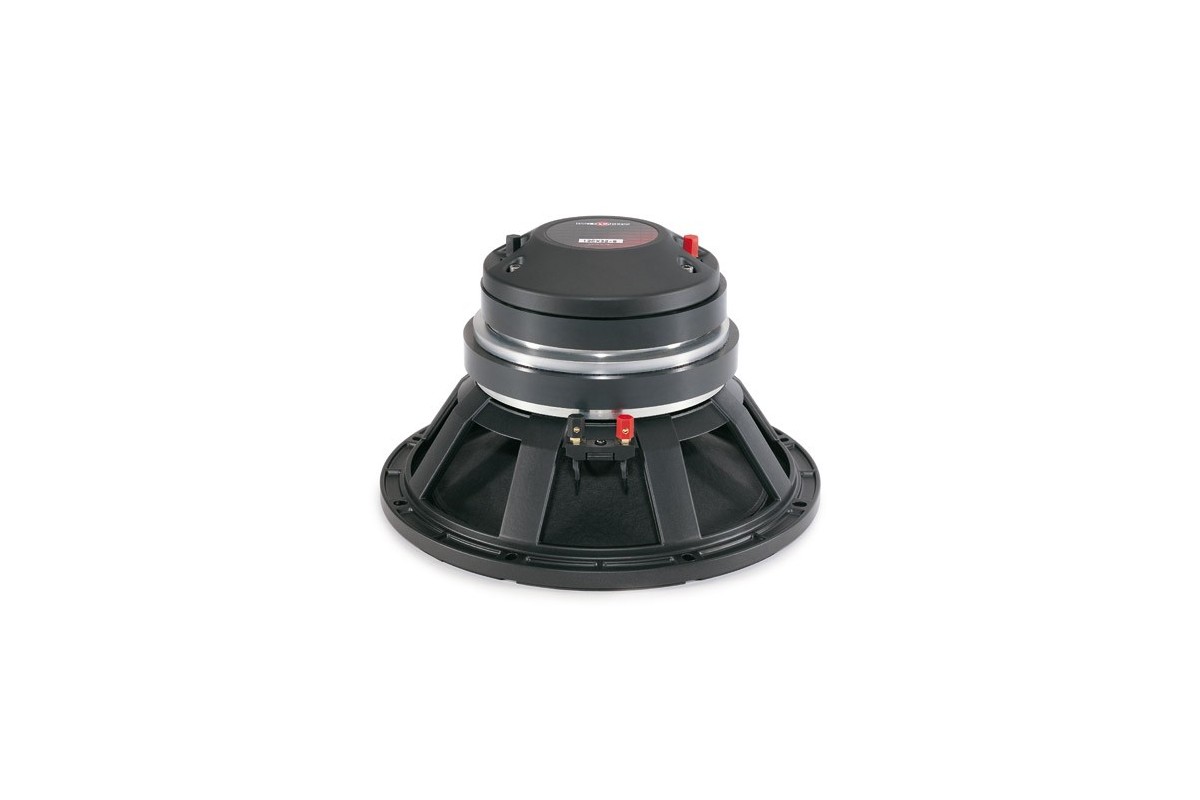

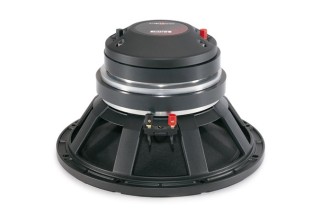

B&C 12CX32
453,84 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 700 W continuous program power capacity
☑ 80° nominal coverage
☑ 55 - 20000 Hz response
☑ 99 dB sensitivity
☑ 59.3 mm (2.33”) HF unit exit diameter
☑ FB12CX32 dedicated crossover network
close
| General | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |

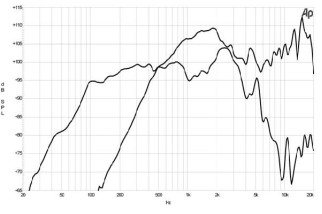

| Frequency Range | 55 Hz - 20000 Hz |

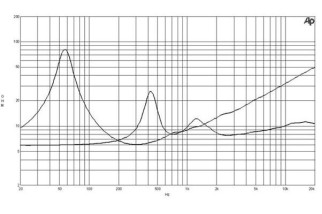

| Nominal Impedance | 8 Ω |

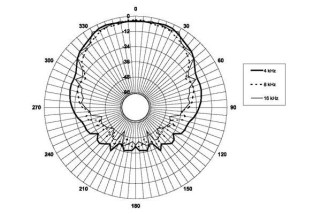

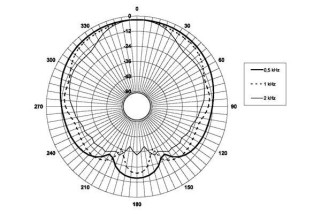

| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 700 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 99 dB |
| Winding Material | Aluminium |
| Specifications HF unit | |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 160 W |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 105 dB |
| Voice Coil Diameter | 75 mm (3 in) |
| Diaphragm Material | Titanium |
| Design | |
| Magnet Material | Ceramic |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 57 Hz |
| Qes | 0.3 |
| Qts | 0.28 |
| Sd | 522 cm² (80.9 in²) |
| Xvar | 6 mm |
| Bl | 15.3 Tm |
| EBP | 190 Hz |
| Re | 5.1 Ω |
| Qms | 5.2 |
| Vas | 79 dm³ (2.8 ft³) |
| η0 | 4.7 % |
| Mms | 38 g |
| Le | 1.2 mH |

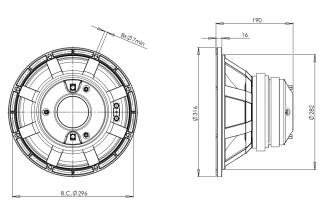

| Mounting and Shipping Info | |
| Overall Diameter | 316 mm (12.4 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 296 mm (11.6 in) |
| Depth | 190 mm (7.5 in) |
| Net Weight | 11.1 kg (24.47 lb) |
| Shipping Weight | 12.4 kg (27.34 lb) |
ALT012CX328
Scheda dati
- Pollici
- 12
Nuovo
