| WaveDynamics™ quad-channel power amplifier 4 x 500W |
| ☑ Lightweight class-D amplifier |
| ☑ Speakon compatible & terminal block output connections |
| ☑ RS232 control |
| ☑ Dante™/AES67 expansion port |
| ☑ XLR & terminal block input & linkthrough connections |
| ☑ Advanced DSP and loudspeaker management |
| ☑ 2.5" LCD display with intuitive user interface |
| ☑ WaveDynamics™ speaker & set configurations |

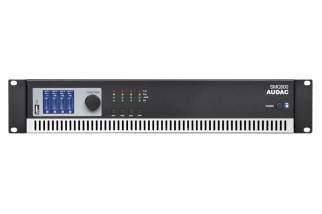

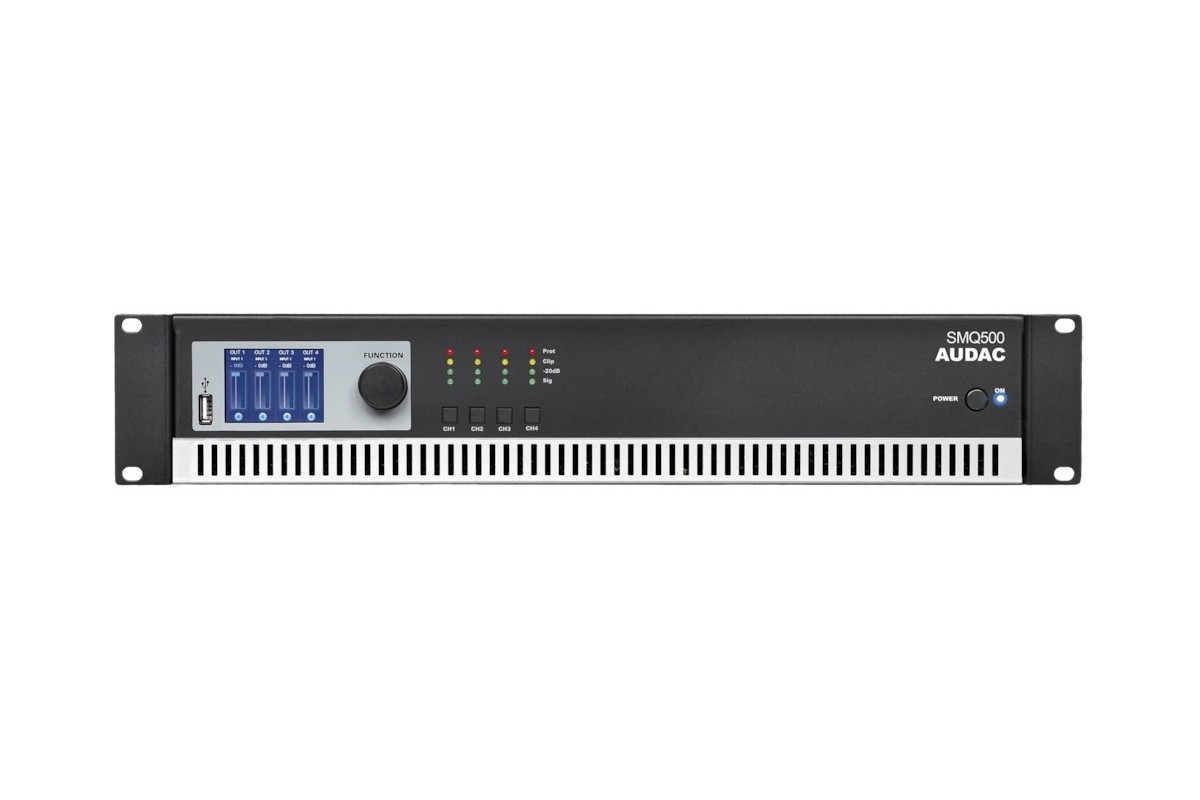

AUDAC SMQ-500
1.692,14 €
Tasse incluse
Spedizione 24/48h
| WaveDynamics™ quad-channel power amplifier 4 x 500W |
| ☑ Lightweight class-D amplifier |
| ☑ Speakon compatible & terminal block output connections |
| ☑ RS232 control |
| ☑ Dante™/AES67 expansion port |
| ☑ XLR & terminal block input & linkthrough connections |
| ☑ Advanced DSP and loudspeaker management |
| ☑ 2.5" LCD display with intuitive user interface |
| ☑ WaveDynamics™ speaker & set configurations |
close
| Technical specifications | ||
|---|---|---|
| Continuous power (AES) | @ 4 Ω Stereo | 4 x 500 W |
| @ 8 Ω Stereo | 4 x 300 W | |
| @ 8 Ω Bridge | 2 x 1000 W | |
| Frequency | Response (± 3 dB) | 20 Hz - 20 kHz |
| Signal / Noise | > 95 dB | |
| THD+N (@ 1 kHz) | < 0.05% (1/2 Rated Power) | |
| Crosstalk (@ 1 kHz) | > 70 dB | |
| Technology | Class-D | |
| Inputs | Sensitivity | -19.5 dB ~ 27 dB |
| Impedance | 10 kΩ balanced | |
| Connector | XLR & 3-pin Euro Terminal Block (3.81 mm) | |
| Outputs | Connector | Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) |
| Common mode rejection ratio | 70 dB | |
| Damping factor | > 200 | |
| Protection | Amplifier | DC Short circuit |
| Over heating | ||
| Over load | ||
| Signal limiting | ||
| Loudspeaker | Power limiter | |
| Access | User & Administrator level (Through password and USB-key protection) | |
| Cooling | Temperature controlled fan | |
| Operating temperature | 0° ~ 40° @ 95% Humidity | |
| Power | Supply | Switching mode |
| AC Input: 100-120V/220-240V~ 50/60Hz | ||
| Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | ||
| Product Features | ||
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |
| Weight | 8.250 kg | |
| Mounting | 19” | |
| Unit height | 2 HE | |
| Construction | Steel | |
| Colours | Black | |
SMQ500
1 Articolo
Scheda dati
- Canali
- 4
Riferimenti specifici
- ean13
- 5414795034235
