Il DZR-D è un diffusore a 2 vie bi-amplificato dotato di Dante che offre una limpidezza superiore e un notevole SPL massimo di 139dB. Con il migliore SPL della sua classe, un raffinato processamento DSP, e un'inarrivabile qualità sulle basse frequenze, il DZR10 produce un suono professionale con una potenza che contraddice il suo design compatto e leggero.
☑ 2-way powered loudspeaker with a 2” HF and a 10" LF
☑ Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
☑ High power 2000W Class-D amplifier module
☑ 96kHz DSP and FIR filter for true high-resolution sound with super low latency
☑ Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
☑ Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
☑ Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
☑ D-Contour and highly reliable protection circuits
☑ Floor monitoring setting
☑ Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
☑ Optional speaker cover(SPCVR-DZR10)
☑ Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
☑ Durable Black or white finish

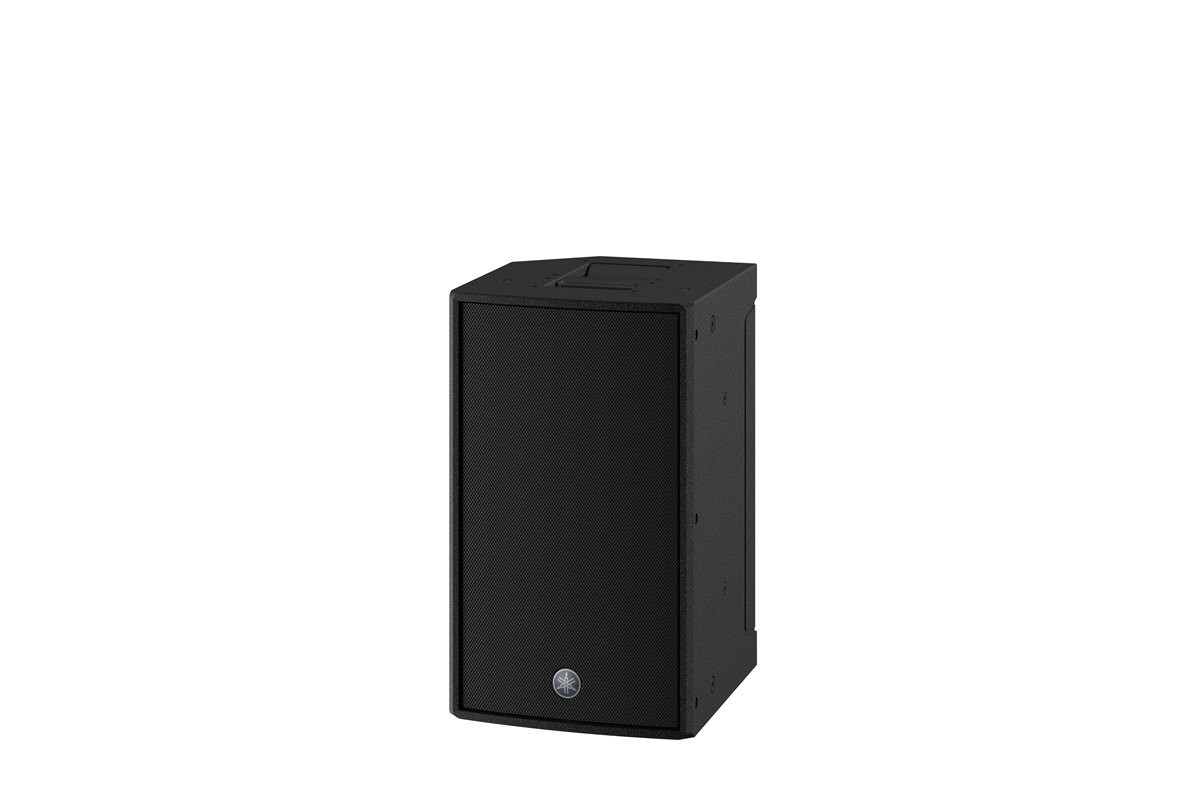

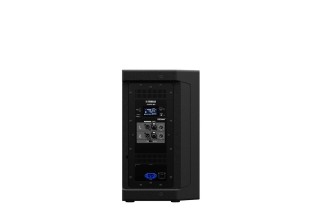

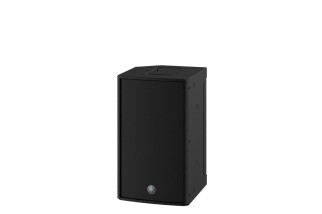

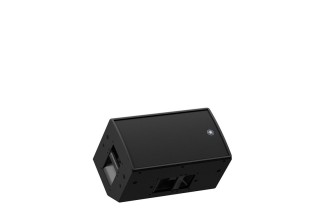

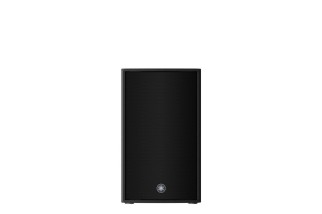

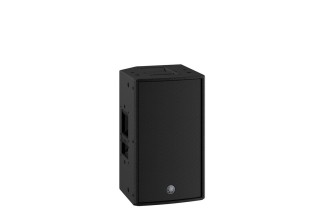

YAMAHA DZR10
1.139,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Il DZR-D è un diffusore a 2 vie bi-amplificato dotato di Dante che offre una limpidezza superiore e un notevole SPL massimo di 139dB. Con il migliore SPL della sua classe, un raffinato processamento DSP, e un'inarrivabile qualità sulle basse frequenze, il DZR10 produce un suono professionale con una potenza che contraddice il suo design compatto e leggero.
☑ 2-way powered loudspeaker with a 2” HF and a 10" LF
☑ Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
☑ High power 2000W Class-D amplifier module
☑ 96kHz DSP and FIR filter for true high-resolution sound with super low latency
☑ Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
☑ Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
☑ Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
☑ D-Contour and highly reliable protection circuits
☑ Floor monitoring setting
☑ Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
☑ Optional speaker cover(SPCVR-DZR10)
☑ Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
☑ Durable Black or white finish
close
| General specifications | Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
|---|---|---|---|
| Frequency range (-10dB) | 44Hz - 20kHz | ||
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) | ||
| Components | LF | 10" Cone, 3" Voice Coil, Neodymium magnet | |
| MF | - | ||
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | ||
| Crossover | 1.8kHz (FIR-X) | ||
| Sampling frequency rate | Internal | 96kHz and FIR Filter | |
| A/D D/A Converters | 96kHz AD/DA | ||
| Maximum output level (1m; on axis) | 137dB SPL *1 | ||
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) *2 | |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | ||
| Continuous | 950W (LF: 850W, MF/HF: 100W) | ||
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | ||
| AC | IEC AC inlet x1 (V-Lock) | ||
| Amplifier class | Class-D | ||
| Cooling | Fan cooling, Variable speeds | ||
| Power consumption | 45W (Idle), 150W (1/8) | ||
| Handle | Aluminium die-cast, Top x1, Side x1 | ||
| Rigging | M10 x8, M8 x2 | ||
| Dimensions | W | 315 mm (12.4") | |
| H | 537 mm (21.1") (with rubber feet) | ||
| D | 345 mm (13.6") | ||
| Net weight | 17.9kg (39.5lbs) | ||
| Options | U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 | ||
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | ||
| Floor Monitor Angle | 50° | ||
| Pole socket | Φ35 mm x2 (0° or -7°) | ||
DZR10
Scheda dati
- Pollici
- 10
Nuovo
