Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.

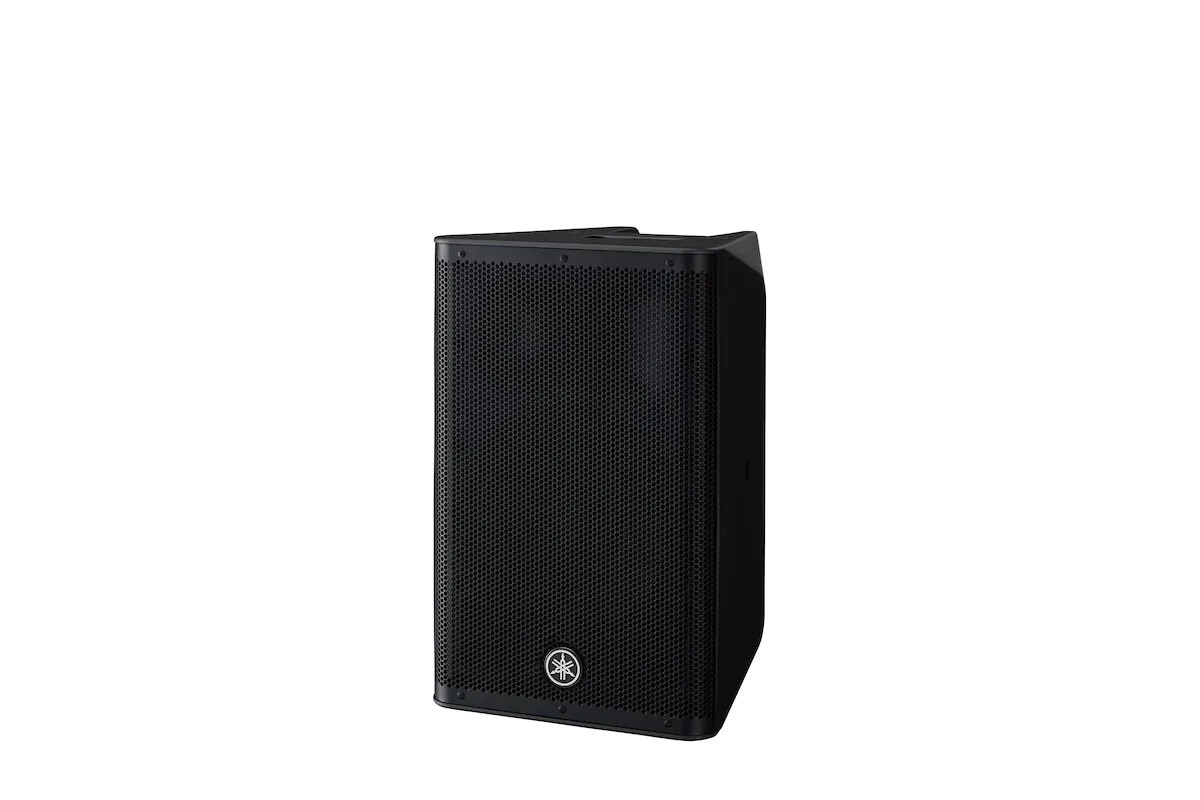

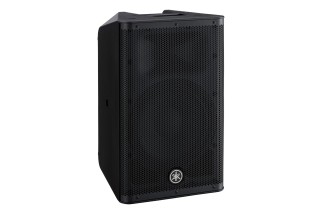

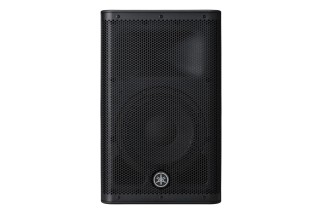

YAMAHA DXR10MKII
829,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
close
| General specifications | Speaker type | 10" 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|---|
| Frequency range (-10dB) | 56Hz - 20kHz | ||
| Nominal coverage | H | 90° | |
| V | 60° | ||
| Components | LF | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite | |
| HF | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium | ||
| Crossover | FIR-X tuning™ (linear phase FIR filter) | ||
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | ||
| Maximum output level (1m; on axis) | 132dB SPL | ||

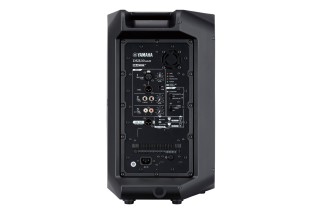

| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | ||
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | ||
| Power requirements | 100V - 240V, 50Hz/60Hz | ||
| Power consumption | 90W | ||
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | ||
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | ||
| Dimensions | W | 305mm (12") | |
| H | 502mm (19 6/8") | ||
| D | 310mm (12 2/8") | ||
| Net weight | 13.9kg (30.6lbs) | ||
| Accessories | UB-DXR10 (U-bracket) | ||
| Others | Material: ABS (Matte Finish, Black) | ||
DXR10MKII
Scheda dati
- Pollici
- 10
