The DSR115 is a compact, high-power 15" 2-way active loudspeaker system capable of achieving 136dB maximum peak SPL output. Equipped with high performance 48-bit DSP and top quality 1300W (LF 850W, HF 450W) Class-D amplifiers, it delivers sound with resolution at the highest level in its class and superb SPL performance. The DSR115 is perfect for live sound and installation applications that demand bass with extra punch and depth together with accurate high frequency response.
☑ Ultra-precise 48-bit digital sound processing
☑ D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
☑ All-new 1300W Class-D amplifiers with PFC switching mode power supply
☑ Maximum SPL 136dB peak
☑ Extensive protection of the transducers, amplifiers and power supply from high performance DSP
☑ Premium-grade, custom-designed transducers
☑ Exclusive 90° × 60° CD Waveguide Horn
☑ Compact and lightweight (28.0kg / 62lbs)
☑ Stand and pole mountable, with 35mm pole sockets
☑ Integrated M10 rigging points for suspended applications

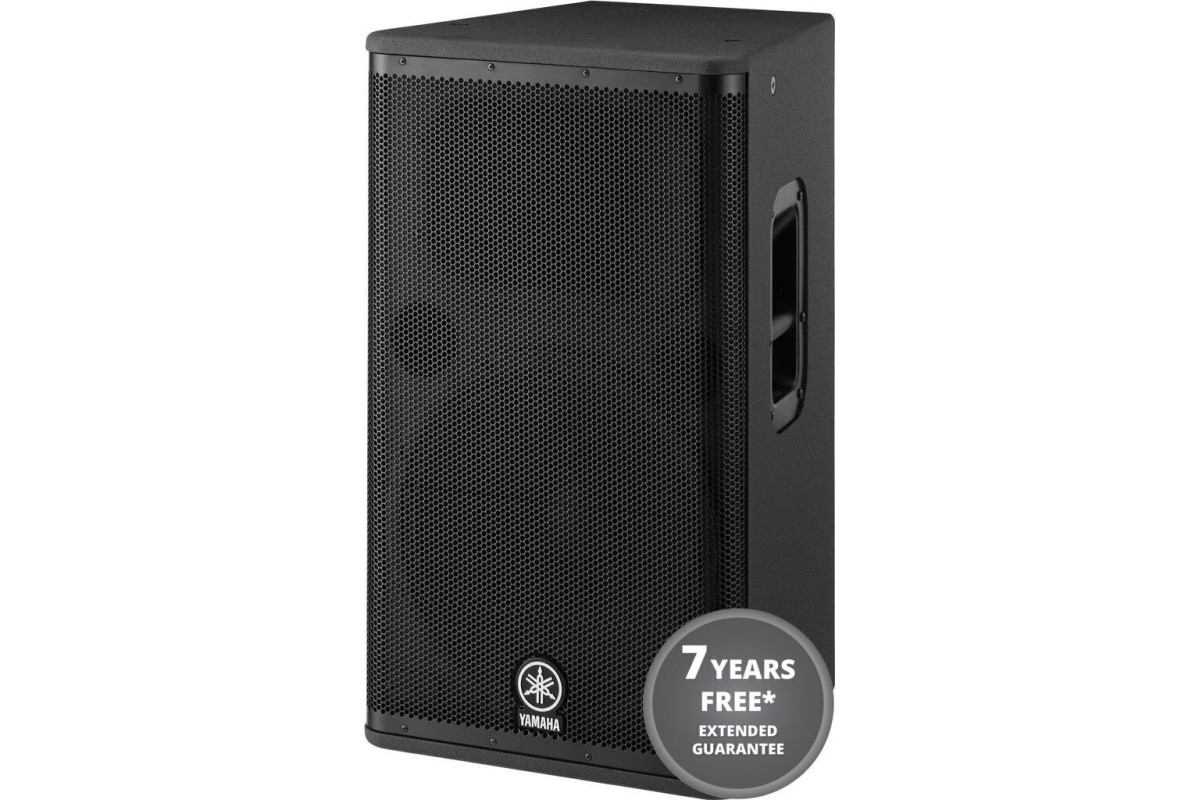

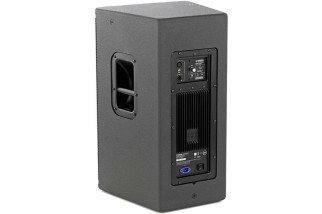

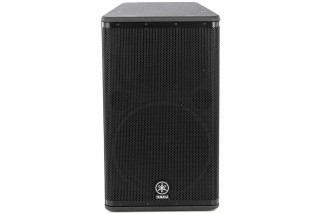

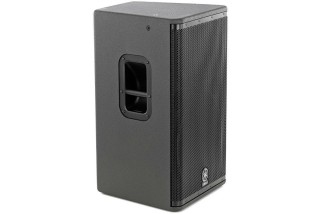

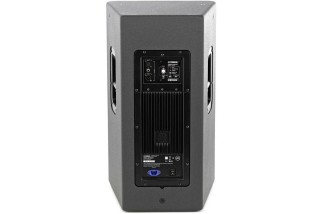

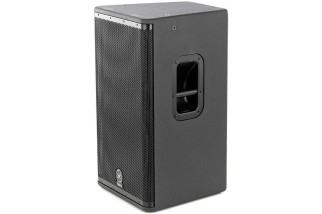

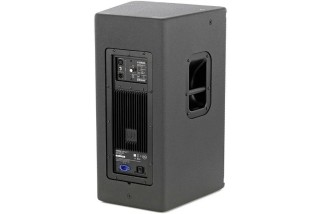

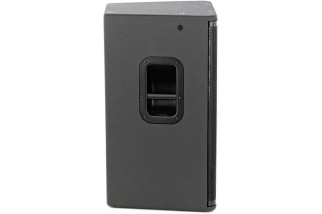

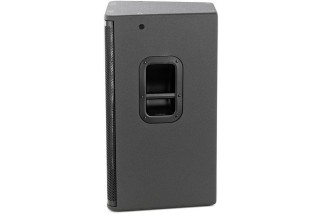

Yamaha DSR115
900,00 €
Tasse incluse
Spedito entro 5/7 Giorni
The DSR115 is a compact, high-power 15" 2-way active loudspeaker system capable of achieving 136dB maximum peak SPL output. Equipped with high performance 48-bit DSP and top quality 1300W (LF 850W, HF 450W) Class-D amplifiers, it delivers sound with resolution at the highest level in its class and superb SPL performance. The DSR115 is perfect for live sound and installation applications that demand bass with extra punch and depth together with accurate high frequency response.
☑ Ultra-precise 48-bit digital sound processing
☑ D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
☑ All-new 1300W Class-D amplifiers with PFC switching mode power supply
☑ Maximum SPL 136dB peak
☑ Extensive protection of the transducers, amplifiers and power supply from high performance DSP
☑ Premium-grade, custom-designed transducers
☑ Exclusive 90° × 60° CD Waveguide Horn
☑ Compact and lightweight (28.0kg / 62lbs)
☑ Stand and pole mountable, with 35mm pole sockets
☑ Integrated M10 rigging points for suspended applications
close
| General specifications | Speaker type | 15" 2-way, Bi-amp powered Speaker, Bass-reflex Type | |
|---|---|---|---|
| Frequency range (-10dB) | 45Hz ~ 20kHz | ||
| Frequency response (-3dB) | 55Hz ~ 18kHz | ||
| Nominal coverage | H | 90° | |
| V | 60° | ||
| Components | LF | 15" cone | |
| HF | 2" Titanium diaphragm compression driver | ||
| Crossover | FIR-X tuning (linear phase FIR filter) | ||
| Output power | Dynamic: 1500W (LF: 1020W, HF: 480W), Continuous: 1300W (LF: 850W HF: 450W) | ||
| Maximum output level (1m; on axis) | 136dB SPL | ||

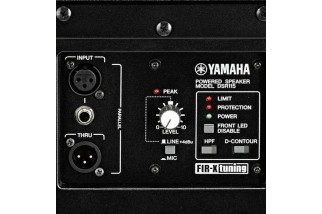

| I/O connectors | INPUT:XLR-3-31 x1 (Balanced) TRS Phone Jack x1 (Balanced), OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT | ||
| Processors | D-CONTOUR (Dynamic CONTOUR) | ||
| Power consumption | 100W | ||
| Dimensions | W | 442mm (17 4/8") | |
| H | 755mm (29 6/8") | ||
| D | 423mm (16 4/8") | ||
| Net weight | 28.0kg (62lbs) | ||
| Flying and mounting hardware | 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc) | ||
| Pole socket | 35mm (Bottom Board) | ||
DSR115
Scheda dati
- Pollici
- 15
Riferimenti specifici
- ean13
- 4957812487108
