QUASI 3-WAY ACTIVE SPEAKER
1050 W RMS CLASS-D DIGIPRO® G2
MAX SPL 132.5 dB
FREQUENCY RESPONSE [-6dB]: 60 - 19.100 Hz
HF: 1x 1”, 1.75" v.c.
LF: 2x 10”, 2.5" v.c NEODYMIUM
WEIGHT: 17.2 kg (37 lbs)
COVER INCLUDED

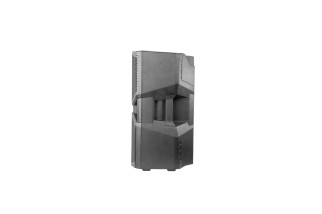

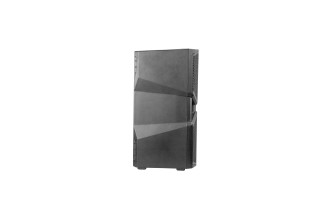

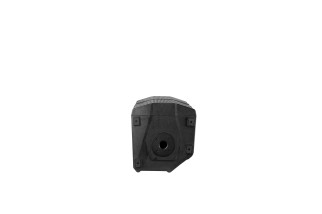

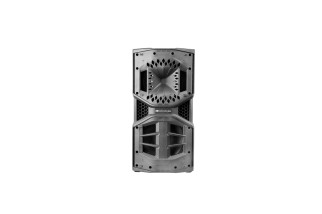

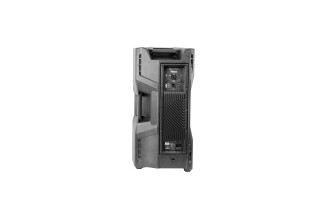

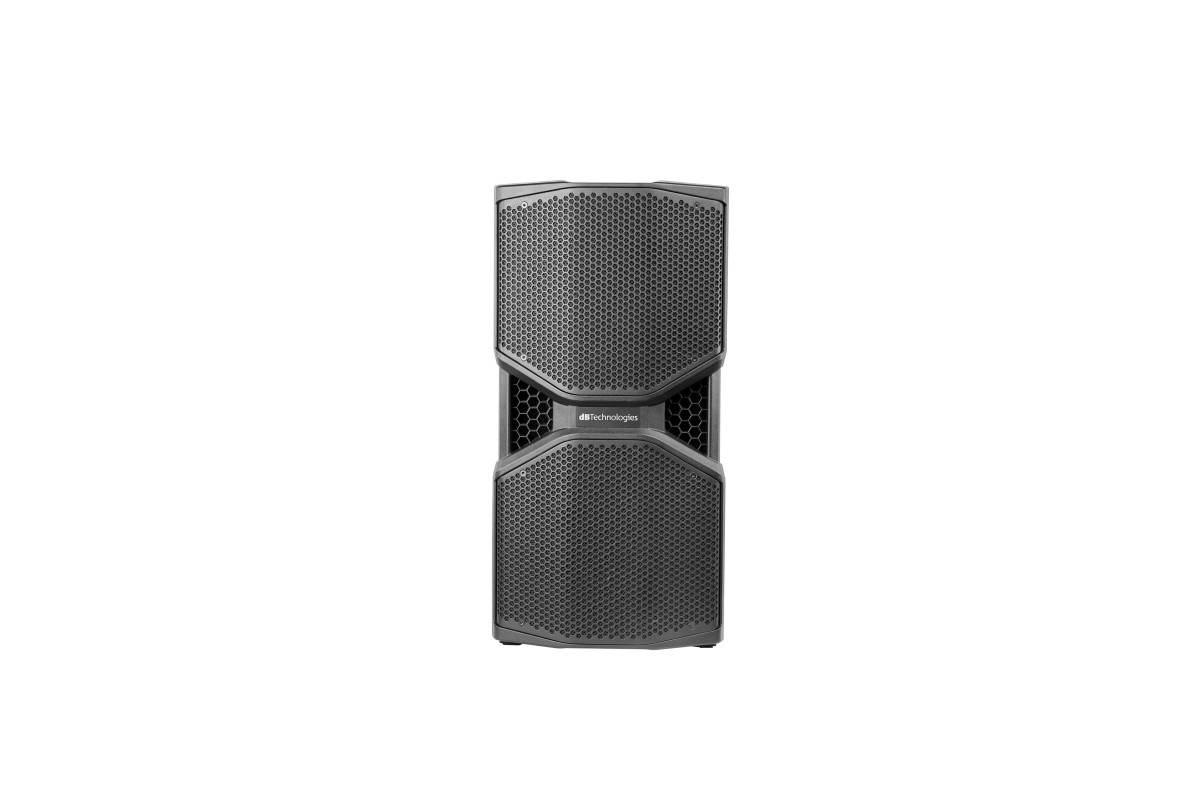

dB TECHNOLOGIES OPERA REEVO 210
1.050,00 €
Tasse incluse
Spedito entro 5/7 Giorni
QUASI 3-WAY ACTIVE SPEAKER
1050 W RMS CLASS-D DIGIPRO® G2
MAX SPL 132.5 dB
FREQUENCY RESPONSE [-6dB]: 60 - 19.100 Hz
HF: 1x 1”, 1.75" v.c.
LF: 2x 10”, 2.5" v.c NEODYMIUM
WEIGHT: 17.2 kg (37 lbs)
COVER INCLUDED
close
| Dati tecnici | |
|---|---|
| Speaker Type | Quasi 3-Way Active Speaker |
| Dati acustici | |
| Frequency Response [-10dB] | 52 - 19.200 Hz |
| Frequency Response [- 6dB] | 60 - 19.200 Hz |
| Max SPL | 132.5 dB |
| HF | 1" Exit CD, 1.75" v.c. |
| Type HF | Compression driver |
| Horizontal Directivity | 100° |
| Vertical Directivity | 90° |
| Horn | Asymmetrical Horn |
| LF | 2x 10" Neo, 2.5" v.c. |
| Amplificatore | |
| Amp Technology | Digipro G2 with SMPS |
| Amp Class | Class D |
| RMS Power | 1050 W (525W + 525W) |
| Peak Power | 2100 W (1050W + 1050W) |
| Processore | |
| Controller | DSP 28/56 bit |
| AD/DA Converter | 24 bit/48 KHz |
| CrossOver Frequency | 1260 Hz |
| Limiter | Peak, RMS, Thermal |
| Advanced DSP Functions | Linear Phase FIR Filters |
| Input Section | |
| Signal Input | 1x Combo (XLR/Jack 6.3 mm) Line |
| Signal Output | 1x XLR Male (True link) |
| Controls | Gain (rotary) |
| Preset (Flat, Playback, Wedge) | |
| Meccanica | |
| Housing | Polyproylene |
| Grille | Full grille |
| Handles | 1 on left Side, 1 on Top |
| Rigging Points | 2x M10 on Top + 1x M10 on Back |
| Pole Mount | D36 mm |
| Width | 300 mm (11.81 in) |
| Height | 604 mm (23.78 in) |
| Depth | 324 mm (12.76 in) |
| Weight | 17.2 kg (37 lbs) |
