| 2-WAY ACTIVE LINE ARRAY MODULE |
| 900 W RMS DIGIPRO® G3 AMPLIFIER |
| 133.5 dB MAX SPL |
| USABLE BANDWIDTH [- 6 dB] 75 Hz - 20 KHz |
| HF: 1x1.4" exit, 3" v.c., NEODYMIUM |
| LF: 2 x 8”, 2” v.c. - NEODYMIUM |

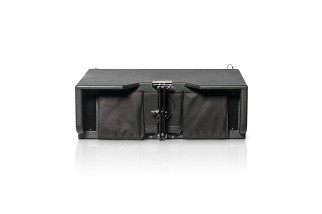

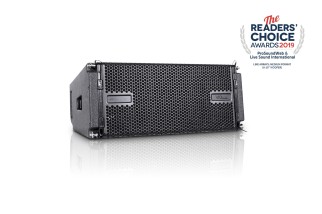

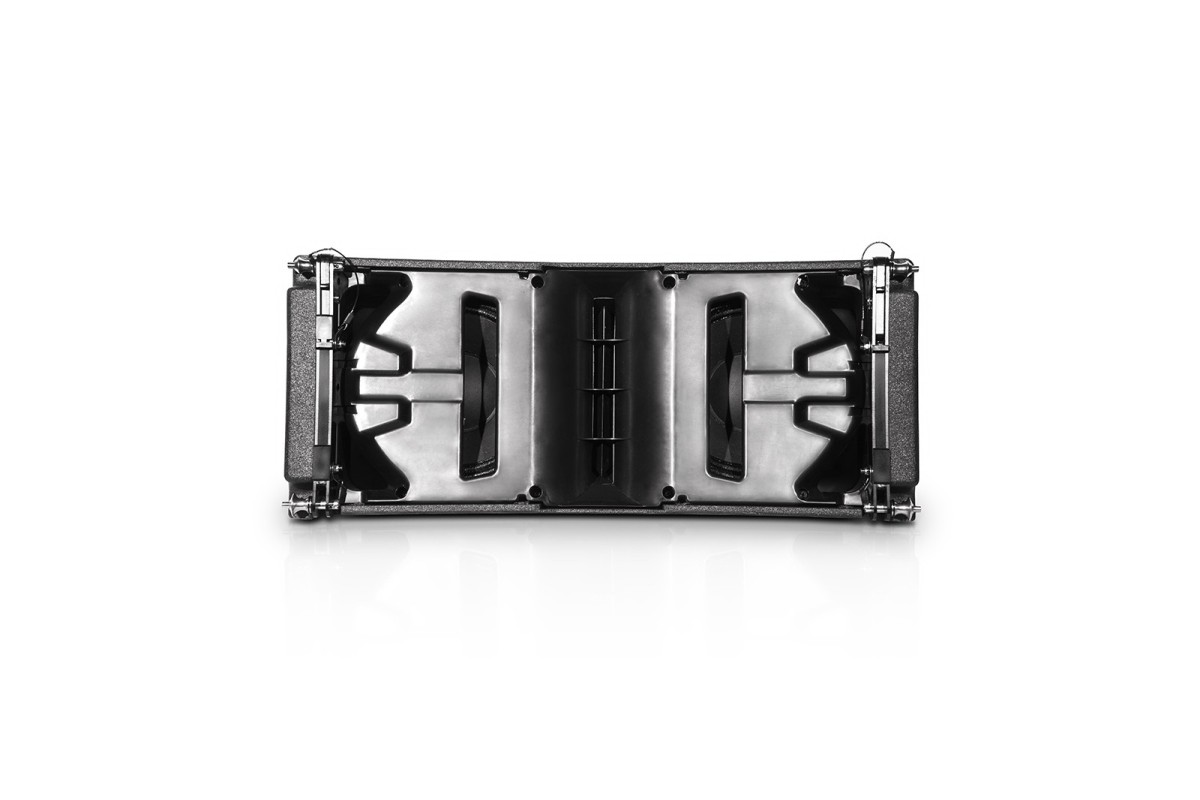

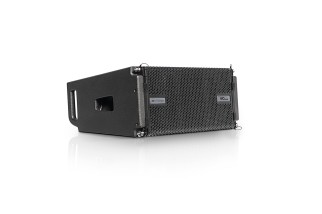

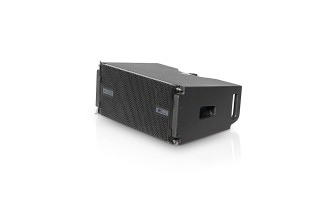

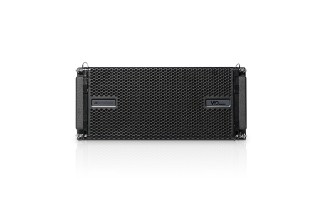

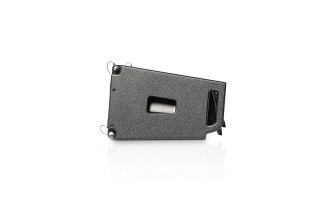

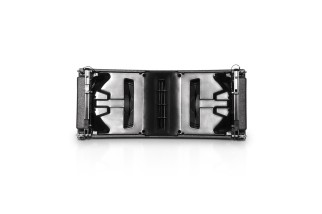

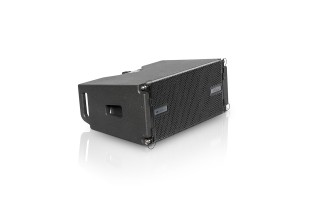

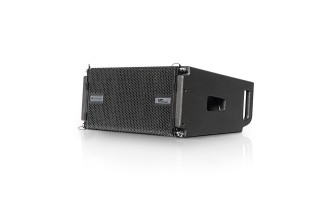

dB Technologies VIO L208 – Sistema Line Array Attivo Compatto per Live e Touring Professionale
3.000,00 €
Tasse incluse
Spedito entro 5/7 Giorni
| 2-WAY ACTIVE LINE ARRAY MODULE |
| 900 W RMS DIGIPRO® G3 AMPLIFIER |
| 133.5 dB MAX SPL |
| USABLE BANDWIDTH [- 6 dB] 75 Hz - 20 KHz |
| HF: 1x1.4" exit, 3" v.c., NEODYMIUM |
| LF: 2 x 8”, 2” v.c. - NEODYMIUM |
close
| Dati tecnici | |
|---|---|
| Speaker Type | 2-way Active Line Array Module |
| Dati acustici | |
| Usable Bandwidth [- 6 dB] | 75 Hz - 20 KHz |
| Frequency Response [+/- 3dB] | 85 Hz -18,1 KHz |
| Max SPL | 133.5 dB |
| HF | 1x1.4" |
| Voice Coil HF | 3" |
| Type HF | Neodymium |
| LF | 2x8" |
| Voice Coil LF | 2" |
| Type LF | Neodymium |
| Horizontal Directivity | 100° |
| Vertical Directivity | depends on array size and configuration |
| Amplificatore | |
| Amp Technology | Digipro G3 [bi-amped] |
| Amp Class | Class-D |
| Power RMS | 900 W |
| Peak Power | 1800 W |
| Cooling | Convection |
| Power Supply | 900 W SMPS with Auto-range PSU |
| Processore | |
| Controller | DSP 28/56 bit |
| AD/DA Converter | 24 bit/48 KHz |
| Limiter | Dual Active Peak, RMS, Thermal |
| Processing (filters) | FIR Linear Phase Filters |
| Crossover Frequency LF-HF | 1000 Hz |
| Input Section | |
| Signal Input | 1xXLR fem, Bal. |
| Signal Output | 1xXLR male, Bal. |
| Network | RDNet remote control RJ45 connector IN/OUT |
| Mains Connections | 1x PowerCON TRUE1 In |
| 1x PowerCON TRUE1 Out | |
| Controls | 1xSpeakers Coupling (7 presets) |
| 1x HF Compensation (8 presets) | |
| 1XInput Attenuation Rotary Switch | |
| Meccanica | |
| Housing | Multiplex Plywood |
| Polyurea painted | |
| Handles | 1 x Side, 2 on back |
| Rain Cover | Included |
| Rigging Points | Integrated 3-point flying hardware |
| Width | 600 mm (23.62 in) |
| Height | 260 mm (10.23 in) |
| Depth | 390 mm (15.35 in) |
| Weight | 18.1 Kg (39.9 lbs) |
VIO L208
Scheda dati
- Pollici
- 8
