Caratteristiche
☑ 132 dB Max SPL
☑ 3500 W Class-D Amplifier - Built-In DSP
☑ 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
☑ 12 × 3” Full-Range Neo Transducers
☑ 12” High-Power Woofer
☑ Enhanced Coverage And Clarity
☑ Composite Cabinet With Aluminum Stand Mount
☑ Sleek, Road-Ready Design
☑ Top Speaker Padded Carrying Bag Included
EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

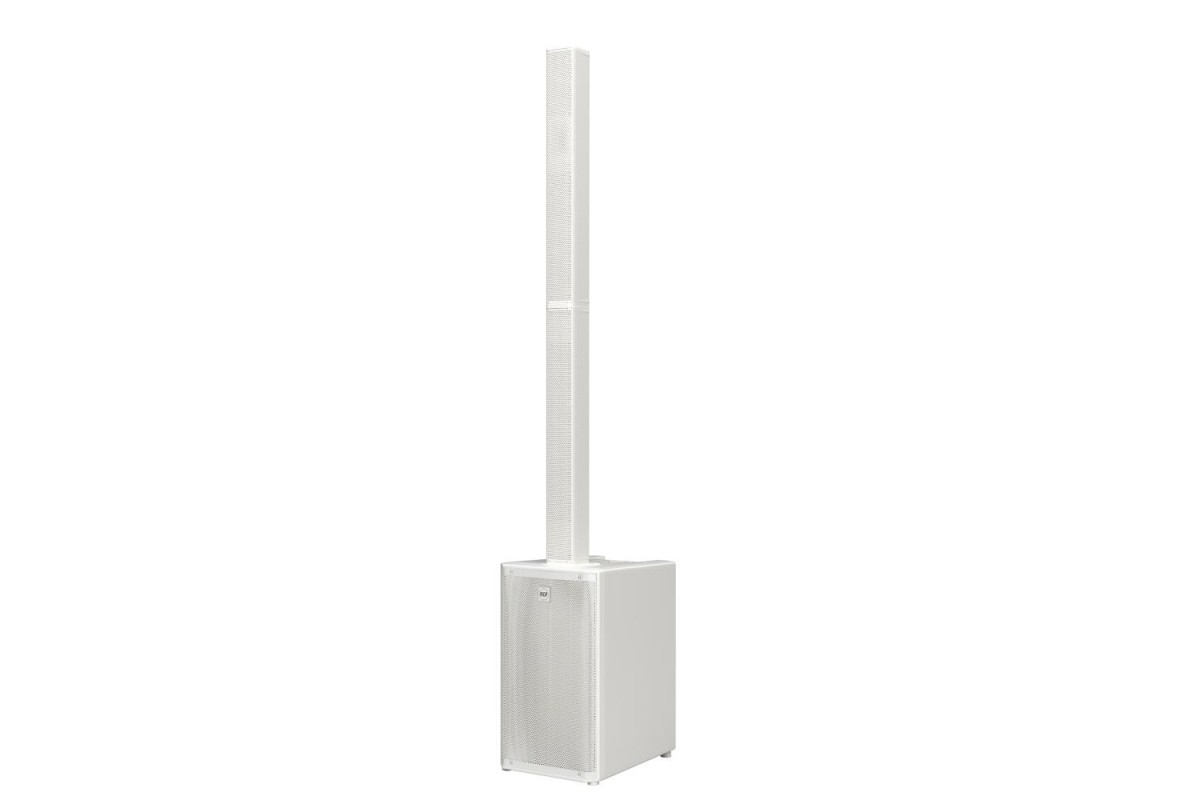

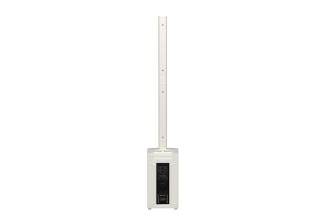

RCF Evox J11
1.699,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 132 dB Max SPL
☑ 3500 W Class-D Amplifier - Built-In DSP
☑ 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
☑ 12 × 3” Full-Range Neo Transducers
☑ 12” High-Power Woofer
☑ Enhanced Coverage And Clarity
☑ Composite Cabinet With Aluminum Stand Mount
☑ Sleek, Road-Ready Design
☑ Top Speaker Padded Carrying Bag Included
EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
close
Acoustical specifications
Frequency Response: 37 Hz - 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver:1 x 0.75'' neo, 1.75'' v.c
Fullrange:12 x 3.0'' neo, 1.0'' v.c
Woofer:1 x 12'', 2.5'' v.c
Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: +4 dBu
Processor section
Crossover Frequencies: 160 Hz/1800 Hz
Protections: Thermal, RMS
Limiter Soft Limiter
Controls:Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power: 3500 W Peak
High frequencies: 1500 W Peak
Low frequencies: 2000 W Peak
Cooling Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap:Quick-fit socket
Grille: Steel
Color: Black, White - RAL 9003
Size / Weight
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 463 mm / 18.23 inches
Weight: 29 kg / 63.93 lbs
Shipping information
Package Height: 676 mm / 26.61 inches
Package Width: 451 mm / 17.76 inches
Package Depth: 581 mm / 22.87 inches
Package Weight: 35 kg / 77.16 lbs
EVOX J11 W
Scheda dati
- Pollici
- 3
Riferimenti specifici
- ean13
- 8024530024451
