Caratteristiche
☑ 130 dB Max SPL
☑ 2100 W Class-D Amplifier - Built-In DSP
☑ 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
☑ 6 × 3” Full-Range Neo Transducers
☑ 12” High-Power Woofer
☑ Enhanced Coverage And Clarity
☑ Composite Cabinet With Aluminum Stand Mount
☑ Sleek, Road-Ready Design
☑ Top Speaker Padded Carrying Bag Included
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

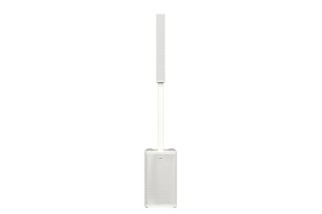

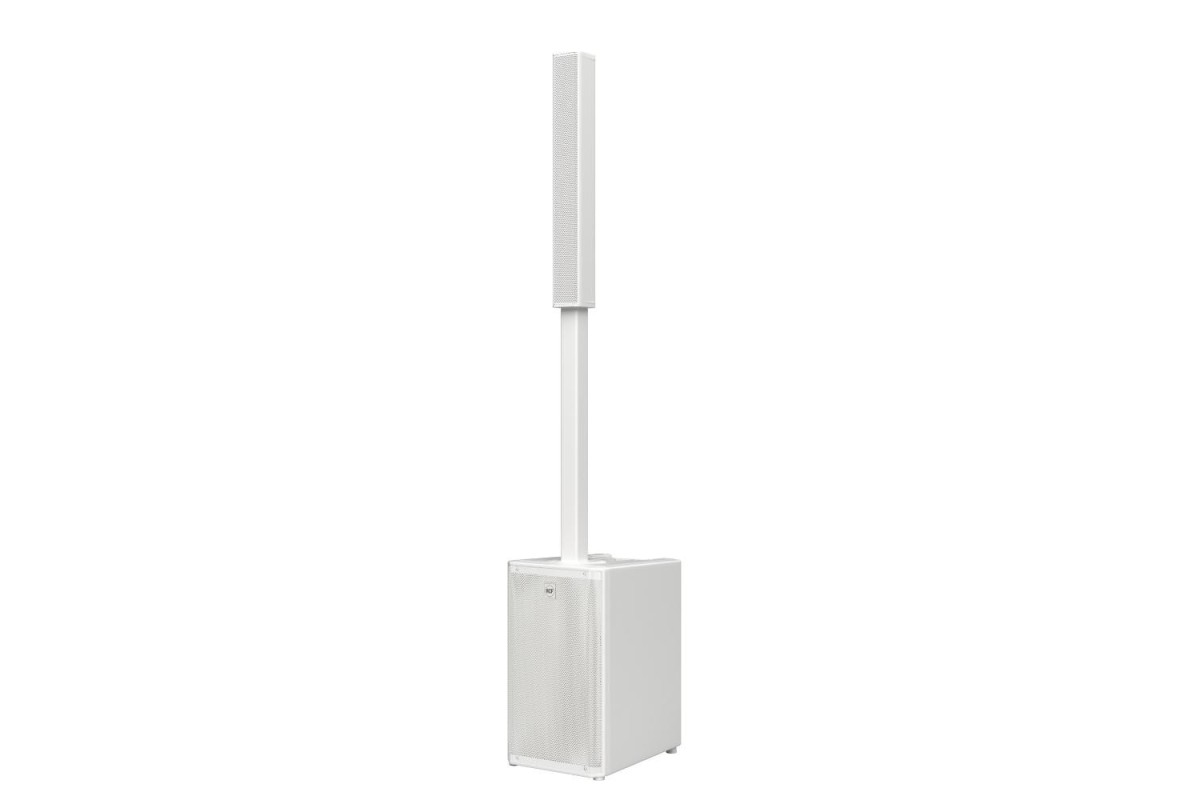

RCF EVOX J9 – Sistema Audio a Colonna Attivo Professionale
1.399,00 €
Tasse incluse
Caratteristiche
☑ 130 dB Max SPL
☑ 2100 W Class-D Amplifier - Built-In DSP
☑ 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
☑ 6 × 3” Full-Range Neo Transducers
☑ 12” High-Power Woofer
☑ Enhanced Coverage And Clarity
☑ Composite Cabinet With Aluminum Stand Mount
☑ Sleek, Road-Ready Design
☑ Top Speaker Padded Carrying Bag Included
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
close
| Specifiche acustiche |
|---|
| Risposta in Frequenza: 40 Hz - 20000 Hz |
| Max SPL @ 1m: 130 dB |
| Angolo di copertura orizzontale: 120° |
| Angolo di copertura verticale: 40° |
| Trasduttori |
| Driver a compressione: 1 x 0.75'' neo, 1.75'' v.c |
| Fullrange: 6 x 3.0'' neo, 1.0'' v.c |
| Woofer: 1 x 12'', 2.5'' v.c |
| Sezione Input/Output |
| Segnale di Ingresso: bal/unbal |
| Connettori in ingresso: Combo XLR/Jack |
| Connessioni di uscita: XLR |
| Sensibilità di ingresso: -2 dBu/+4 dBu |
| Sezione del processore |
| Frequenza di crossover: 200 Hz/1800 Hz |
| Protezioni: Thermal, RMS |
| Limiter: Soft Limiter |
| Controlli Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| Sezione di potenza |
| Potenza Totale: 2100 W Peak |
| Alte Frequenze: 700 W Peak |
| Basse frequenze: 1400 W Peak |
| Raffreddamento: Convection |
| Connessioni: VDE |
| Conformità agli standard |
| Standard di sicurezza: CE compliant |
| Specifiche fisiche |
| Materiale Cabinet/Case: PP Composite |
| Maniglie: 1 Top |
| Pole mount/Cap: Quick-fit socket |
| Griglia Steel |
| Colore: Black, White - RAL 9003 |
| Dimensioni / Peso |
| Altezza: 2080.1 mm / 81.89 inches |
| Larghezza: 350 mm / 13.78 inches |
| Profondità: 462.6 mm / 18.21 inches |
| Peso: 28.3 kg / 62.39 lbs |
| Informazioni di spedizione |
| Altezza imballaggio: 680 mm / 26.77 inches |
| Larghezza imballaggio: 490 mm / 19.29 inches |
| Profondità imballaggio: 460 mm / 18.11 inches |
| Peso imballaggio:32 kg / 70.55 lbs |
EVOX J9 W
Scheda dati
- Pollici
- 3
Riferimenti specifici
- ean13
- 8024530024437
