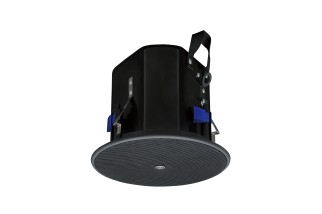

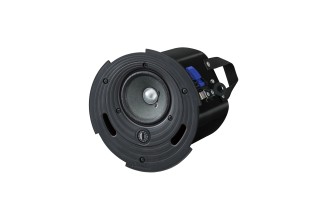

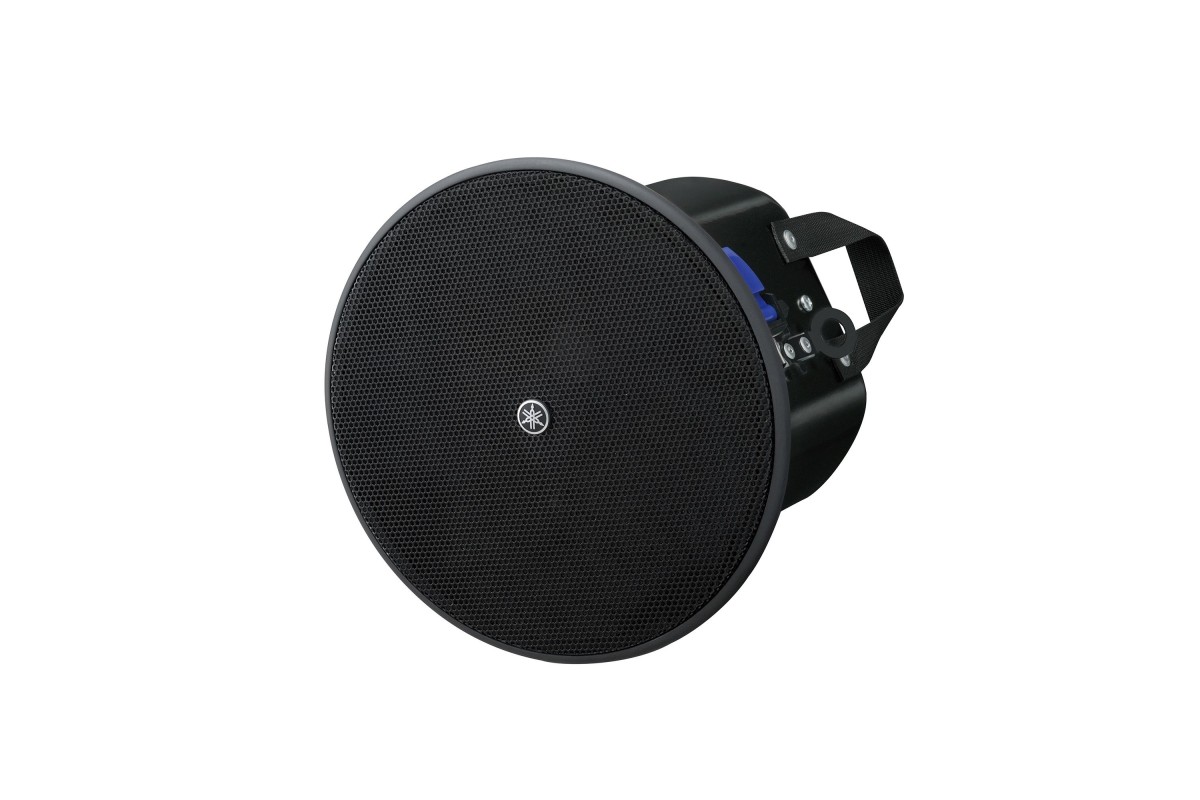

Full-range loudspeaker with a 4" driver
YAMAHA VXC4VAB (COPPIA)
600,24 €
Tasse incluse
Spedito entro 5/7 Giorni
Full-range loudspeaker with a 4" driver
close
| General specifications | Speaker type | Full-range, Acoustic suspension | |
|---|---|---|---|
| Frequency range (-10dB) | 80Hz - 20kHz (Half-space:2π) | ||
| Nominal coverage | 130° conical (Half-space:2π) | ||
| Components | LF | - | |
| HF | - | ||
| LF-HF | 4" full-range | ||
| Power rating | NOISE | 30W | |
| PGM | 60W | ||
| PEAK | 120W | ||
| Nominal impedance | 8Ω | ||
| Transformer taps | 100V | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) | |
| 70V | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | ||
| SPL | Sensitivity (1W; 1m on axis) | 87dB SPL (Half-space:2π) | |
| Peak (Calculated) | 108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | ||

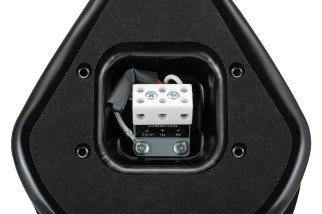

| I/O connectors | 1x Ceramic terminal block (3P) (input: +/-, Earth) | ||
| Finish | VXC4-VA: Black / VXC4-VAW: White | ||
| Waterproof | IP32 | ||
| Dimensions | Diameter | 225mm (8.9") | |
| D | 232mm (9.1") | ||
| Net weight | 2.6kg (5.7lbs) | ||
| Cutout size | Ø186 mm (Ø7-5/16") | ||
| Required ceiling board thickness | 5 mm – 35 mm | ||
| Accessories | O-ring, Tile Rail, Cutout Template | ||
| Packaging | Packaged in pairs | ||
| Certificate | CE, RoHS | ||
| EN54-24 compliance | Yes (DoP No. 0359-CPR-00405) | ||
VXC4VAB2
Scheda dati
- Pollici
- 4
