100 V line transformer 5" ceiling loudspeaker
☑ 5" double cone speaker. 12/6/3 W RMS@100 V
☑ Low profile aluminium grille
☑ Highly conductive quick-connect terminals
☑ Anti-fall system for installation assistance
FONESTAR SKY-5T
65,10 €
Tasse incluse
Spedito entro 5/7 Giorni
100 V line transformer 5" ceiling loudspeaker
☑ 5" double cone speaker. 12/6/3 W RMS@100 V
☑ Low profile aluminium grille
☑ Highly conductive quick-connect terminals
☑ Anti-fall system for installation assistance
close
| EATURES: | Ceiling loudspeaker with 100 V line transformer. |
|---|---|
| Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted. | |

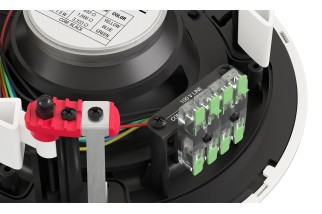

| Fast connection terminals and high conductivity. | |
| Anti-fall system for installation assistance. | |
| Hook for safety cable. | |
| Stable, worm-gear ceiling brackets. | |
| Protection against dust and water. | |
| POWER: | 12 W RMS |
| 16 W MAX. | |
| SPEAKER: | 5'' polypropylene double cone diaphragm |
| RESPONSE: | 55-20,000 Hz @ -10 dB |
| 70-20,000 Hz @ -3 dB | |
| IMPEDANCE: | 12 W RMS@100 V (833 Ω) |
| 6 W RMS@100 V/70 V (1.666 Ω/816 Ω) | |
| 3 W RMS@100 V/70 V (3.333 Ω/1,633 Ω) | |
| 15 W RMS@70 V (3.266 Ω) | |
| SENSITIVITY: | 85 dB @ 1 W/1 m |
| SOUND PRESSURE: | 97 dB @ max. W/1m Continuous |
| 98 dB @ max. W/1m Peak | |
| COVERAGE ANGLE: | 90º@1kHz (-6 dB) |
| PROTECTIONS: | IP-44 in compliance with IEC 60529 |
| EN ISO 9227:2006 Neutral Salt Spray Test | |
| MATERIAL: | ABS (UV resistant) |
| Liquid paint aluminium grille | |
| CONNECTORS: | Highly conductive quick-connect terminals |
| For 0.4 ~ 4 mm² cross section cable | |
| OPERATION TEMPERATURE: | -20ºC ~ 70°C (48 h) |
| STORAGE TEMPERATURE: | 10ºC ~ 40°C |
| MAXIMUM HUMIDITY: | 95% |
| COLOUR: | White (RAL 9003) |
| DIMENSIONS: | Total loudspeaker: 214 mm Ø x 85 mm height |
| Grille section: 5 mm | |
| Recessed height: 80 mm | |
| Installation hole: 180 mm Ø | |
| Maximum ceiling thickness: 30 mm | |
| WEIGHT: | 0.8 kg |
| ACCESSORIES: | Installation template |
SKY-5T
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521027984
