5’ + 1’ ceiling loudspeaker with 100 V line transformer and low impedance
☑ 5‘ + 1’ coaxial speaker. 15/10/5/2.5 W RMS@100 V and 15 W RMS@8 Ω

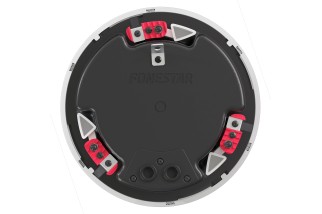

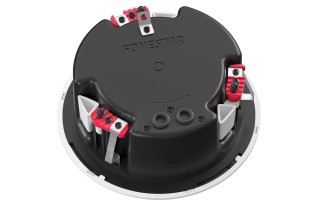

☑ Protective dome type back cover
☑ Low profile aluminium grille
☑ Fast connection terminals and high conductivity. In junction box
☑ Anti-fall system for installation assistance

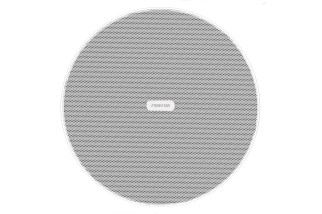

FONESTAR SKY-5T-DOME
99,81 €
Tasse incluse
Spedito entro 5/7 Giorni
5’ + 1’ ceiling loudspeaker with 100 V line transformer and low impedance
☑ 5‘ + 1’ coaxial speaker. 15/10/5/2.5 W RMS@100 V and 15 W RMS@8 Ω
☑ Protective dome type back cover
☑ Low profile aluminium grille
☑ Fast connection terminals and high conductivity. In junction box
☑ Anti-fall system for installation assistance
close
| FEATURES: | Ceiling loudspeaker with 100 V line transformer and low impedance. |
|---|---|
| Protective dome type back cover. | |

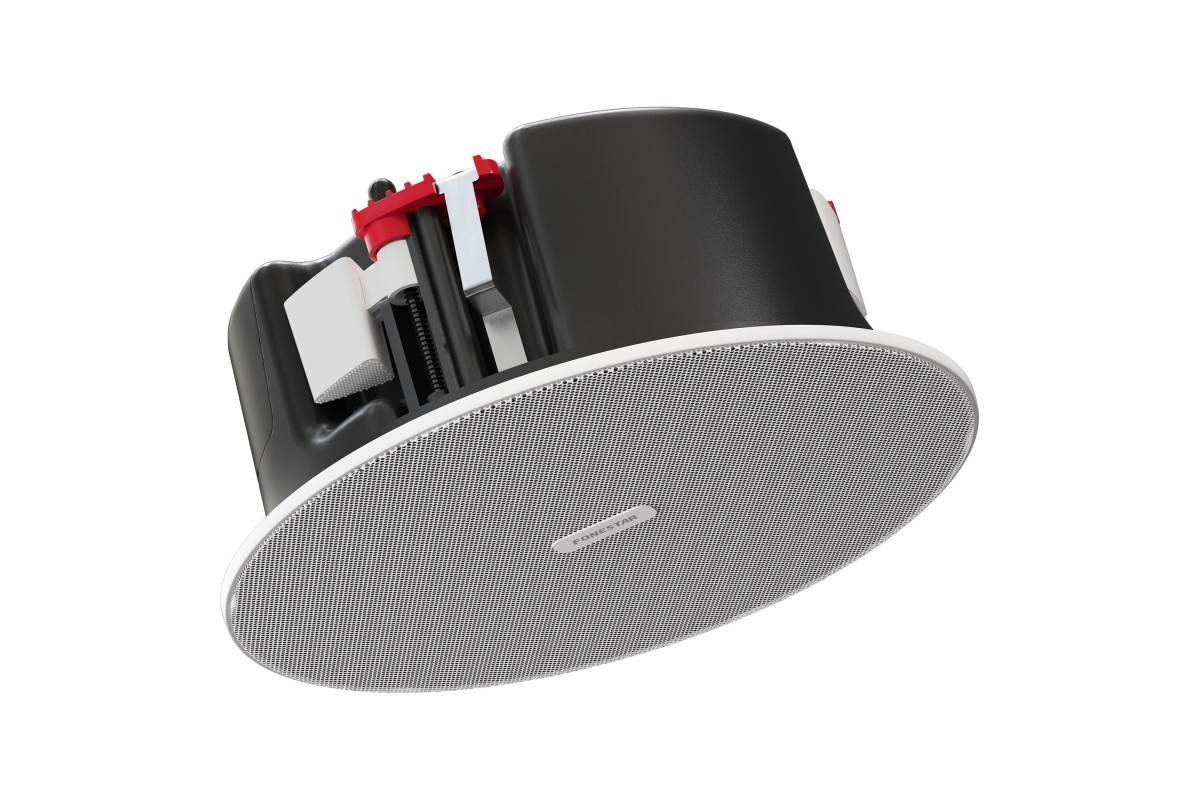

| Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted. | |
| Fast connection terminals and high conductivity. | |

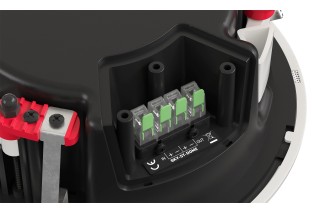

| Junction box in the rear cover with inlet and outlet port. | |
| Anti-fall system for installation assistance. | |
| Hook for safety cable. | |

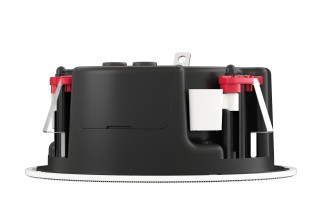

| Stable, worm-gear ceiling brackets. | |
| Installation in ceilings with limited space. | |
| Protection against dust and water. | |
| POWER: | |
| 20 W MAX. | |
| SPEAKER: | |
| 5'' polypropylene woofer | |
| 1'' swivelling tweeter | |
| RESPONSE: | 100-20.000 Hz @ -10 dB |
| 120-20.000 Hz @ -3 dB | |
| IMPEDANCE: | 15 W RMS@100 V (666 Ω) |
| 10 W RMS@100 V/70 V (1.000 Ω/490 Ω) | |
| 5 W RMS@100 V/70 V (2.000 Ω/980 Ω) | |
| 2'5 W RMS@100 V / 70 V(4.000 Ω/ 1.960 Ω) | |
| 1.25 W RMS@70 V (3.920 Ω) | |
| Low Z: 8 Ω | |
| SENSITIVITY: | 86 dB @ 1 W/1 m |
| SOUND PRESSURE: | 98 dB @ max. W/1m Continuo |
| 99 dB @ max. W/1m Pico | |
| COVERAGE ANGLE: | 90º@1kHz (- 6 dB) |
| PROTECTIONS: | IP-65 in compliance with IEC 60529 |
| EN ISO 9227:2006 Neutral Salt Spray Test | |
| MATERIAL: | ABS (UV resistant) |
| Liquid paint aluminium grille | |
| CONNECTORS: | Highly conductive quick-connect terminals |
| For 0.4 ~ 4 mm² cross section cable | |
| Junction box in the rear cover with inlet and outlet port | |

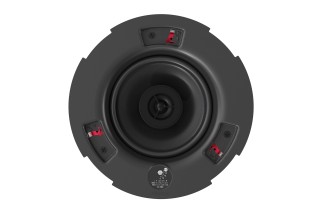

| SWITCH: | W selector in high Z and 8 Ω. |
| Accessible from the front. | |
| OPERATION TEMPERATURE: | -20ºC ~ 70°C (48 h) |
| STORAGE TEMPERATURE: | 10ºC ~ 40°C |
| MAXIMUM HUMIDITY: | 95% |
| COLOUR: | White (RAL 9003) |
| DIMENSIONS: | Total loudspeaker: 214 mm Ø x 100 mm height |
| Grille section: 5 mm | |
| Recessed height: 95 mm | |
| Installation hole: 180 mm Ø | |
| Maximum ceiling thickness: 30 mm | |
| WEIGHT: | 1.3 kg |
| ACCESSORIES: | Installation template |
SKY-5T-DOME
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521028004
