5‘’ + 1‘’ low impedance ceiling loudspeaker
☑ 5" + 1" coaxial speaker. 15 W RMS@8Ω
☑ Protective dome type back cover
☑ Low profile aluminium grille
☑ Fast connection terminals and high conductivity. In junction box
☑ Anti-fall system for installation assistance
FONESTAR SKY-5-DOME
73,77 €
Tasse incluse
Spedito entro 5/7 Giorni
5‘’ + 1‘’ low impedance ceiling loudspeaker
☑ 5" + 1" coaxial speaker. 15 W RMS@8Ω
☑ Protective dome type back cover
☑ Low profile aluminium grille
☑ Fast connection terminals and high conductivity. In junction box
☑ Anti-fall system for installation assistance
close
| FEATURES: | Low impedance ceiling loudspeaker. |
|---|---|
| Protective dome type back cover. | |

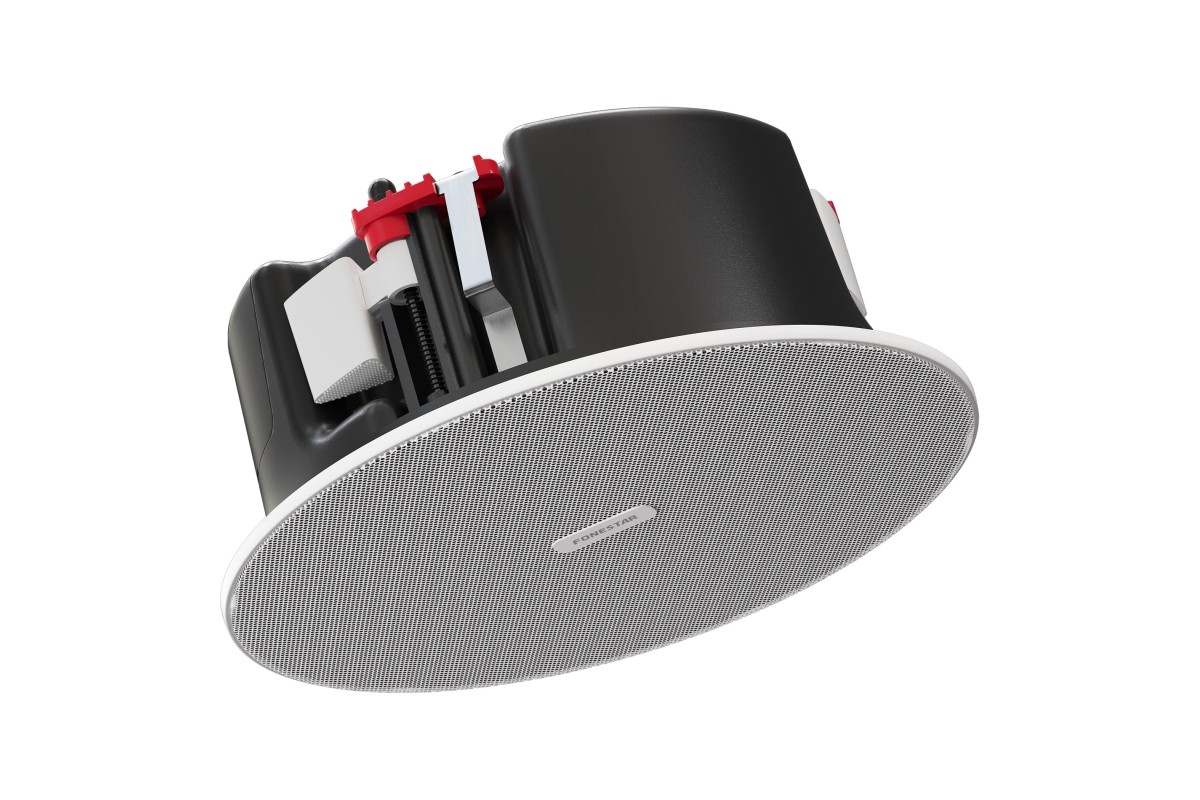

| Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable. The logo can be removed and the speaker can be painted. | |
| Fast connection terminals and high conductivity. | |

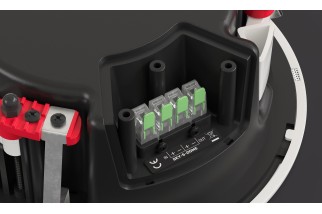

| Junction box in the rear cover with inlet and outlet port. | |
| Anti-fall system for installation assistance. | |
| Hook for safety cable. | |
| Stable, worm-gear ceiling brackets. | |
| Installation in ceilings with limited space. | |
| Protection against dust and water. | |
| POWER: | 15 W RMS |
| 20 W MAX. | |
| SPEAKER: | Coaxial loudspeaker. |
| 5'' polypropylene woofer | |
| 1'' swivelling tweeter | |
| RESPONSE: | 100-20,000 Hz @ -10 dB |
| 120-20,000 Hz @ -3 dB | |
| IMPEDANCE: | 8 Ω |
| SENSITIVITY: | 86 dB @ 1 W/1 m |
| SOUND PRESSURE: | 98 dB @ max. W/1m Continuous |
| 99 dB @ max. W/1m Peak | |
| COVERAGE ANGLE: | H/V (-6 dB): 60º@500Hz, 90º@1kHz, 60º@2kHz, 60º@4kHz |
| PROTECTIONS: | IP-65 in compliance with IEC 60529 |
| EN ISO 9227:2006 Neutral Salt Spray Test | |
| MATERIAL: | ABS (UV resistant) |
| Liquid paint aluminium grille | |
| CONNECTORS: | Highly conductive quick-connect terminals |
| For 0.4 ~ 4 mm² cross section cable | |
| Junction box in the rear cover with inlet and outlet port | |
| OPERATION TEMPERATURE: | -20ºC ~ 70°C (48 h) |
| STORAGE TEMPERATURE: | 10ºC ~ 40°C |
| MAXIMUM HUMIDITY: | 95% |
| COLOUR: | White (RAL 9003) |
| DIMENSIONS: | Total loudspeaker: 214 mm Ø x 100 mm height |
| Grille section: 5 mm | |
| Recessed height: 95 mm | |
| Installation hole: 180 mm Ø | |
| Maximum ceiling thickness: 30 mm | |
| WEIGHT: | 1 kg |
SKY-5-DOME
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521027960
