| Features |
| ☑ Ultra-Compact, CDD™ passive two-way system |
| ☑ Coaxial Differential Dispersion™ technology |
| ☑ Elegant ABS moulded enclosure |
| ☑ User-rotatable coaxial drive unit |
| ☑ Vertical and horizontal mounting options |
| ☑ Screw-free perforated steel grille |
| ☑ 8Ω nominal impedance |
| ☑ Discreet mounting accessories |
| ☑ Black or white standard colour options |
| ☑ 70V/100V line transformer option |

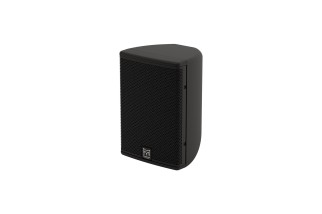

Martin Audio CDD5B
424,56 €
Tasse incluse
Spedito entro 5/7 Giorni
| Features |
| ☑ Ultra-Compact, CDD™ passive two-way system |
| ☑ Coaxial Differential Dispersion™ technology |
| ☑ Elegant ABS moulded enclosure |
| ☑ User-rotatable coaxial drive unit |
| ☑ Vertical and horizontal mounting options |
| ☑ Screw-free perforated steel grille |
| ☑ 8Ω nominal impedance |
| ☑ Discreet mounting accessories |
| ☑ Black or white standard colour options |
| ☑ 70V/100V line transformer option |
close
Specification
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
|---|---|
| FREQUENCY RESPONSE (5) | 100Hz-20kHz ± 3dB, 10dB @ 70Hz |
| DRIVER | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system |
| HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system | |
| RATED POWER (2) | 100W AES, 400W peak |
| SENSITIVITY (8) | 90dB |
| MAXIMUM SPL (9) | 110dB continuous, 116dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 3 litre, ABS |
| FINISH | Black or white |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M5 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 160mm x (H) 230mm x (D) 149mm |
| (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins | |
| WEIGHT | 3kg (6.6lbs) |
CDD5B
