woofer da 6,5" con un tweeter a cupola bilanciata da 1"

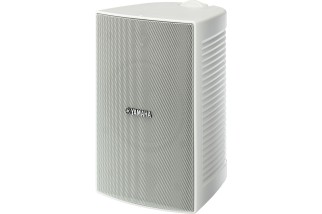

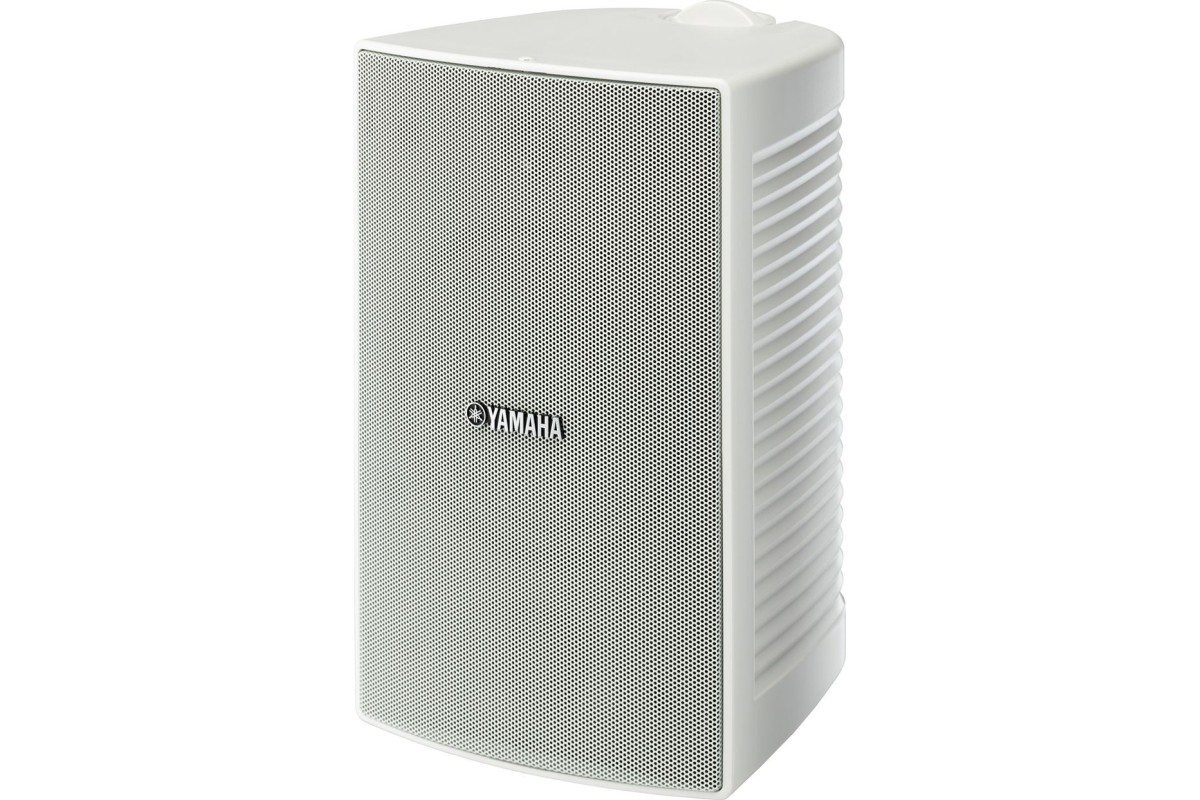

YAMAHA VS6W (COPPIA)
397,72 €
Tasse incluse
Spedito entro 5/7 Giorni
woofer da 6,5" con un tweeter a cupola bilanciata da 1"
close
| General specifications | Frequency range (-10dB) | 80Hz - 20kHz | |
|---|---|---|---|
| Nominal coverage | H | 90 | |
| V | 90 | ||
| Components | LF | 6,5"(160mm) cone driver | |
| HF | 1"(25mm) balanced dome tweeter | ||
| Crossover | 15kHz | ||
| Power rating | NOISE | 25W | |
| PGM | 50W | ||
| PEAK | 100W | ||
| Nominal impedance | 8Ω | ||
| Transformer taps | 100V | 25W, 12.5W, 6.3W | |
| 70V | 25W, 12.5W, 6.3W, 3.1W | ||
| SPL | Sensitivity (1W; 1m on axis) | 90dB SPL | |
| Peak (Calculated) | 110dB SPL (100W) | ||
| I/O connectors | 2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm) | ||
| Shape | Rectangular | ||
| Cabinet material | HIPS, 94-HB | ||
| Finish | VS6: Black, VS6W: White | ||
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | ||
| Waterproof | IEC60529 IPX3 splash proof rating | ||
| Dimensions | W | 190 mm (7 1/2") | |
| H | 308 mm (12 1/8") | ||
| D | 219 mm (8 5/8") | ||
| Net weight | 2.8kg (6.2lbs) | ||
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | ||
| Others | Packaged in pair | ||
VS6W
Scheda dati
- Pollici
- 6.5
