woofer da 4" con un tweeter a cupola bilanciata da 1"

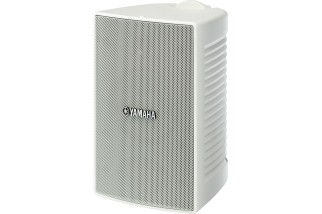

YAMAHA VS4W (COPPIA)
233,02 €
Tasse incluse
Spedito entro 5/7 Giorni
woofer da 4" con un tweeter a cupola bilanciata da 1"
close
| General specifications | Frequency range (-10dB) | 100Hz - 20kHz | |
|---|---|---|---|
| Nominal coverage | H | 110 | |
| V | 110 | ||
| Components | LF | 4"(100mm) cone driver | |
| HF | 1"(25mm) balanced dome tweeter | ||
| Crossover | 15kHz | ||
| Power rating | NOISE | 15W | |
| PGM | 30W | ||
| PEAK | 60W | ||
| Nominal impedance | 8Ω | ||
| Transformer taps | 100V | 15W, 7.5W, 3.8W | |
| 70V | 15W, 7.5W, 3.8W, 1.9W | ||
| SPL | Sensitivity (1W; 1m on axis) | 88dB SPL | |
| Peak (Calculated) | 106dB SPL (60W) | ||
| I/O connectors | 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm) | ||
| Shape | Rectangular | ||
| Cabinet material | HIPS, 94-HB | ||
| Finish | VS4: Black, VS4W: White | ||
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | ||
| Waterproof | IEC60529 IPX3 splash proof rating | ||
| Dimensions | W | 152 mm (6") | |
| H | 243 mm (9 9/16") | ||
| D | 172 mm (6 3/4") | ||
| Net weight | 1.9kg (4.2lbs) | ||
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | ||
| Others | - | ||
VS4W
Scheda dati
- Pollici
- 4
