Cone woofer 5,25" con un tweeter soft dome 0,75"

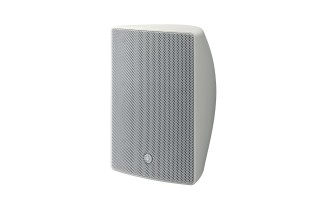

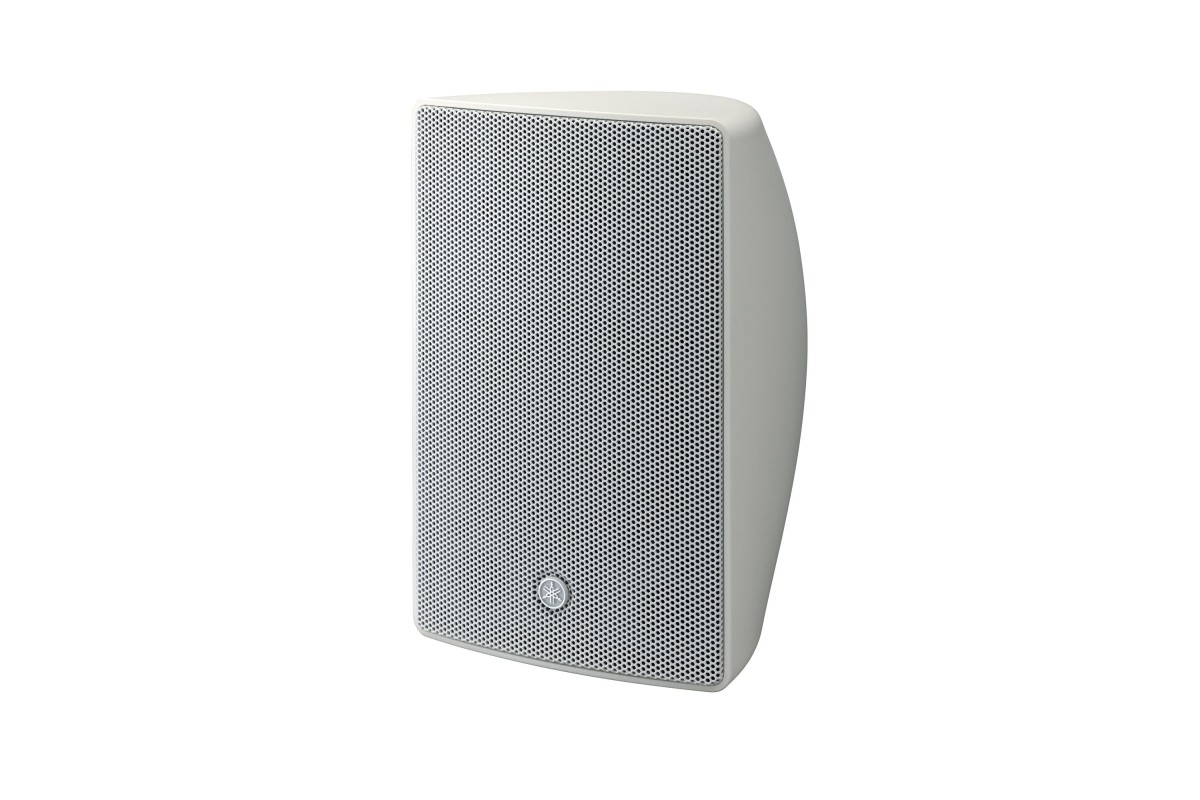

YAMAHA VXS5W (COPPIA)
631,96 €
Tasse incluse
Spedito entro 5/7 Giorni
Cone woofer 5,25" con un tweeter soft dome 0,75"
close
| General specifications | Speaker type | 2-way, Bass-reflex | |
|---|---|---|---|
| Frequency range (-10dB) | 62Hz - 20kHz | ||
| Nominal coverage | H | 120° | |
| V | 120° | ||
| Components | LF | 5.25" Cone | |
| HF | 0.75" Soft dome | ||
| Crossover | 3kHz | ||
| Power rating | NOISE | 75W | |
| PGM | 150W | ||
| Nominal impedance | 8Ω | ||
| Transformer taps | 100V | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) | |
| 70V | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | ||
| SPL | Sensitivity (1W; 1m on axis) | 89dB SPL | |
| Peak (Calculated) | 114dB SPL | ||

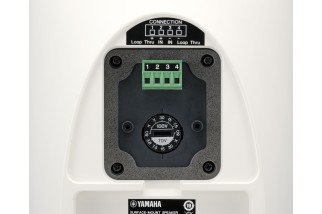

| I/O connectors | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | ||
| Shape | Rectangular | ||
| Cabinet material | ABS | ||
| Finish | VXS5:Black / VXS5W:White | ||
| Waterproof | IP35 | ||
| Dimensions | W | 176mm (6.9") | |
| H | 280mm (11.0") | ||
| D | 163mm (6.4") | ||
| Net weight | 3.6kg (7.9lbs) | ||
| Accessories | Wall / Ceiling mount bracket, Terminal cover | ||
| Others | Packaged in pairs | ||
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | ||
| EN54-24 compliance | - | ||
VXS5W
Scheda dati
- Pollici
- 5
