Diffusori da parete compatti che si adattano elegantemente a qualsiasi arredamento (modelli ad alta impedenza)
☑ 3.5” full-range speaker units
☑ High-impedance model for large installations
☑ Attractive, discreet design complements elegant décor
☑ Supplied bracket with dedicated transformer complements the overall design
☑ Acoustic design for sophisticated, natural reproduction
☑ Individual speakers cover a wide angle
☑ Paintable enclosures and grilles
☑ Black and white models available
☑ 1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5")* *Including bracket

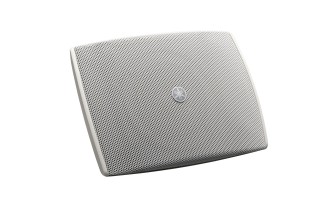

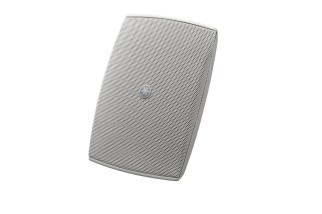

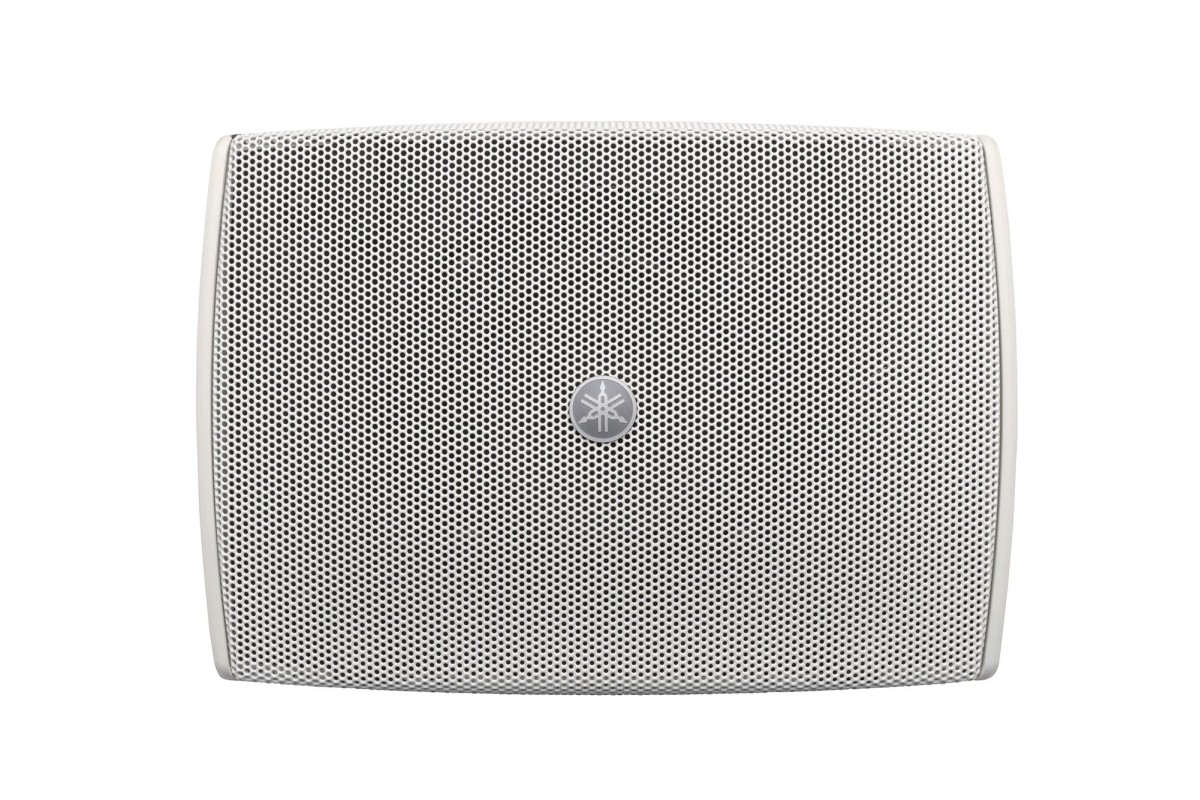

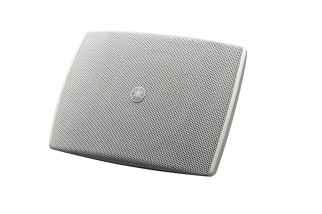

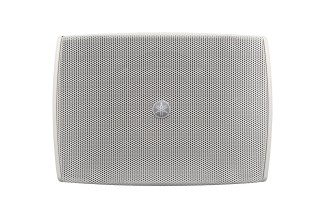

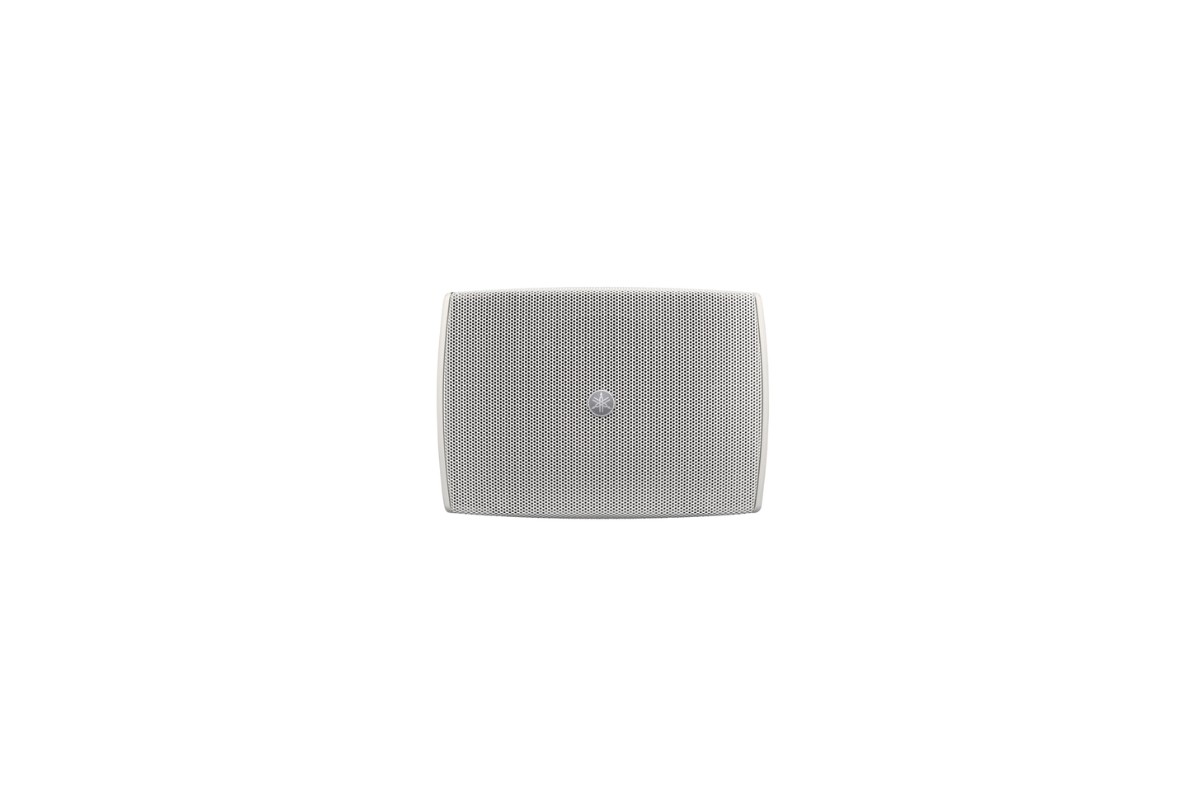

YAMAHA VXS3FTW (COPPIA)
431,88 €
Tasse incluse
Spedito entro 5/7 Giorni
Diffusori da parete compatti che si adattano elegantemente a qualsiasi arredamento (modelli ad alta impedenza)
☑ 3.5” full-range speaker units
☑ High-impedance model for large installations
☑ Attractive, discreet design complements elegant décor

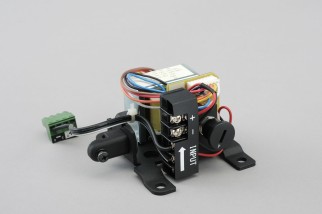

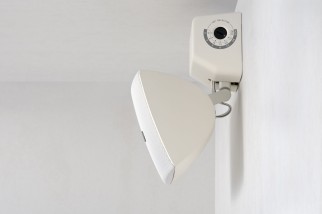

☑ Supplied bracket with dedicated transformer complements the overall design
☑ Acoustic design for sophisticated, natural reproduction
☑ Individual speakers cover a wide angle
☑ Paintable enclosures and grilles
☑ Black and white models available
☑ 1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5")* *Including bracket
close
| General specifications | Speaker type | Full-range, Acoustic suspension | |
|---|---|---|---|
| Frequency range (-10dB) | 130Hz -20kHz | ||
| Nominal coverage | H | 150° | |
| V | 160° | ||
| Components | LF-HF | 3.5" Cone | |
| Power rating | NOISE | - | |
| PGM | - | ||
| PEAK | - | ||
| Nominal impedance | - | ||
| SPL | Sensitivity (1W; 1m on axis) | 86dB SPL *1 | |
| Peak (Calculated) | - | ||

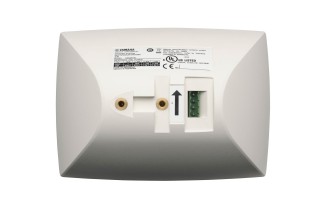

| I/O connectors | 1x Barrier strip (Input: + / -) | ||
| Protection circuit | Load protection | Full-range power limiting for protecting network and transducers | |
| Finish | VXS3FT: Black (approx. Munsell N3), VXS3FTW: White (approx. Munsell N9) | ||
| Dimensions | W | 184mm (7.3") *2 | |
| H | 130mm (5.1") *2, 178mm (7.0") *2,*3 | ||
| D | 94mm (3.7") *2, 139mm (5.5") *2,*3 | ||
| Net weight | 1.0kg (2.2lbs), 1.7kg (3.7lbs) *4 | ||

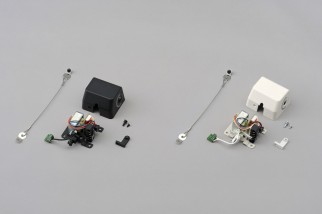

| Accessories | Bracket Gear, Bracket Base (with transformer), Bracket Cover, Safety Wire | ||
| Packaging | Packaged in pairs | ||
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | ||
| Transformer taps | 100V | 15W, 7.5W, 3.8W | |
| 70V | 15W, 7.5W, 3.8W, 1.9W | ||
VXS3FTW
Scheda dati
- Pollici
- 3
