Cone woofer 8" con un tweeter soft dome 1"

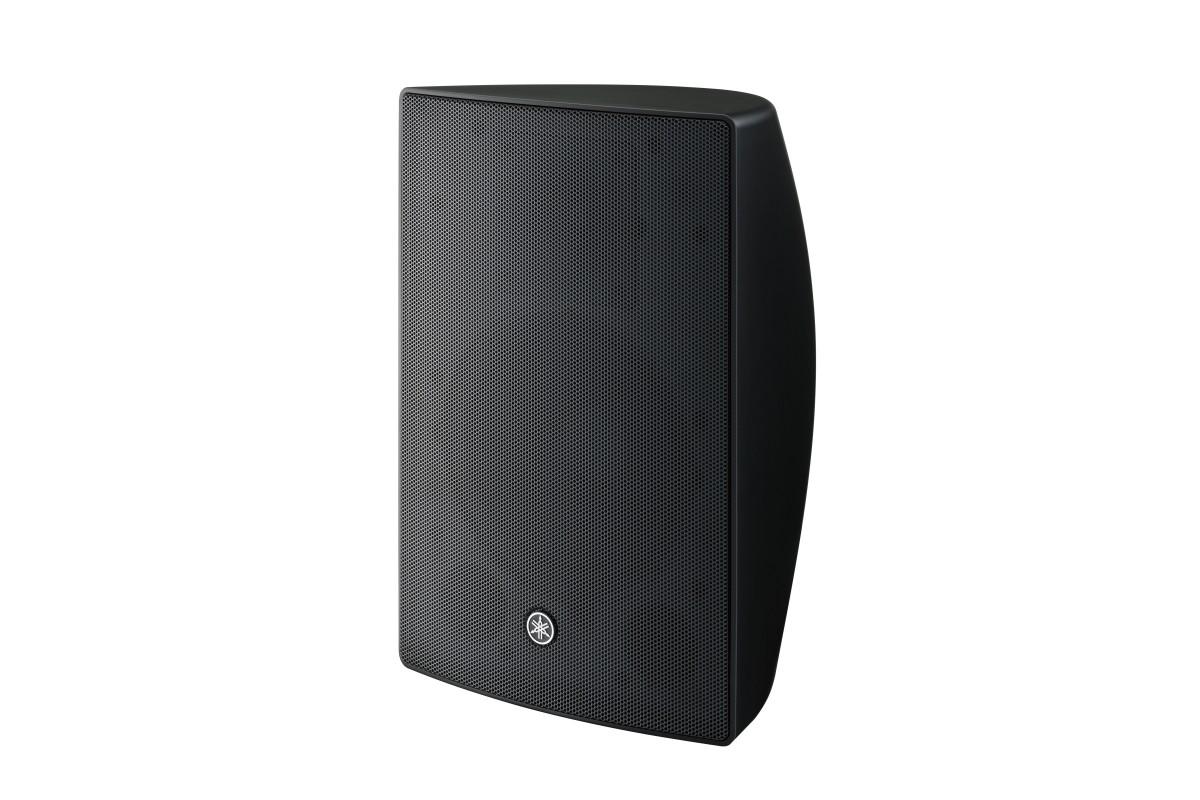

YAMAHA VXS8VA (COPPIA)
Cone woofer 8" con un tweeter soft dome 1"
close
| General specifications | Speaker type | 2-way, Bass-reflex | |
|---|---|---|---|
| Frequency range (-10dB) | 51Hz - 20kHz | ||
| Nominal coverage | H | 100° | |
| V | 100° | ||
| Components | LF | 8" Cone | |
| HF | 1" Soft dome | ||
| Crossover | 2.8kHz | ||
| Power rating | NOISE | 90W | |
| PGM | 180W | ||
| Nominal impedance | 8Ω | ||
| Transformer taps | 100V | 60W (170Ω), 30W (330Ω), 15W (670Ω) | |
| 70V | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | ||
| SPL | Sensitivity (1W; 1m on axis) | 89dB SPL | |
| Peak (Calculated) | 115dB SPL | ||

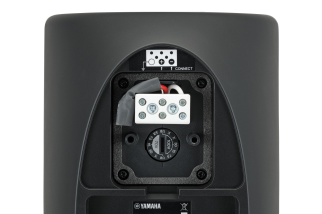

| I/O connectors | 1x Ceramic terminal block (3P) (input: +/-, Earth) | ||
| Shape | Rectangular | ||
| Cabinet material | ABS | ||
| Finish | VXS8-VA:Black / VXS8-VAW:White | ||
| Waterproof | IP35 | ||
| Dimensions | W | 278mm (10.9") | |
| H | 430mm (16.9") | ||
| D | 239mm (9.4") | ||
| Net weight | 8.2kg (18.1lbs) | ||
| Accessories | Wall / Ceiling mount bracket, Terminal cover | ||
| Others | Packaged in pairs | ||
| Certificate | CE, RoHS | ||
| EN54-24 compliance | Yes (DoP No. 0359-CPR-00406) | ||
VXS8VA
Scheda dati
- Pollici
- 8
