| Max SPL | 137 dB |
|---|---|
| Bandwidth | 67 Hz- 20 KHz |
| Transducers | LF : 1 x 10" |
| HF : 1 x 2.5" | |
| Weight | 18 kg / 40 lb |
| Directivity | H: 70° / 90° / 110° |
| V: 30° |

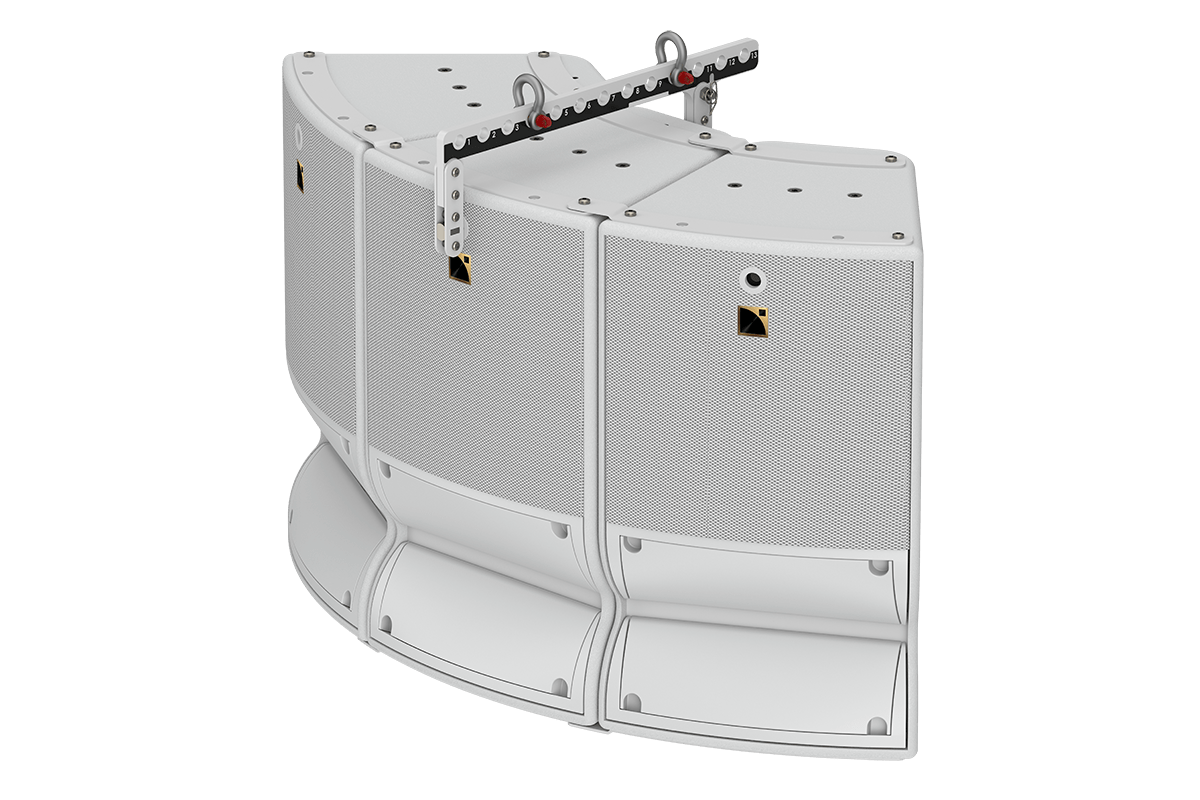

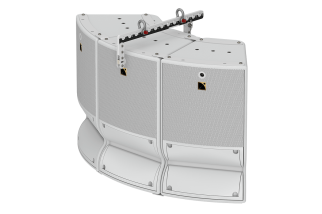

L-ACOUSTIC A10i Wide
| Max SPL | 137 dB |
|---|---|
| Bandwidth | 67 Hz- 20 KHz |
| Transducers | LF : 1 x 10" |
| HF : 1 x 2.5" | |
| Weight | 18 kg / 40 lb |
| Directivity | H: 70° / 90° / 110° |
| V: 30° |
close
| Electroacoustic specs | |
|---|---|
| Usable bandwidth (-10 dB) | 67 Hz – 20 kHz ([A10]) |
| Maximum SPL1 | 137 dB ([A10]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X |
| 133 dB ([A10]) with LA2Xi | |
| Nominal directivity (-6 dB) | enclosure: 30° |
| L-Fins: 70° / 110° symmetric or 90° asymmetric | |
| Transducers | LF: 1 × 10″ cone driver |
| HF: 1 × 2.5″ diaphragm compression driver, neodymium | |
| Acoustical load | LF: bass-reflex, L-Vents |
| HF: DOSC waveguide, Panflex | |
| Nominal impedance | 8 Ω |
| Physical specs | |
| Connectors | 1 × 4-point terminal block with push-in connection |
| 1 × connector sealing plate with cable gland | |
| Rigging and handling | external rigging kits |
| M6 inserts for rigging plates | |
| M8 inserts for A-U10i | |
| 4 M6 inserts for rigging accessory | |
| 1 DIN580-compatible M8 threaded insert | |
| Dimensions | 569 mm ( 22.4 in) / 347 mm (13.7 in) / 366 mm (14.4 in) |
| Weight (net) | 18 kg / 40 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | coated steel grill |
| acoustically neutral 3D fabric | |
| Finish | dark grey brown Pantone 426 C |
| pure white RAL 9010 | |
| custom RAL code on special order | |
| IP | IP55 |
