| Max SPL | 144 dB |
|---|---|
| Bandwidth | 41 Hz- 20 KHz |
| Transducers | LF : 1 x 15" |
| HF : 1 x 3" | |
| Weight | 32 kg / 71 lb |
| Directivity | H: 70° / 90° / 110° |
| V: 10° |

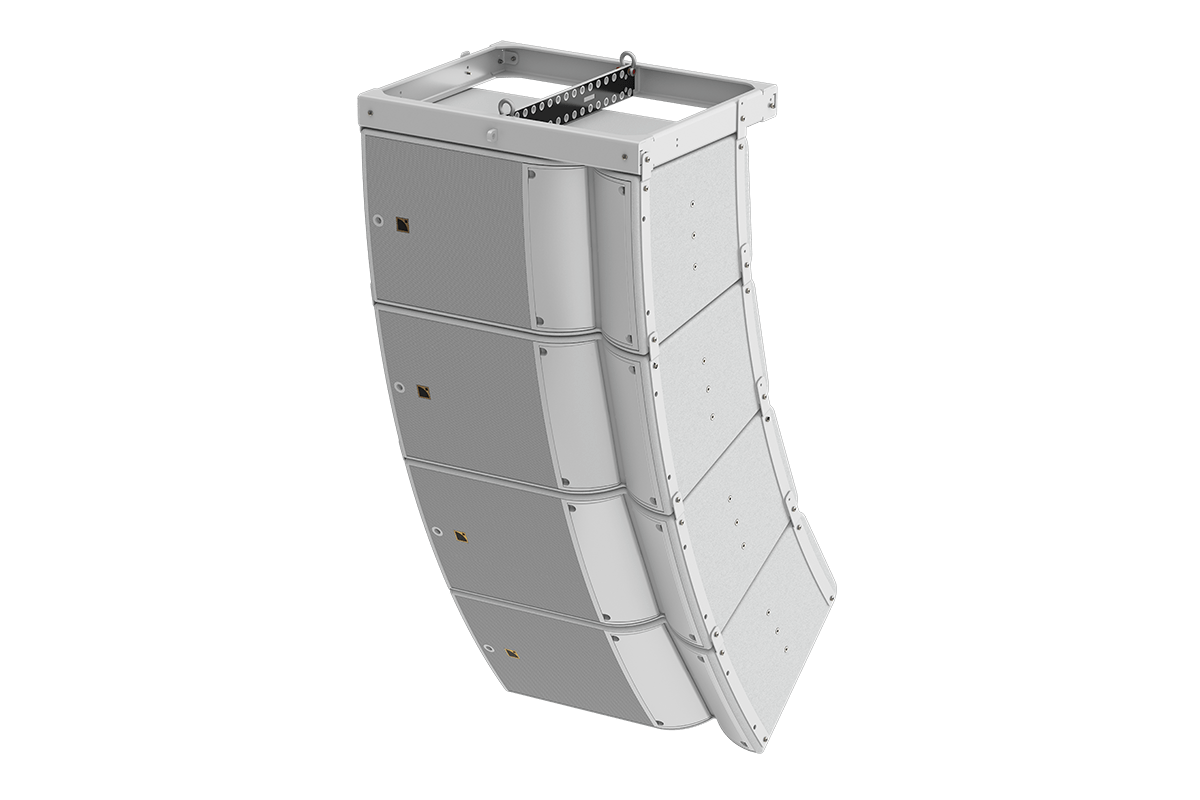

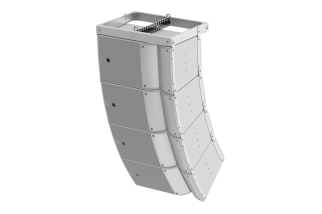

L-ACOUSTICS A15i Focus
| Max SPL | 144 dB |
|---|---|
| Bandwidth | 41 Hz- 20 KHz |
| Transducers | LF : 1 x 15" |
| HF : 1 x 3" | |
| Weight | 32 kg / 71 lb |
| Directivity | H: 70° / 90° / 110° |
| V: 10° |
close
| Electroacoustic specs | |
|---|---|
| Usable bandwidth (-10 dB) | 41 Hz – 20 kHz ([A15]) |
| Maximum SPL1 | 144 dB ([A15]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X |
| 139 dB ([A15]) with LA2Xi | |
| Nominal directivity (-6 dB) | Enclosure: 10° |
| L-Fins : 110° / 70° symmetric ; 90° asymmetric | |
| Transducers | LF: 1 × 15’’ cone driver |
| HF: 1 × 3’’ diaphragm neodymium compression driver | |
| Acoustical load | LF: bass-reflex, L-Vents |
| HF: DOSC waveguide; Panflex | |
| Nominal impedance | 8 Ω |
| Physical specs | |
| Connectors | 1 × 4-point terminal block with push-in connection |
| 1 × connector sealing plate with cable gland | |
| Rigging and handling | external rigging kits |
| M6 inserts for rigging plates and accessories | |
| M8 inserts for A-U15i | |
| 1 DIN580-compatible M8 threaded insert for safety | |
| Dimensions | 752 mm ( 29.8 in) / 427 mm (16.8 in) / 522 mm (20.6 in) |
| Weight (net) | 32 kg / 71 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Acoustically neutral 3D fabric | |
| Finish | dark grey brown Pantone 426 C |
| pure white RAL 9010 | |
| custom RAL code on special order | |
| IP | IP55 |
A15i Focus
Scheda dati
- Pollici
- 15
