Wall loudspeaker with 100 V line transformer. EN 54 certified
☑ Loudspeaker for fire and evacuation voice alarm systems
☑ EN 54-24 certificate
☑ Excellent sound quality with a unique design
☑ Ease of installation in a limited space and integration into the environment
☑ For indoor PA installations

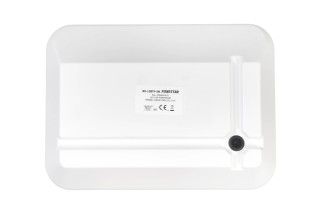

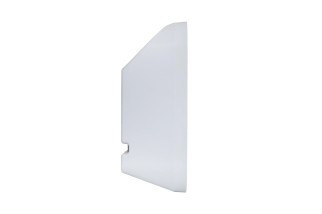

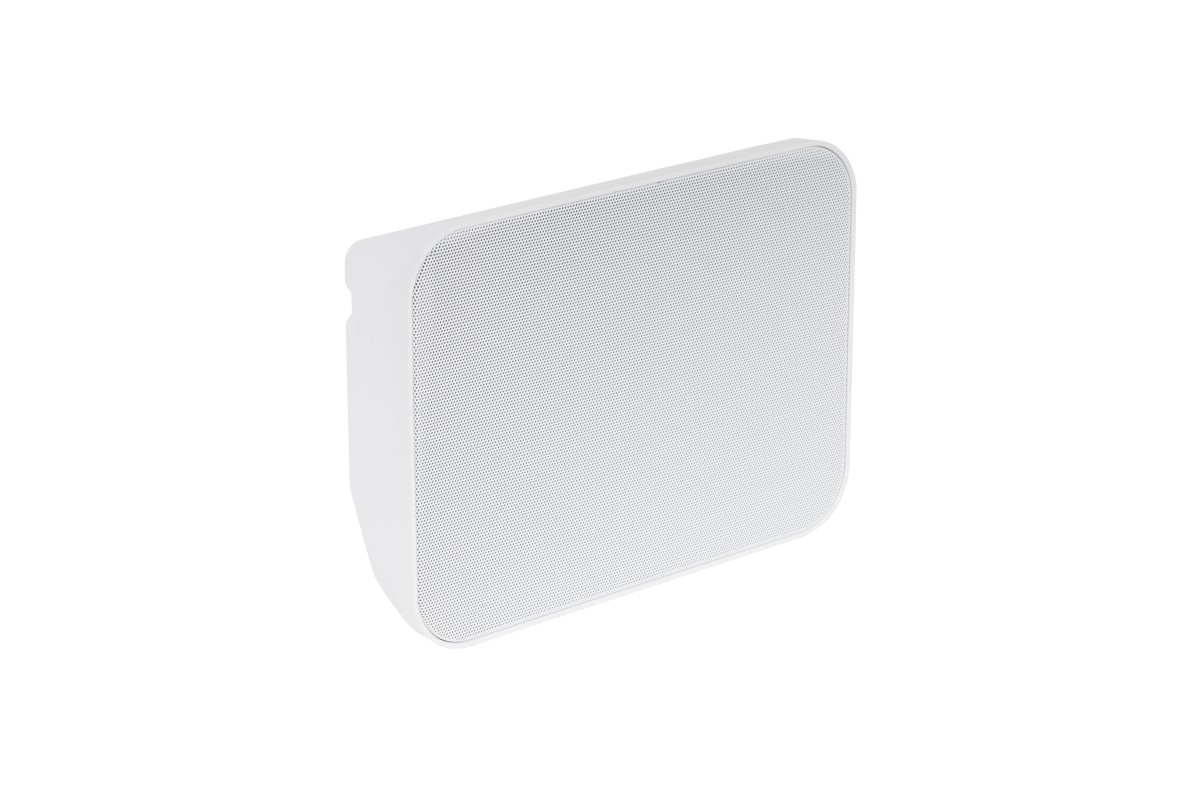

FONESTAR BS-106TP-EN
91,65 €
Tasse incluse
Spedito entro 5/7 Giorni
Wall loudspeaker with 100 V line transformer. EN 54 certified
☑ Loudspeaker for fire and evacuation voice alarm systems
☑ EN 54-24 certificate
☑ Excellent sound quality with a unique design
☑ Ease of installation in a limited space and integration into the environment
☑ For indoor PA installations
close
| FEATURES: | Loudspeaker for voice alarm system EN 54 |
|---|---|
| Wall loudspeaker. | |
| 100 V line transformer. | |
| Quick connection. | |
| Various wall and corner installation options. | |
| For indoor PA applications. | |
| REGULATION: | EN 54-24 certificate |
| POWER: | 6 W RMS |
| SPEAKERS: | 1 x 6.5'' full range |
| RESPONSE: | 184-23,300 Hz (-10 dB) |
| IMPEDANCE: | 6 W RMS@100 V (1667 Ω) |
| 3 W RMS@100 V (3333 Ω) | |
| 1.5 W RMS@100 V (6667 Ω) | |
| SENSITIVITY: | 91 dB (1 W/1 m, EN 54-24) |
| 78'1 dB (1 W/4 m, EN 54-24) | |
| MAXIMUN SOUND PRESSURE: | 92'7 dB (máx. W/1 m, EN 54-24) |
| 86'4 dB (máx. W/4 m, EN 54-24) | |
| COVERAGE ANGLE:: | H/V: 360º/360º@500Hz, 114º/142º@1kHz, 112º/84º@2kHz, 70º/57º@4kHz (-6 dB) |
| PROTECTIONS: | IP21 |
| (EN 54-24: Type A) | |
| MATERIAL: | Impact and UV resistant ABS |
| Steel grille with magnetic fixing | |
| CONNECTORS: | Quick-connect terminals for cable Ø 2.3 mm (4 mm²) max. |
| TEMPERATURE RANGE: | Operation: -10ºC - +55ºC |
| COLOUR: | White |
| DIMENSIONS: | 252 x 182 x 70 mm depth |
| WEIGHT: | 1.16 kg |
BS-106TP-EN
Scheda dati
- Pollici
- 6.5
Riferimenti specifici
- ean13
- 8422521030045
