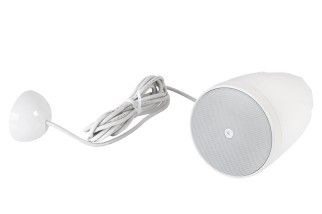

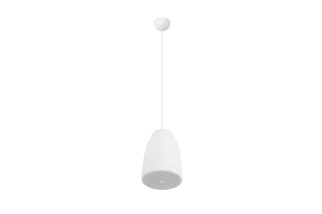

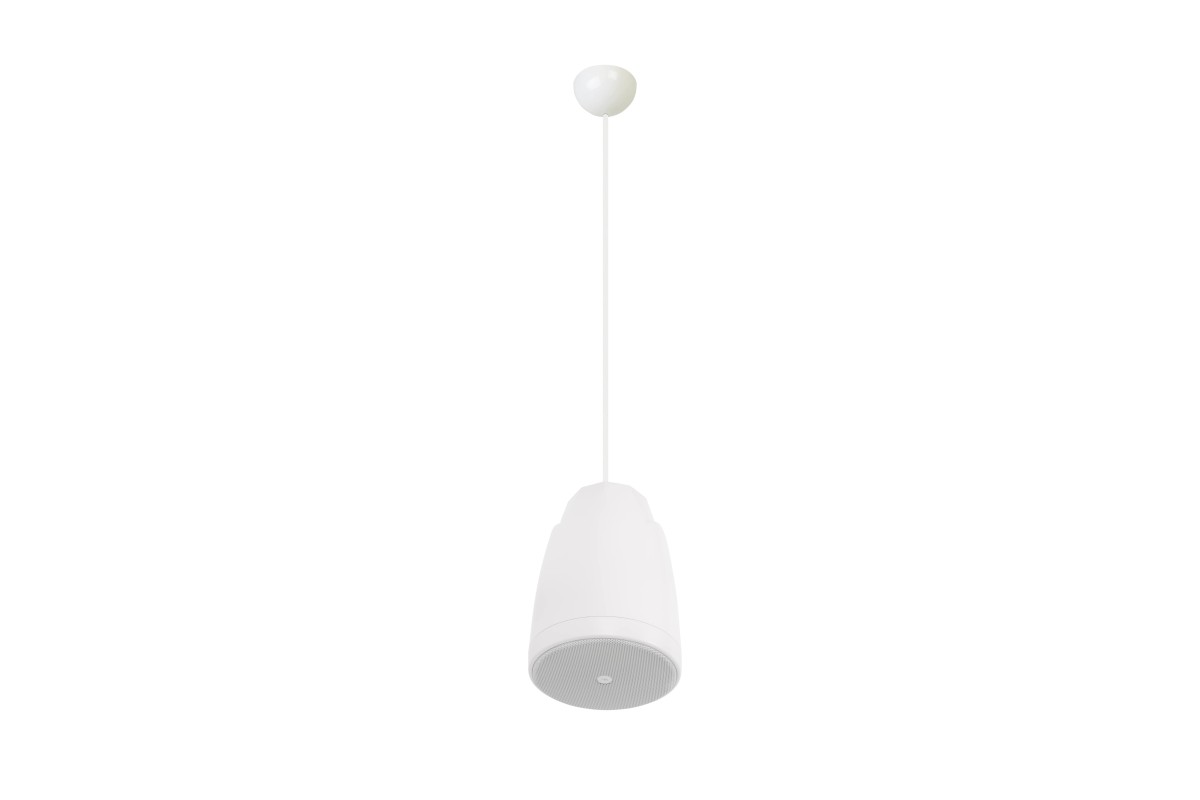

Hanging speaker with 100 V line transformer and low impedance certified EN 54
☑ Current design that allows to integrate it as a decorative element
☑ Crisp and clean sound. Uniform horizontal coverage
☑ For background music and fire systems with voice evacuation.
☑ Built and certified in compliance with EN 54-24
FONESTAR EF-322-EN
298,49 €
Tasse incluse
Spedito entro 5/7 Giorni
Hanging speaker with 100 V line transformer and low impedance certified EN 54
☑ Current design that allows to integrate it as a decorative element
☑ Crisp and clean sound. Uniform horizontal coverage
☑ For background music and fire systems with voice evacuation.
☑ Built and certified in compliance with EN 54-24
close
| FEATURES: | Hanging loudspeaker for voice alarm systems EN 54 |
|---|---|
| 100 V line transformer and low impedance. | |
| 5 m installation cable. | |
| Modern design. | |
| INTENDED USE: | Loudspeaker for voice alarm systems |
| STANDARD: | EN 54-24 certified |
| Fire detection and fire alarm systems - Part 24: components of voice alarm systems - Loudspeakers EN 54-24: 2008 | |
| POWER: | 20 W RMS |
| LOUDSPEAKER: | 5'' full-range, paper diaphragm |
| RESPONSE: | 130-20,000 Hz (-10 dB) |
| IMPEDANCE: | 20 W RMS @ 100 V/70 V (500 Ω/250 Ω) |
| 10 W RMS @ 100 V/70 V (1.000 Ω/500 Ω) | |
| 5 W RMS @ 100 V/70 V (2.000 Ω/1.000 Ω) | |
| Low Z: 6 Ω | |
| SENSITIVITY: | 89 dB @ 1 W/1 m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24 |
| 77 dB @ 1 W/4m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24 | |
| MAXIMUM SOUND PRESSURE: | 102 dB @ max. W/1m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24 |
| 89 dB @ max. W/4m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24 | |
| COVERAGE ANGLE: | H/V (-6 dB): 360º@500Hz, 190º@1kHz, 100º@2kHz, 65º@4kHz |
| PROTECTION: | Type A (based EN 54-24: IP-21) |
| MATERIAL: | Shell: ABS+PC |

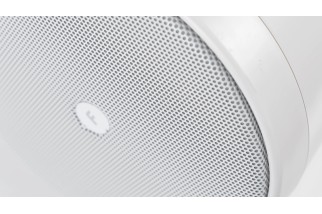

| Steel grille with anti-oxidation surface treatment and painted. | |

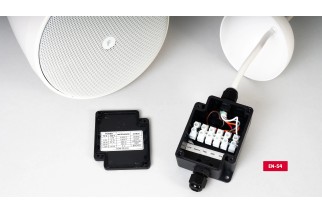

| Junction box for 6.5 mm outer diameter round cable. | |
| CONNECTIONS: | Connection box for 6.5 mm outer diameter cable. Connection terminals for cable cross-section 0.25 - 0.75 mm2. |
| TEMPERATURE RANGE: | -10ºC to +55ºC |
| COLOUR: | White (RAL 9010) |
| DIMENSIONS: | 154 mm Ø x 222 mm height |
| 5 m installation cable | |
| WEIGHT: | 2 kg |
EF-322-EN
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521012805
