| Max SPL | 129 dB |
|---|---|
| Bandwidth | 60 Hz- 20 KHz |
| Transducers | LF : 1 x 8" |
| HF : 1 x 1.5" | |
| Weight | 12 kg / 26.5 lb |
| Directivity | H: 100° |
| V: 100° |

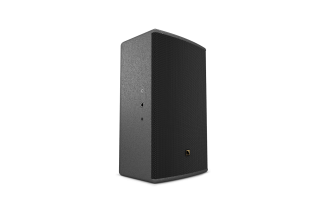

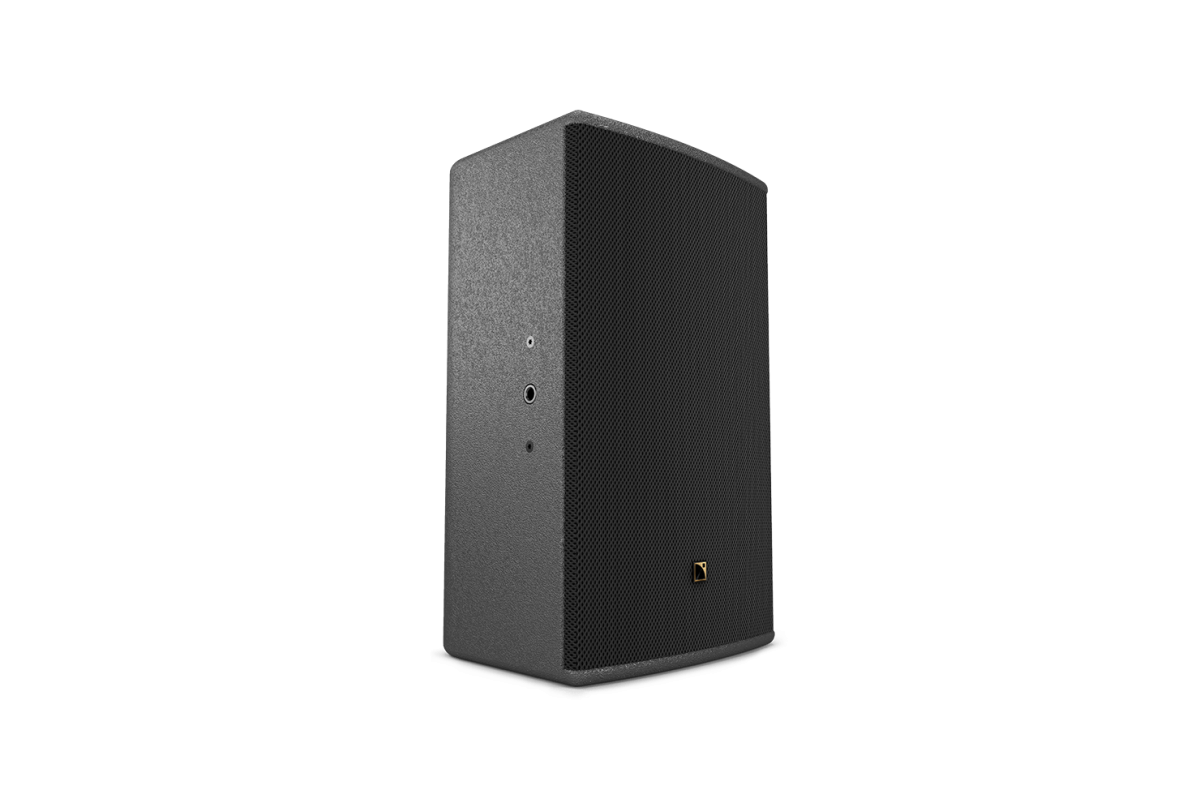

L-ACOUSTICS X8
| Max SPL | 129 dB |
|---|---|
| Bandwidth | 60 Hz- 20 KHz |
| Transducers | LF : 1 x 8" |
| HF : 1 x 1.5" | |
| Weight | 12 kg / 26.5 lb |
| Directivity | H: 100° |
| V: 100° |
close
| Electroacoustic specs | |
|---|---|
| Usable bandwidth (-10 dB) | 60 Hz – 20 kHz ([X8]) |
| Maximum SPL1 | 129 dB ([X8]) |
| Nominal directivity (-6 dB) | 100° axisymmetric |
| Monitor angle | 35° |
| Transducers | LF: 1 × 8″ cone driver |
| HF: 1 × 1.5″ diaphragm compression driver, neodymium | |
| Acoustical load | LF: bass-reflex, L-Vents |
| HF: conical waveguide | |
| Nominal impedance | 8 Ω |
| Physical specs | |
| Connectors | IN: 1 × 4-point speakON |
| LINK: 1 × 4-point speakON | |
| Rigging and handling | 1 handle |
| DIN580-compatible M8 threaded insert | |
| 4 M10 threaded inserts | |
| 1 35 mm pole socket | |
| Dimensions | 250 mm (9.8 in) / 424 mm (16.7 in) / 164 mm (10.4 in) |
| Weight (net) | 12 kg / 26.5 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Acoustically neutral 3D fabric | |
| Finish | dark grey brown Pantone 426 C |
| pure white RAL 9010 | |
| custom RAL code on special order | |
| IP | IP43 |
X8
Scheda dati
- Pollici
- 8
