| Specifications 1 |
|---|
| Throat Diameter 25 mm (1 in) |
| Nominal Impedance 8 Ω |
| Minimum Impedance 7.8 Ω |
| Power Handling (2200 –20000 Hz) |
| Nominal2 30 W |
| Continuous Program3 60 W |
| Sensitivity (1W/1m) 4 107 dB |
| Frequency Range 1.5 – 18 kHz |
| Recommended Crossover5 2.2 kHz |
| Voice Coil Diameter 44 mm (1.7 in) |
| Winding Material Aluminium |
| Inductance 0.11 mH |
| Diaphragm Material Mylar |
| Flux Density 1.5 T |
| Also available in 16 Ω, data upon request |
| Mounting and Shipping Information |
| Two M6 holes 180° on 76 mm (3 in) diameter |
| Overall Diameter 102 mm (4 in) |
| Depth 58 mm (2.3 in) |
| Net Weight (1 unit) 1.6 kg (3.5 lb) |
| Shipping Weight (8 units) 13.9 kg (30.6 lb) |
| Shipping Box (8 units) 220x220x150 mm (8.7x8.7x5.9 in) |
| 1 Driver mounted on B&C ME 45 horn. |
| 2 2 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range. Power calculated on rated minimum impedance. |
| 3 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 4 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 1000 to 18000 Hz. |
| 5 12 dB/oct. or higher slope high-pass filter |

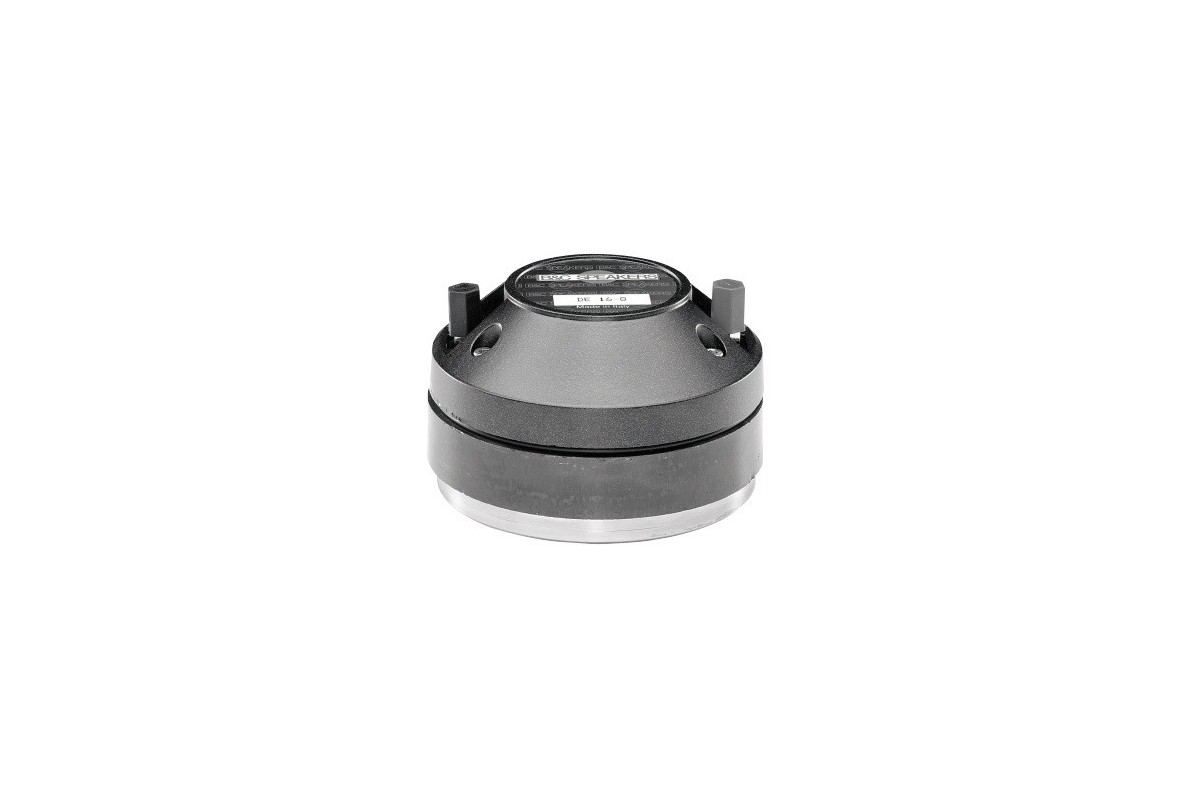

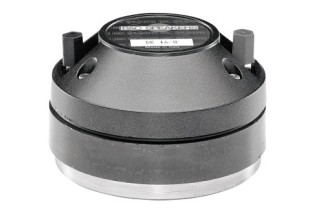

B&C DE16 Driver a Compressione 1"
93,70 €
Tasse incluse
Spedizione 24/48h
