Features
☑ 120 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 17000 Hz response
☑ 106.5 dB sensitivity

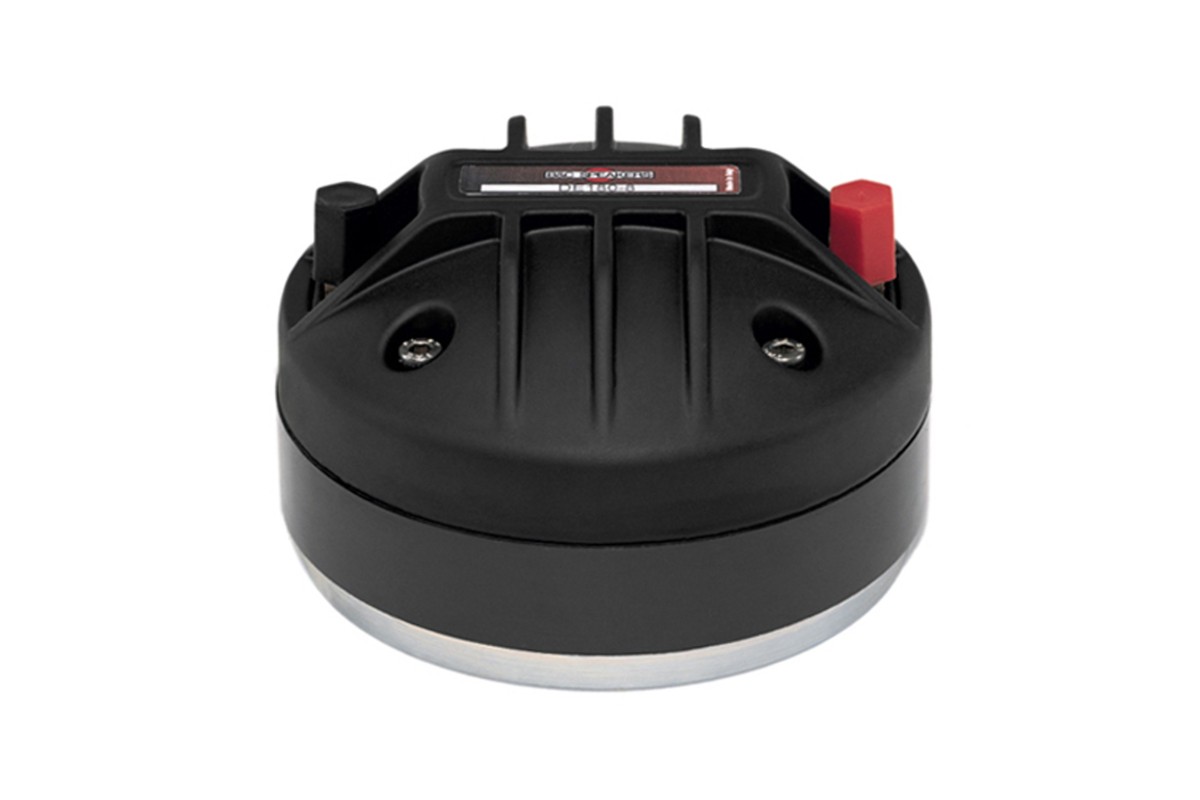

B&C DE180 Driver a Compressione 1"
101,75 €
Tasse incluse
Spedizione 24/48h
Features
☑ 120 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 17000 Hz response
☑ 106.5 dB sensitivity
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |

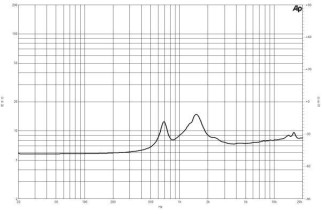

| Minimum Impedance | 7.4 Ω |
| Continuous Power Handling | 120 W |

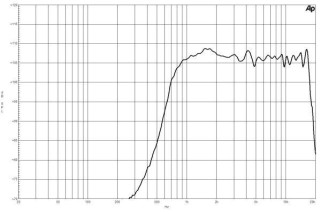

| Frequency Range | 1 kHz - 17 kHz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Inductance | 0.12 mH |
| Diaphragm Material | Polyimide |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 60 W |
| Sensitivity | 106.5 dB |
| Recommended Crossover | 2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.35 T |

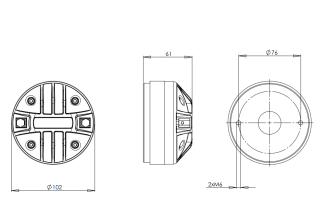

| Mounting and Shipping Info Two M6 holes 180° on 76 mm (3 in) diameter |
|
| Overall Diameter | 102 mm (4 in) |
| Net Weight | 1.7 kg (3.75 lb) |
| Shipping Weight | 1.73 kg (3.81 lb) |
| Depth | 61 mm (2.4 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 105x105x65 mm (4.13x4.13x2.56 in) |
DRV1808
7 Articoli
Scheda dati
- Pollici
- 1"
