Features
☑ 100 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Titanium diaphragm
☑ 1200 - 18000 Hz response
☑ 106 dB sensitivity
☑ Compact Neodymium magnet assembly
☑ Shorting copper cap for extended HF response

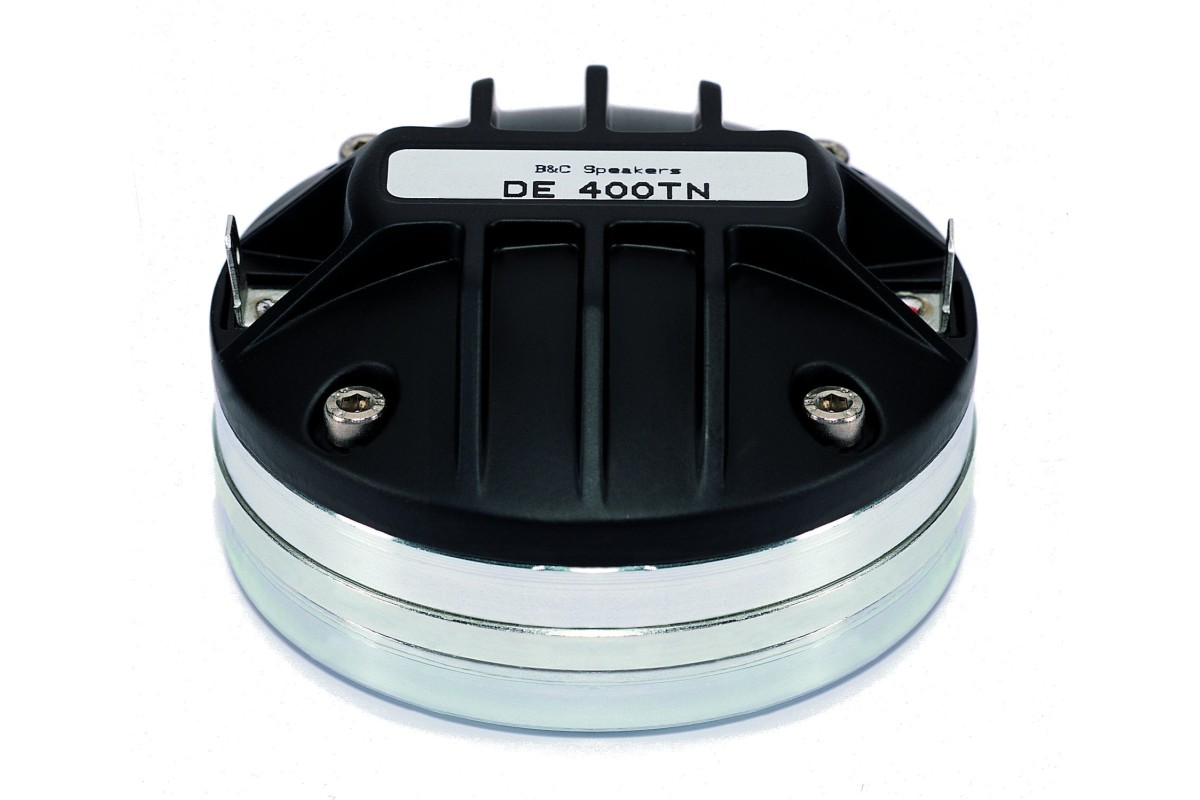

B&C DE400TN Driver a Compressione 1"
142,01 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 100 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Titanium diaphragm
☑ 1200 - 18000 Hz response
☑ 106 dB sensitivity
☑ Compact Neodymium magnet assembly
☑ Shorting copper cap for extended HF response
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |
| Minimum Impedance | 7.7 Ω |
| Continuous Power Handling | 100 W |
| Frequency Range | 1.2 kHz - 18 kHz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Inductance | 0.11 mH |
| Diaphragm Material | Titanium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 50 W |
| Sensitivity | 106 dB |
| Recommended Crossover | 1.5 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |

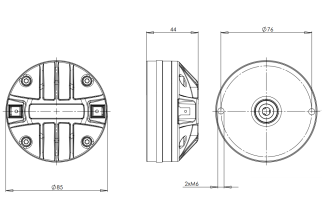

| Mounting and Shipping Info Two M6 holes 180° on 76 mm (3 in) diameter |
|
| Overall Diameter | 85 mm (3.3 in) |
| Net Weight | 0.86 kg (1.88 lb) |
| Shipping Weight | 0.89 kg (1.95 lb) |
| Depth | 44 mm (1.7 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 105x105x65 mm (4.13x4.13x2.56 in) |
DRV400TN8
Scheda dati
- Pollici
- 1"
