Features
☑ 140 W continuous program power capacity
☑ 1" horn throat diameter
☑ 51 mm (2 in) aluminium voice coil
☑ Titanium diaphragm
☑ 1000 - 17000 Hz response
☑ 108 dB sensitivity

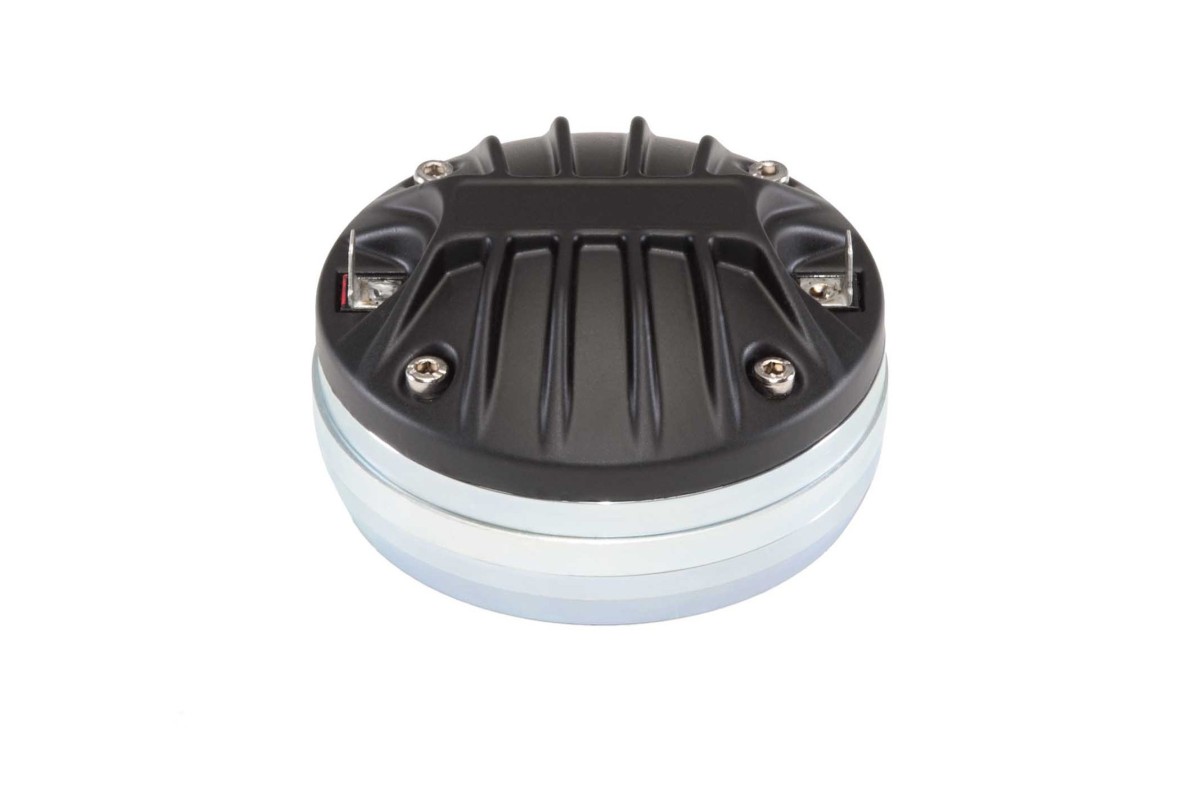

B&C DE550TN Driver a Compressione 1"
192,52 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 140 W continuous program power capacity
☑ 1" horn throat diameter
☑ 51 mm (2 in) aluminium voice coil
☑ Titanium diaphragm
☑ 1000 - 17000 Hz response
☑ 108 dB sensitivity
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |
| Minimum Impedance | 8.4 Ω |
| Continuous Power Handling | 140 W |
| Frequency Range | 1 kHz - 17 kHz |
| Voice Coil Diameter | 51 mm (2 in) |
| Inductance | 0.12 mH |
| Diaphragm Material | Titanium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 70 W |
| Sensitivity | 108 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 2 T |
| Mounting and Shipping Info Two M6 holes 180° on 76 mm (3 in) diameter |
|
| Overall Diameter | 92 mm (3.62 in) |
| Net Weight | 1.17 kg (2.58 lb) |
| Shipping Weight | 1.2 kg (2.65 lb) |
| Depth | 49 mm (1.93 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 105x105x65 mm (4.13x4.13x2.56 in) |
DRV550TN8
0 Articolo
Scheda dati
- Pollici
- 1"
