Features
☑ 220 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 75 mm (3 in) aluminium voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 107.5 dB sensitivity
☑ Shorting copper cap for extended HF response

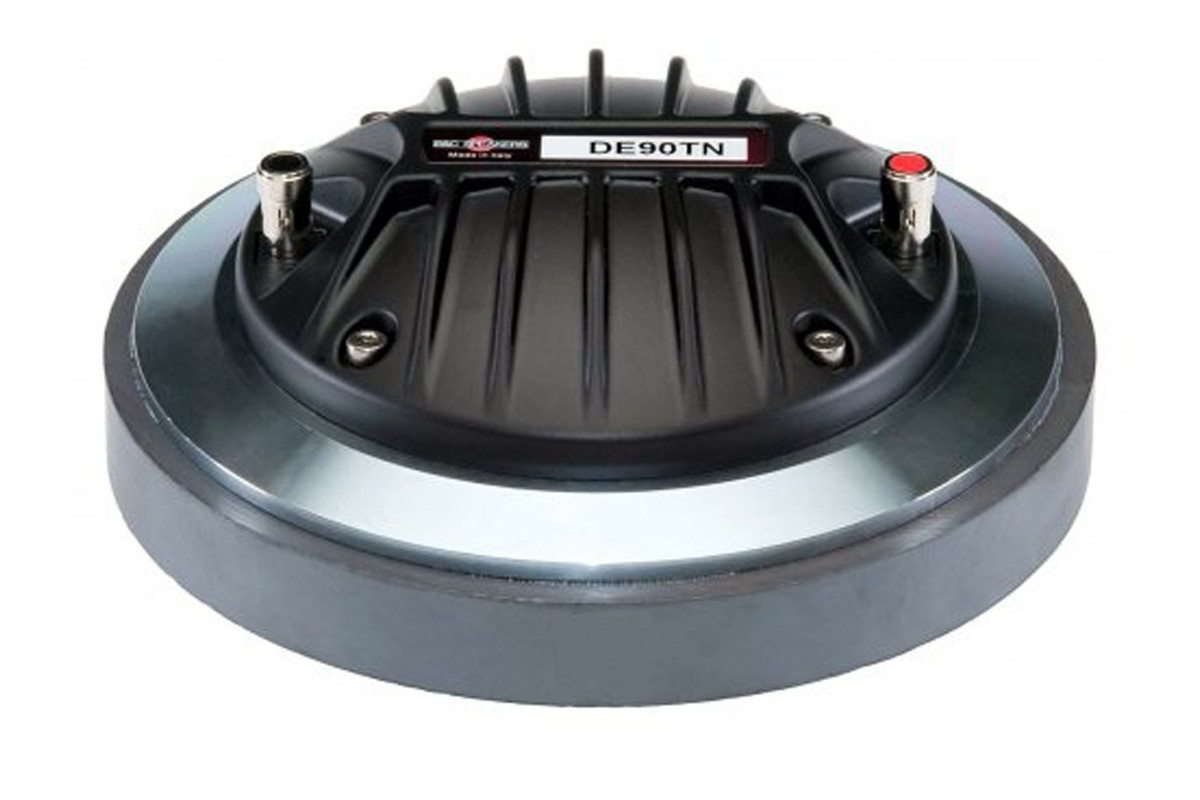

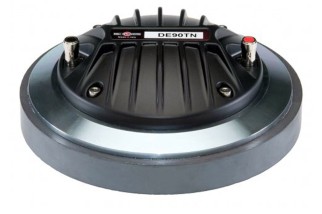

B&C DE90TN
226,92 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 220 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 75 mm (3 in) aluminium voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 107.5 dB sensitivity
☑ Shorting copper cap for extended HF response
close
| Specifications | |
|---|---|
| Throat Diameter | 36 mm (1.4 in) |
| Minimum Impedance | 8.3 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 0.5 kHz - 18 kHz |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 110 W |
| Sensitivity | 107.5 dB |
| Recommended Crossover | 1 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.8 T |

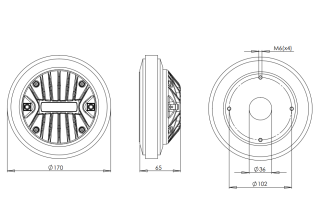

| Mounting and Shipping Info Four M6 holes 90° on 102 mm (4 in) diameter |
|
| Overall Diameter | 170 mm (6.7 in) |
| Net Weight | 4.4 kg (9.7 lb) |
| Shipping Weight | 4.52 kg (9.96 lb) |
| Depth | 65 mm (2.5 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 190x190x80 mm (7.48x7.48x3.15 in) |
DRV090TN8
Scheda dati
- Pollici
- 1.4"
Nuovo
