Features
☑ 220 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 75 mm (3 in) aluminium voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 108 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap

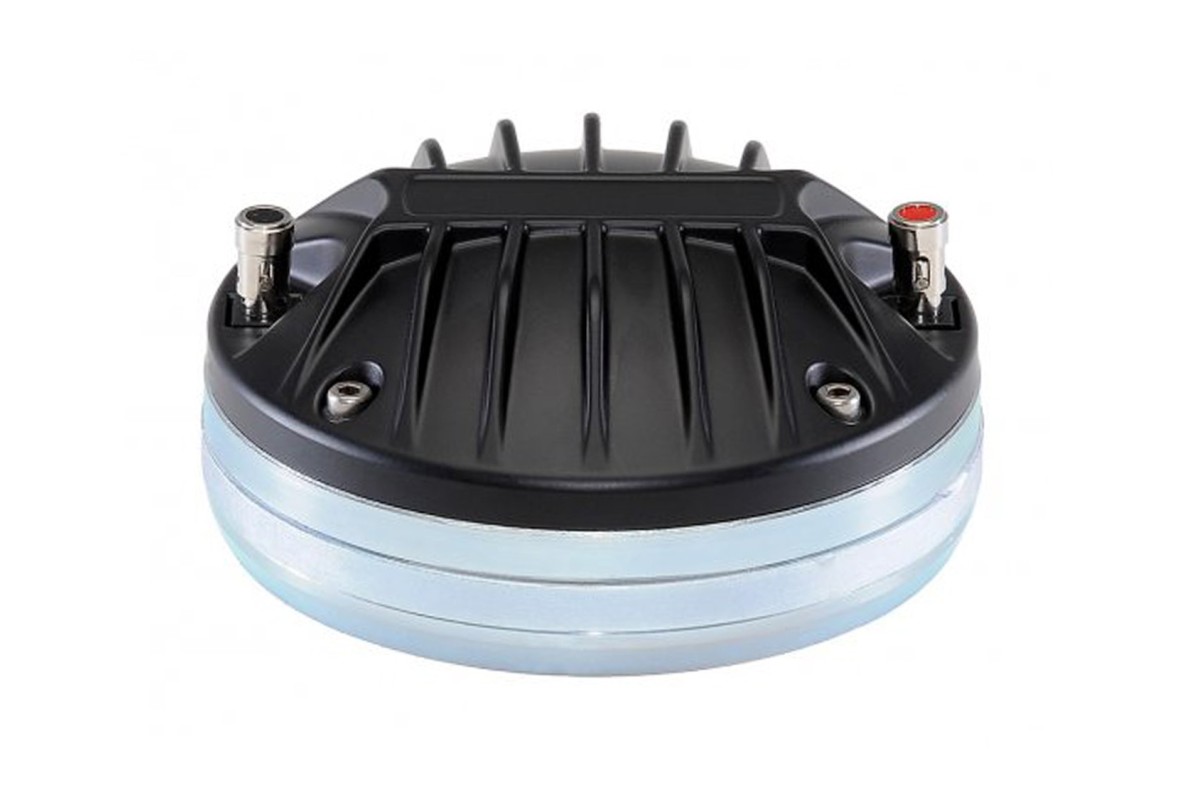

B&C DE880TN
325,74 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 220 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 75 mm (3 in) aluminium voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 108 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap
close
| Specifications | |
|---|---|
| Throat Diameter | 36 mm (1.4 in) |
| Minimum Impedance | 8.1 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 0.5 kHz - 18 kHz |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.1 mH |
| Diaphragm Material | Titanium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 110 W |
| Sensitivity | 108 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.85 T |

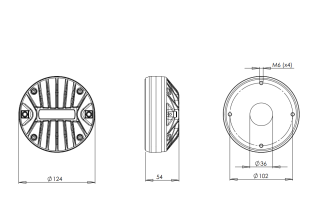

| Mounting and Shipping Info Four M6 holes 90° on 102 mm (4 in) diameter |
|
| Overall Diameter | 124 mm (4.9 in) |
| Net Weight | 2.15 kg (4.74 lb) |
| Shipping Weight | 2.2 kg (4.85 lb) |
| Depth | 54 mm (2.13 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 140x135x62 mm (5.51x5.31x2.44 in) |
DRV880TN8
Scheda dati
- Pollici
- 1.4"
