Features
☑ 140 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 65 mm (2.5 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 18000 Hz response
☑ 109 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap

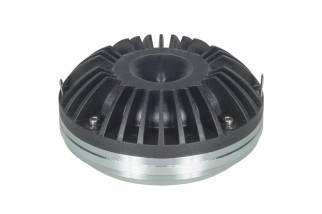

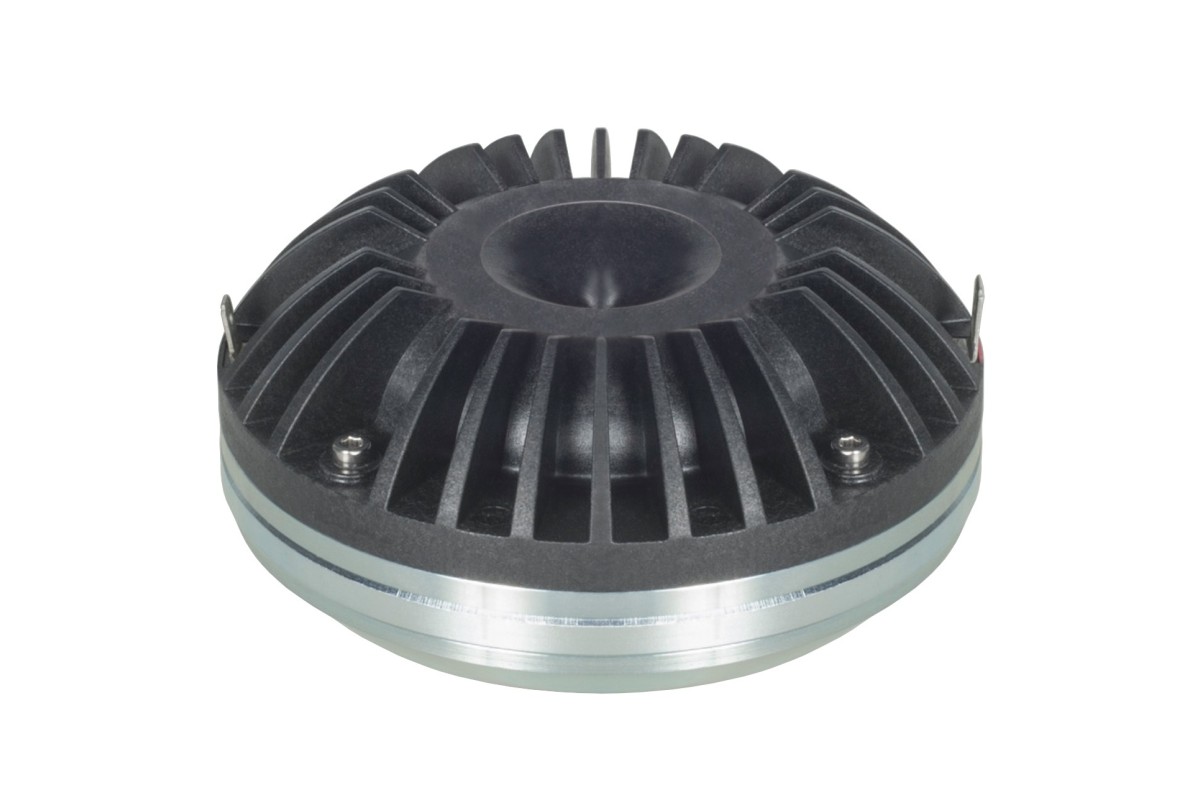

B&C DE640U
241,56 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 140 W continuous program power capacity
☑ 1.4" horn throat diameter
☑ 65 mm (2.5 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 18000 Hz response
☑ 109 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap
close
| Specifications | |
|---|---|
| Throat Diameter | 36 mm (1.4 in) |
| Minimum Impedance | 7.6 Ω |
| Continuous Power Handling | 140 W |
| Frequency Range | 1 kHz - 18 kHz |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Polyimide |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 70 W |
| Sensitivity | 109 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.95 T |

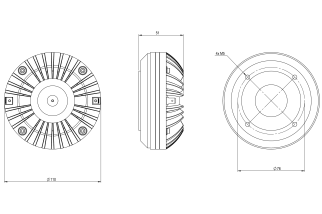

| Mounting and Shipping Info Four M6 holes 90° on 76 mm (3 in) diameter |
|
| Overall Diameter | 110 mm (4.33 in) |
| Net Weight | 1.4 kg (3.09 lb) |
| Depth | 51 mm (2.01 in) |
DRV640U8
Scheda dati
- Pollici
- 1.4"
