Features
☑ 220 W continuous program power capacity
☑ 2" horn throat diameter
☑ 75 mm (3 in) aluminum voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 107.5 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap

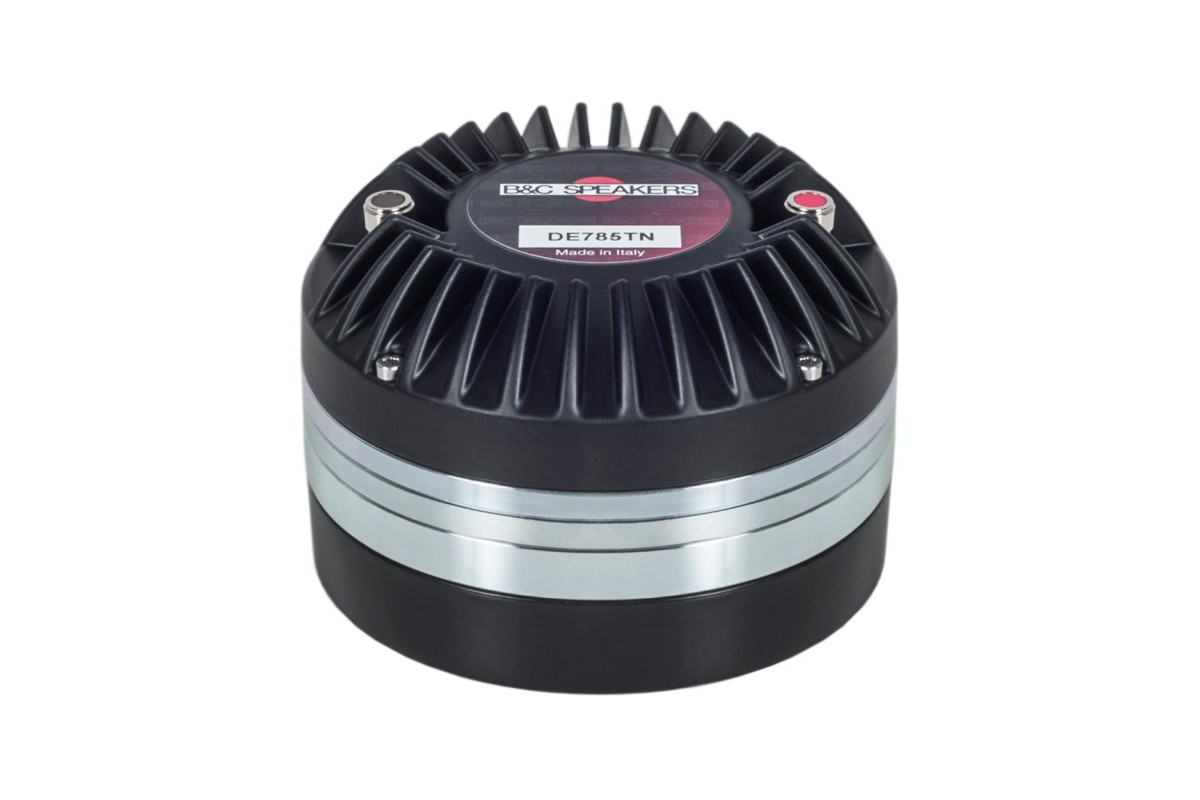

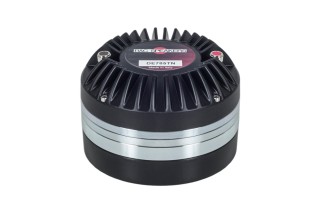

B&C DE785TN
267,18 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 220 W continuous program power capacity
☑ 2" horn throat diameter
☑ 75 mm (3 in) aluminum voice coil
☑ Titanium diaphragm
☑ 500 - 18000 Hz response
☑ 107.5 dB sensitivity
☑ Neodymium magnet assembly with shorting copper cap
close
| Specifications | |
|---|---|
| Throat Diameter | 50 mm (2 in) |
| Minimum Impedance | 8.3 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 0.5 kHz - 18 kHz |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.17 mH |
| Diaphragm Material | Titanium |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 110 W |
| Sensitivity | 107.5 dB |
| Recommended Crossover | 1 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.95 T |

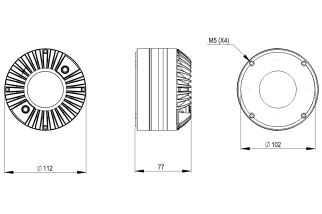

| Mounting and Shipping Info Four M5 holes 90° on 102 mm (4 in) diameter |
|
| Overall Diameter | 112 mm (4.41 in) |
| Net Weight | 1.75 kg (3.86 lb) |
| Shipping Weight | 1.82 kg (4.01 lb) |
| Depth | 77 mm (3.03 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 135x135x93 mm (5.31x5.31x3.66 in) |
DRV785TN8
Scheda dati
- Pollici
- 2"
