Features
☑ Line Array optimized Waveguide with DE400 driver
☑ 140° max horizontal coverage
☑ 100 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1200 - 18000 Hz response
☑ 108.5 dB sensitivity
☑ Compact Neodymium magnet assembly

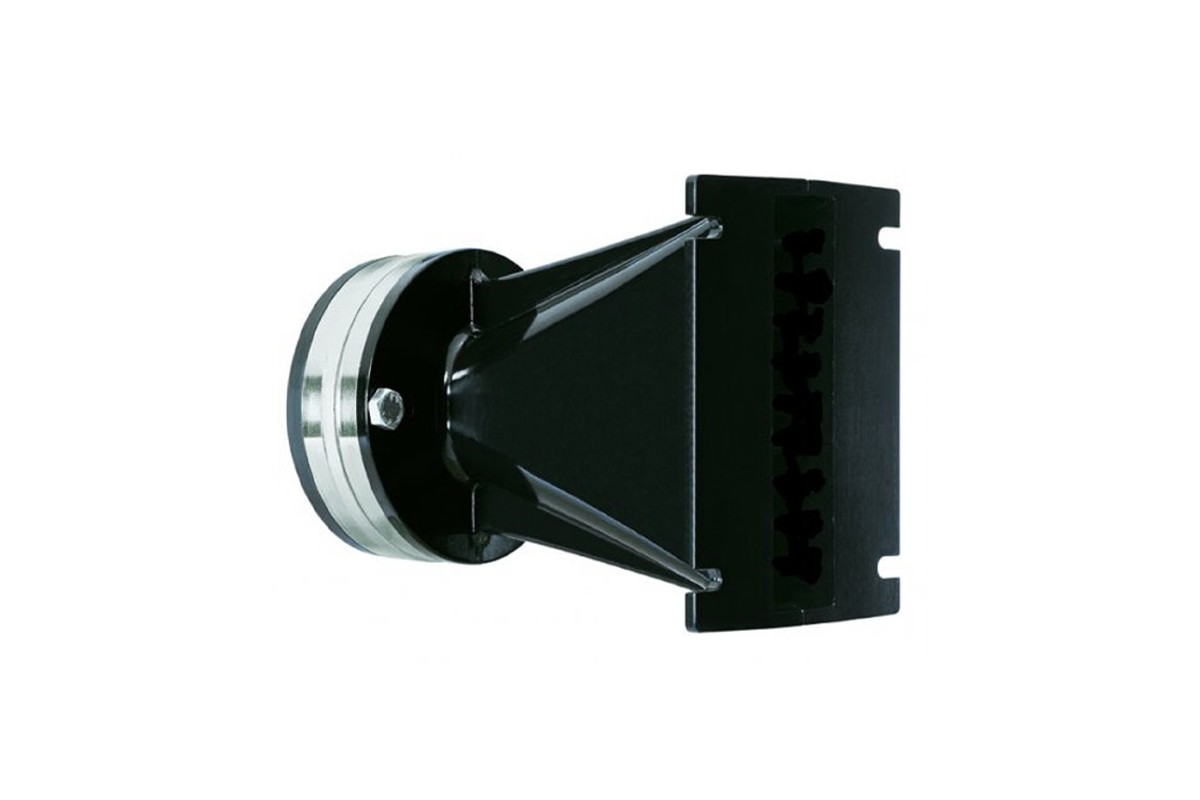

B&C WG400
193,25 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ Line Array optimized Waveguide with DE400 driver
☑ 140° max horizontal coverage
☑ 100 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1200 - 18000 Hz response
☑ 108.5 dB sensitivity
☑ Compact Neodymium magnet assembly
close
| SPECIFICATIONS | |
|---|---|

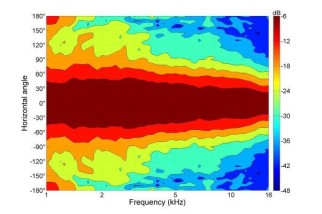

| Horizontal Coverage | 140 ° Max |
| Active Radiating Factor | 92.5 % |
| Recommended Crossover1 | 1.5 kHz |
| Waveguide Material | Cast Aluminium |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.7 Ω |
| Nominal Power Handling2 | 50 W |
| Continuous Power Handling3 | 100 W |
| Sensitivity4 | 108.5 dB |
| Frequency Range5 | 1.0 - 18.0 kHz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Winding Material | Aluminium |
| Diaphragm Material | Polyimide |
| Flux Density | 1.8 T |
| Magnet Material | Neodymium Ring |
| MOUNTING AND SHIPPING INFO | |
| Exit Size | 102x25 mm (4x1 in) |
| Driver Diameter | 86 mm (3.3 in) |
| Dimensions | 111x87x155 mm (4.4x3.5x6.1 in) |
| Net Weight | 1.3 kg (2.9 lb) |
| Shipping Units | 4 |
| Shipping Weight | 5.8 kg (12.79 lb) |
| Shipping Box | 265x245x240 mm (10.43x9.65x9.45 in) |
| 1. 12 dB/oct. Or higher slope high-pass filter. | |
| 2. 2 hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance. | |
| 3. Power on Continuous Program is defined as 3 dB greater then the Nominal rating. | |
| 4. Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance. | |
| 5. Waveguide mounted on 90°x10° bell horn | |
