Features
☑ Line Array optimized Waveguide with DE400 driver

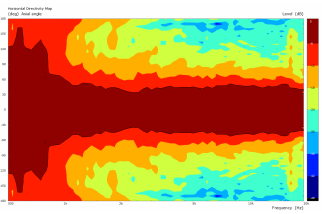

☑ 140° max horizontal coverage
☑ 100 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1200 - 18000 Hz response
☑ 108.5 dB sensitivity
☑ Compact Neodymium magnet assembly

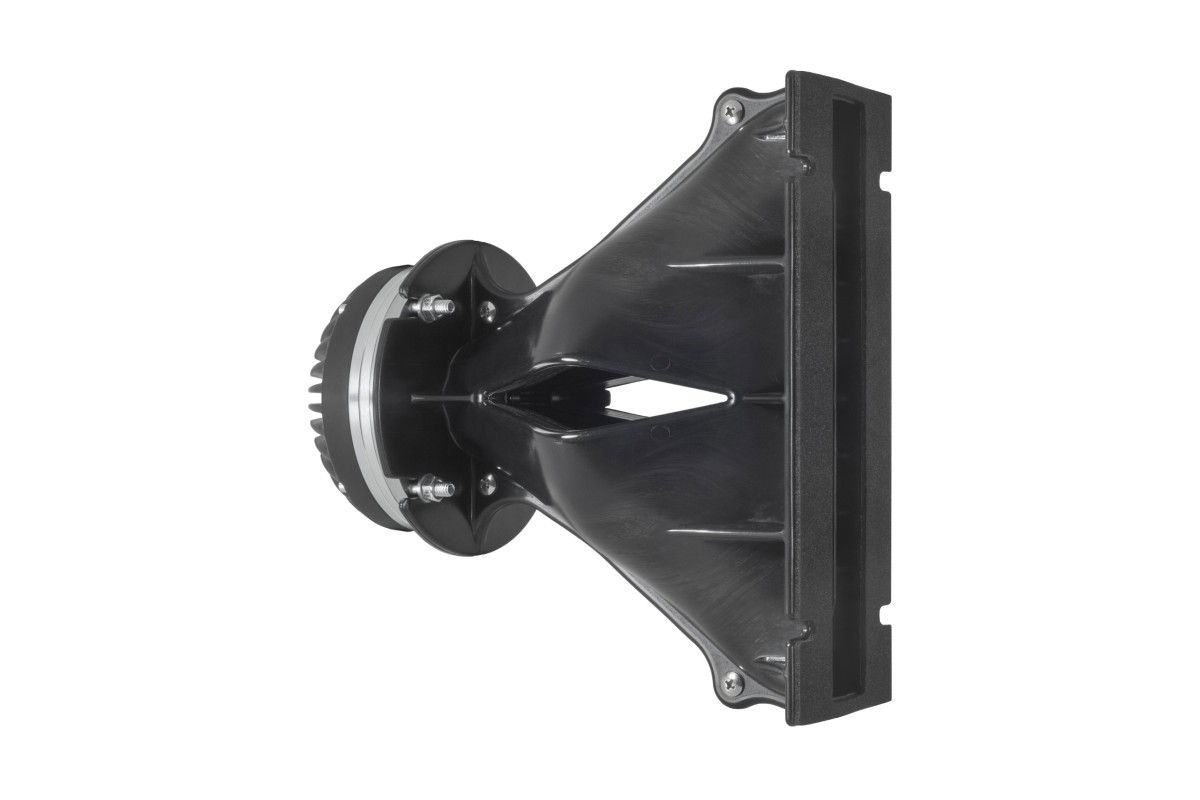

B&C WG148-780TN
335,26 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ Line Array optimized Waveguide with DE400 driver
☑ 140° max horizontal coverage
☑ 100 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1200 - 18000 Hz response
☑ 108.5 dB sensitivity
☑ Compact Neodymium magnet assembly
close
| Specifications Horn unit | |
|---|---|
| Nominal Impedance | 8 Ω |
| Horizontal Coverage | 120 ° Max |
| Active Radiating Factor | 93.3 % |
| Specifications HF unit | |
| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 500 kHz - 18 kHz |
| Voice Coil Diameter | 75 mm (3 in) |
| Flux Density | 1.95 T |
| Nominal Power Handling | 110 W |
| Sensitivity | 107.6 dB |
| Recommended Crossover | 1 kHz |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Mounting and Shipping Info | |
| Recommended hardware for horn mounting: four M6x14 screws | |
| Exit Size | 225x25.6 mm (8.9x1 in) |
| Driver Diameter | 112 mm (4.41 in) |
| Net Weight | 2.38 kg (5.25 lb) |

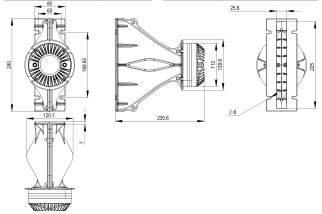

| Dimensions | 230.6x240x120.1 mm (9.08x9.45x4.73 in) |
WGX148780TN8
Scheda dati
- Pollici
- 1.4
